1059280000 - 10.16mm PCB Terminal, 76A, 2 Poles, Black Finish (Pack of 20)

1059280000 - 10.16mm PCB Terminal, 76A, 2 Poles, Black Finish (Pack of 20)

SKU: SKU: 1059280000   Download PDF

Select a Variant:
  • 1059280000 - 10.16mm PCB Terminal, 76A, 2 Poles, Black Finish (Pack of 20)
Qty:
Regular price Now $103.20   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $103.20 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this printed circuit board terminal, meticulously engineered for various electrical applications With a compact 1016 mm pitch and a 2-pole design, it accommodates a maximum current of 76 A and voltage up to 1,000 V The terminal features a solder pin measuring 32 mm in length and can securely clamp wires up to 16 mm² in diameter Finished in a tinned black coating, it arrives in a convenient box, making it easy to store and manage.

Features and Benefits:

    •RoHS compliant without exemption.

    •Designed for THT solder connection.

    •Touch-safe protection according to safety standards.

    •Net weight of 18.04 g.

    •Suitable for various wire connections, including stranded and solid wires.

Specifications:

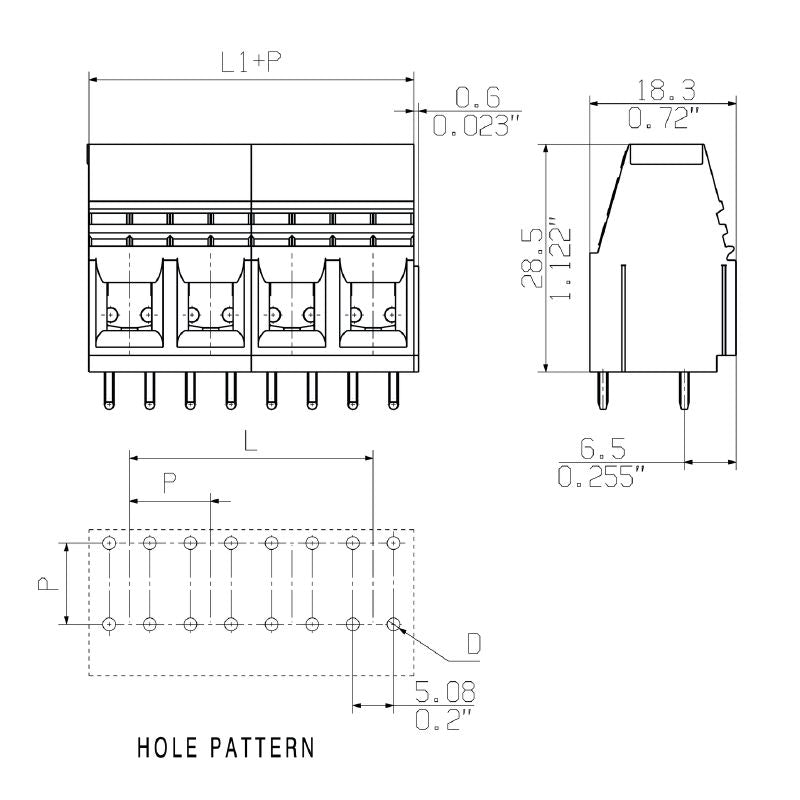

 Pitch in mm (P) 10.16 mm
 Number of poles 2
 Solder pin length (l) 3.2 mm
 Clamping screw M 4
 Tightening torque, min. 1.2 Nm
 Tightening torque, max. 2.2 Nm
 Protection degree IP20
 Wire connection method Clamping yoke connection
 Operating temperature, min. -50 °C
 Operating temperature, max. 120 °C
 Volume resistance 0.50 mΩ
 Material Wemid (PA)
 Insulating material group I
 UL voltage rating 300 V

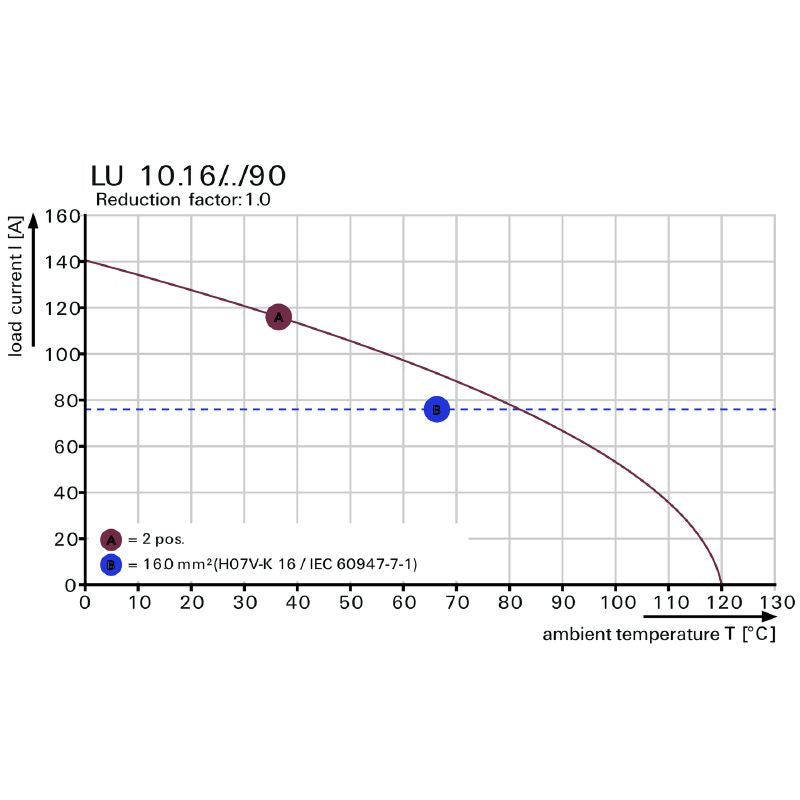

 Rated current 65 A
