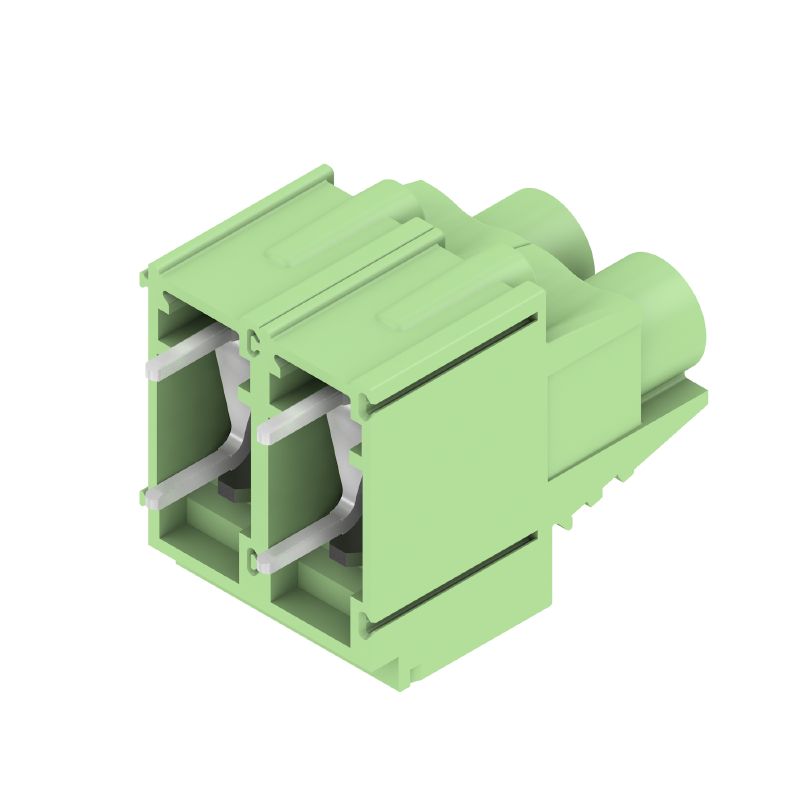

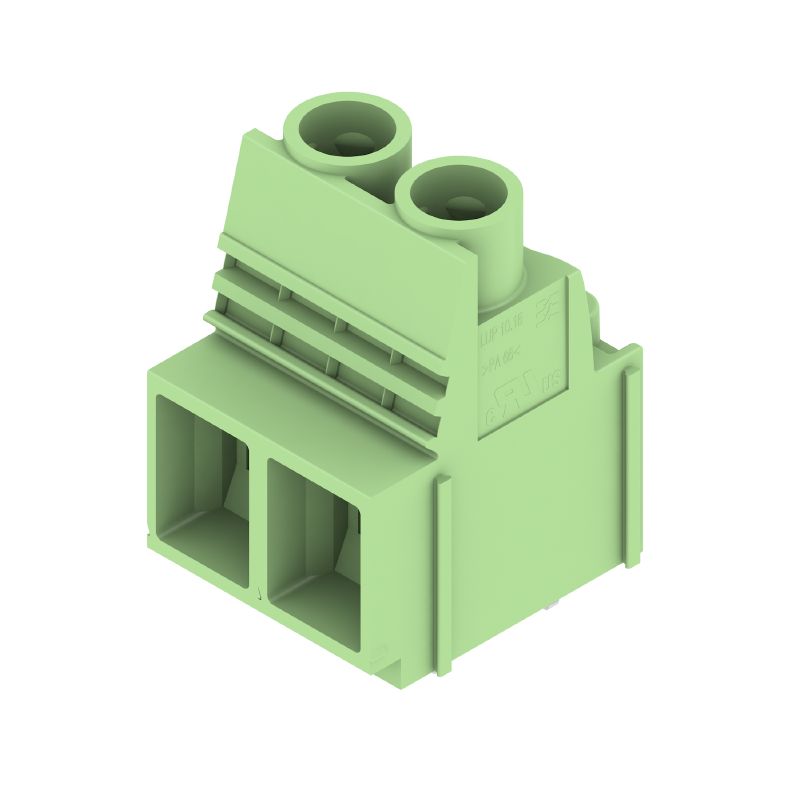

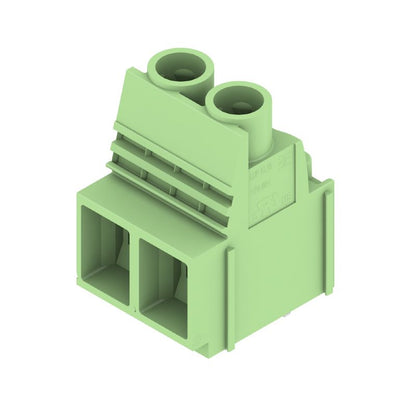

2014230000 - 10.16mm PCB Terminal, Tinned 2-Pole, 90° Connection (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity solutions with the LUP 1016/02/90 50SN GN BX printed circuit board terminal This component features a 1016 mm pitch and supports two poles with a clamping capability of up to 16 mm² It is equipped with a 5 mm long solder pin and showcases a tinned surface in an attractive pale green hue Designed for standard THT soldering, it utilizes a clamping yoke connection method and directs the conductor outlet at a right angle of 90°.

Compatible with various conductor sizes, this terminal also adheres to RoHS standards, ensuring it meets environmental compliance requirements.

Features and Benefits:

•Pale green color.

•Clamping yoke connection.

•THT solder connection.

•Designed for a maximum of 12 adjacent poles per row.

•Compatible with different conductor cross-sections including fine-wired and stranded options.

Specifications:
