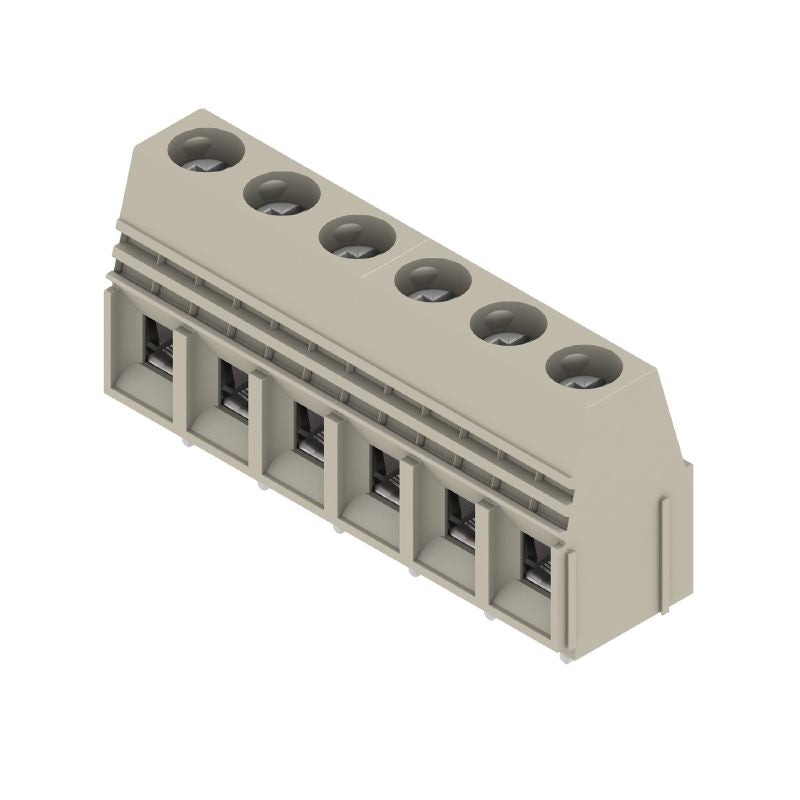

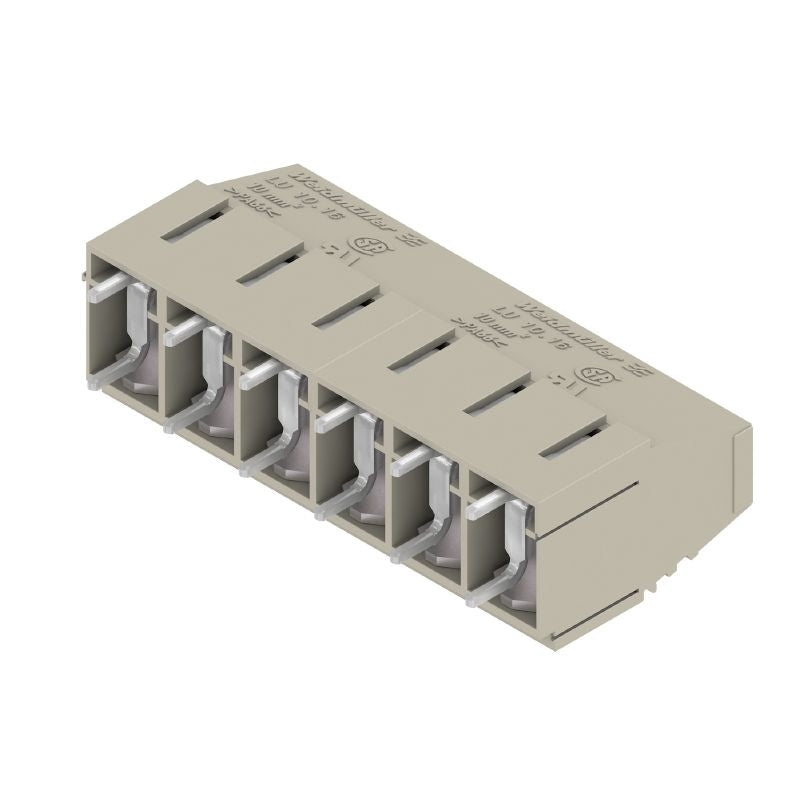

9956410000 - 10.16mm Terminal Block 6 Poles, 4.5mm Pin, Pebble Grey (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your circuit board designs with this premium terminal block, specifically crafted for printed circuit boards with a 1016 mm pitch Featuring six poles and a 90° connection, it ensures reliable performance The solder pin measures 45 mm in length, while the elegant pebble grey finish offers a modern touch to your projects With a clamping yoke connection capable of accommodating wires up to 16 mm², it’s both functional and versatile.

Each box contains 20 units, making it convenient for larger installations or repairs.

Features and Benefits:

•Compliant with RoHS standards.

•IP20 protection degree.

•Clamping screw is M 4.

•Touch-safe protection according to DIN VDE standards.

•Adjustable tightening torque from 1.2 Nm to 2.2 Nm.

•Limitation on conductor types and sizes for connection.

Specifications:
