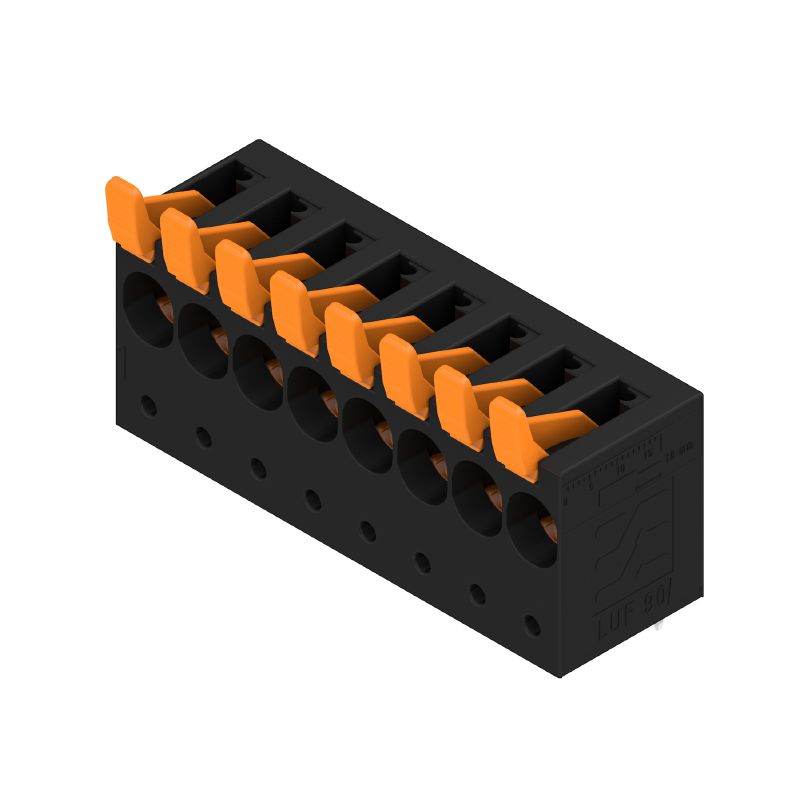

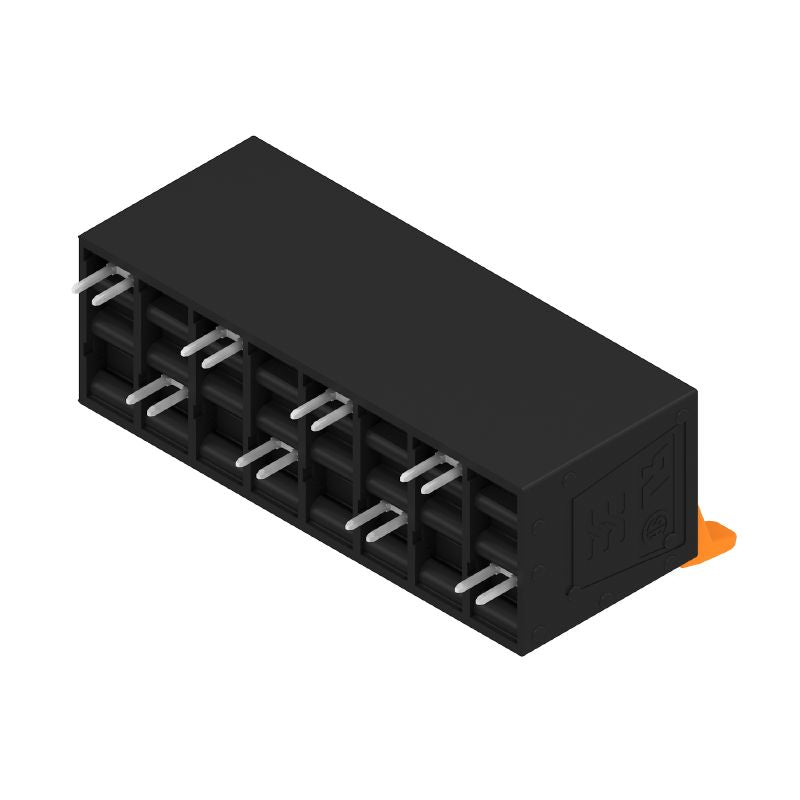

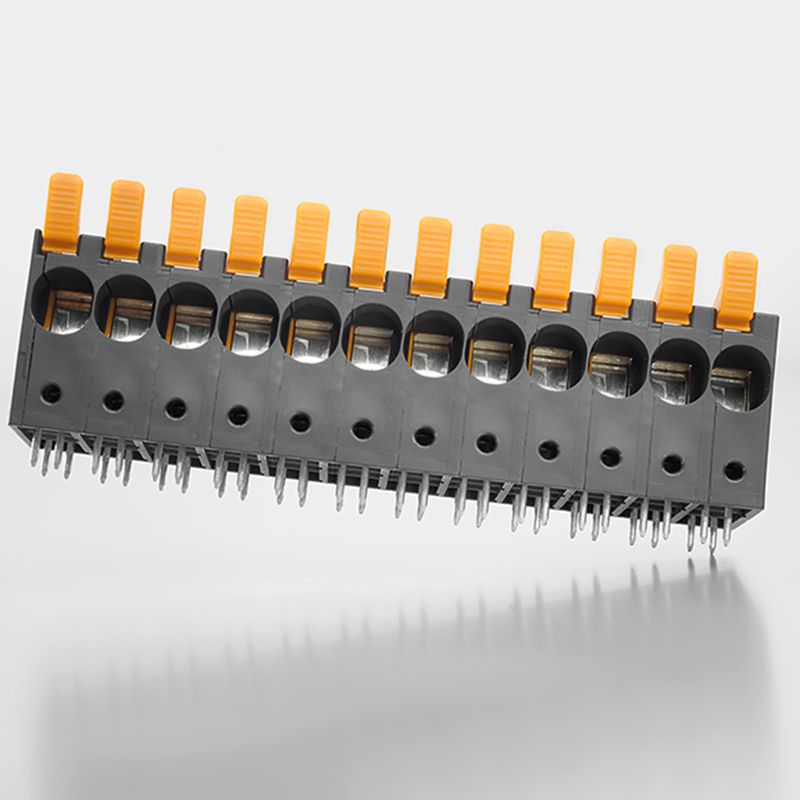

2453750000 - Black 10mm PCB Terminal with 8 Poles & 5mm Pins (Pack of 10)

2453750000 - Black 10mm PCB Terminal with 8 Poles & 5mm Pins (Pack of 10)

SKU: SKU: 2453750000   Download PDF

Select a Variant:
  • 2453750000 - Black 10mm PCB Terminal with 8 Poles & 5mm Pins (Pack of 10)
Qty:
Regular price Now $244.12   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $244.12 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this printed circuit board terminal, measuring 1000 mm in width Featuring 8 poles, it supports a clamping range that spans from 05 mm² to 16 mm², making it an ideal choice for various applications Engineered for push-in connections, it includes an actuator for easy use This terminal comes in a classic black finish and has a solder pin length of 5 mm It adheres to multiple standards, including IEC, UL, and RoHS compliance, ensuring wide-ranging compatibility and reliability.

Features and Benefits:

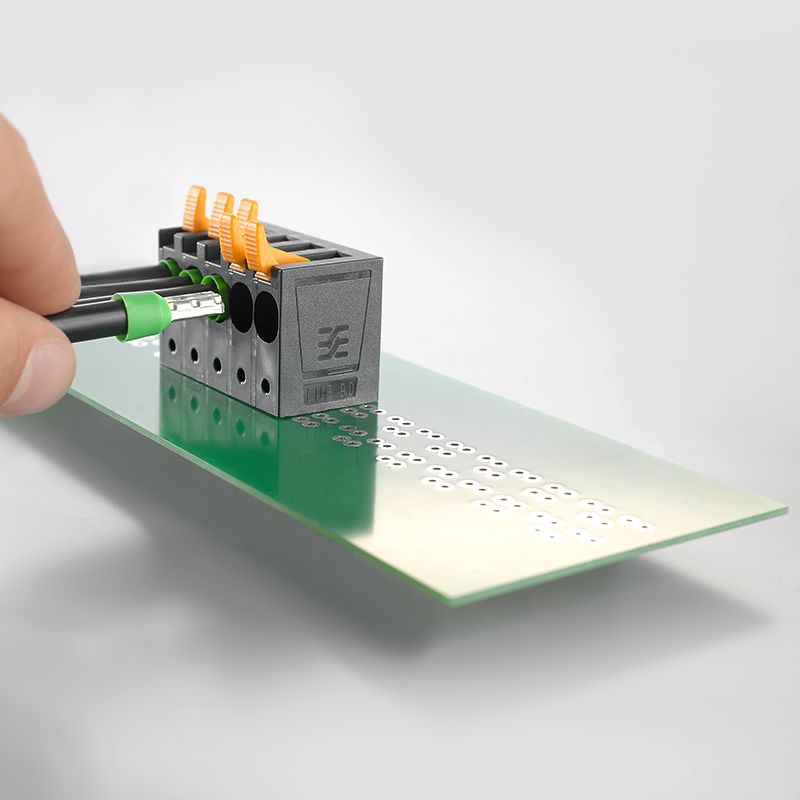

    •Push-in wire connection method.

    •Suitable for various conductor types including solid and stranded.

    •Touch-safe according to DIN standards.

Specifications:

 Rated Voltage (IEC) 1000 V

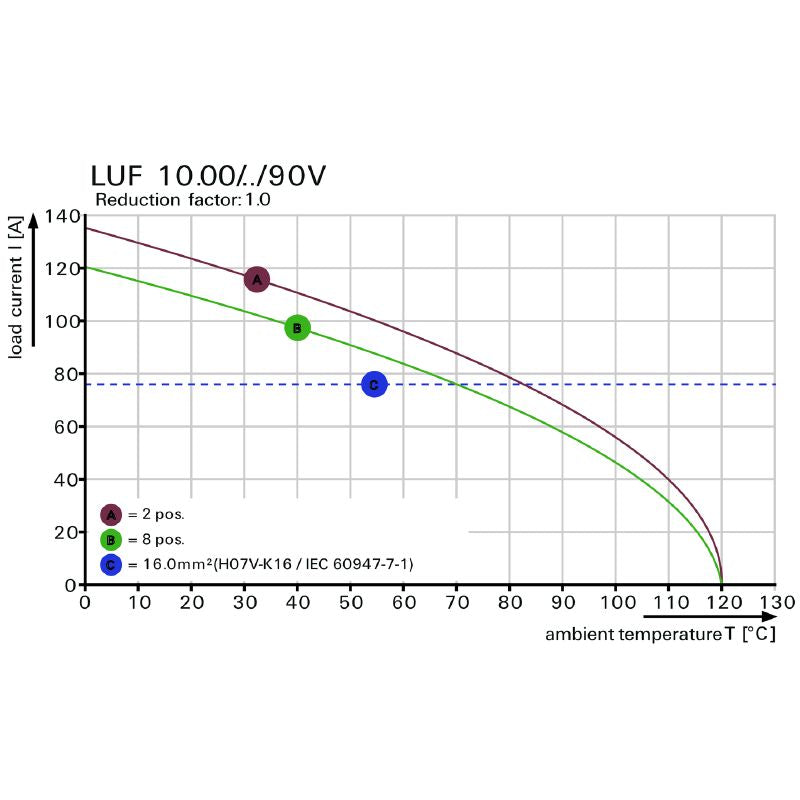

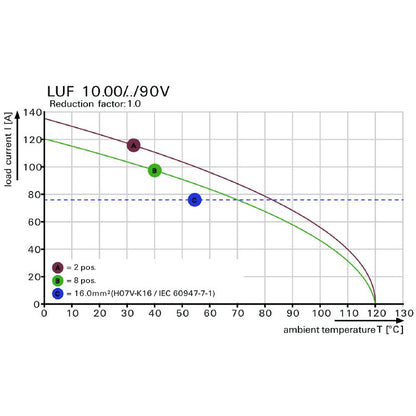

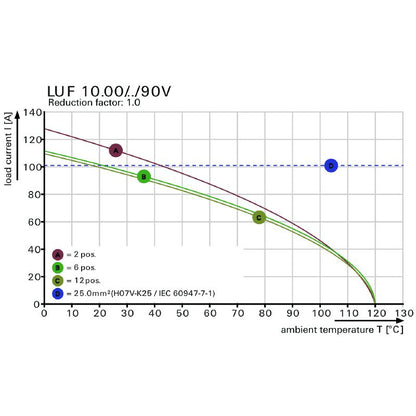

 Rated Current (IEC) 92 A
 Solder Pin Length 5 mm
 Insulating Material Wemid (PA)

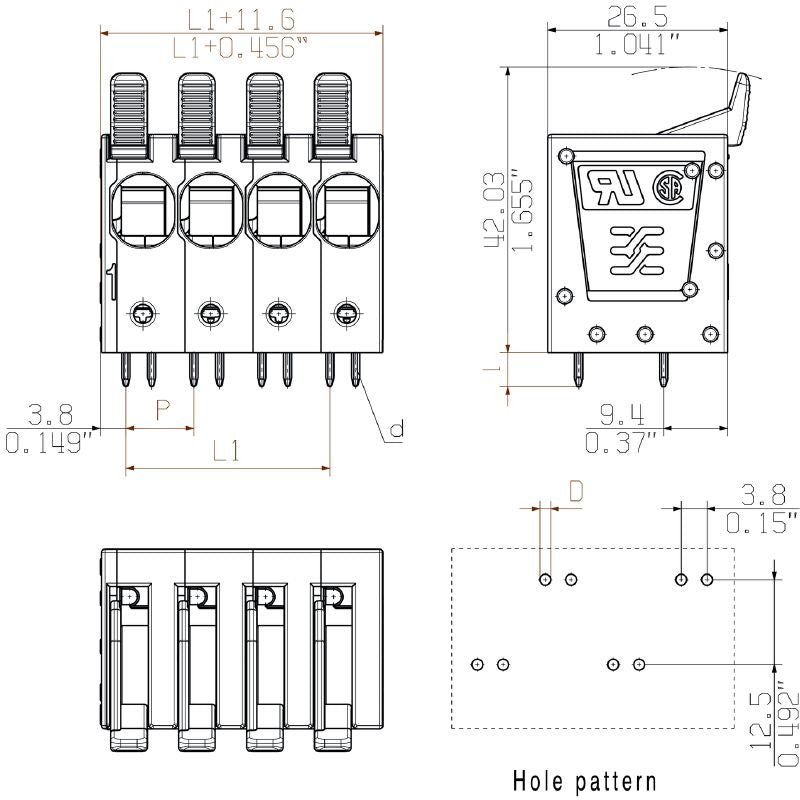

 Width 81.58 mm
 Depth 26.45 mm
 Height 47.03 mm
 Protection Degree IP20
 Operating Temperature Range -40 °C to 120 °C
 Clamping Range (max) 16 mm²
 Clamping Range (min) 0.5 mm²
 Storage Temperature Range -40 °C to 70 °C
