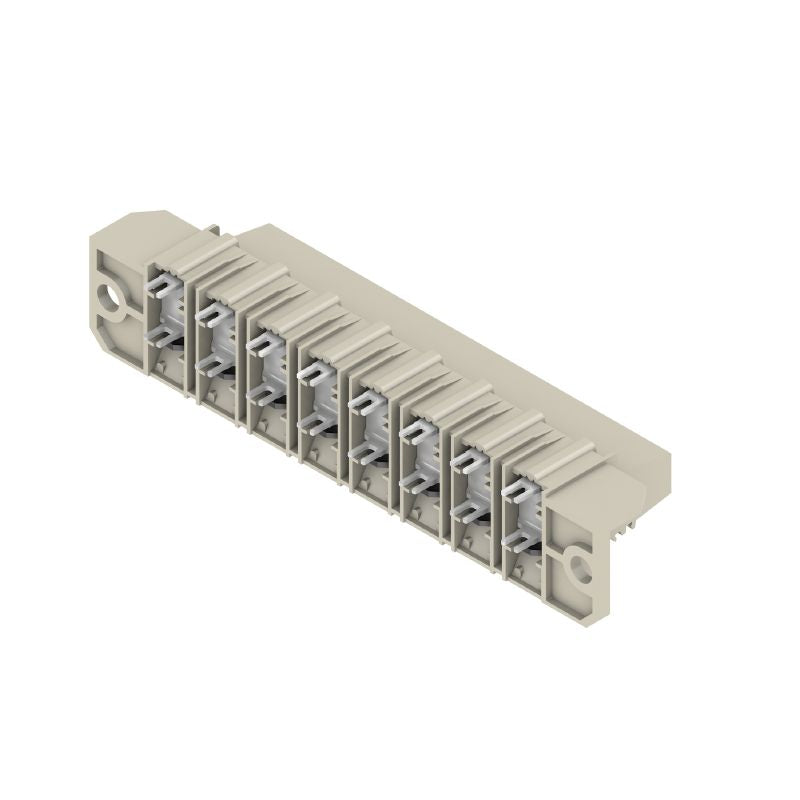

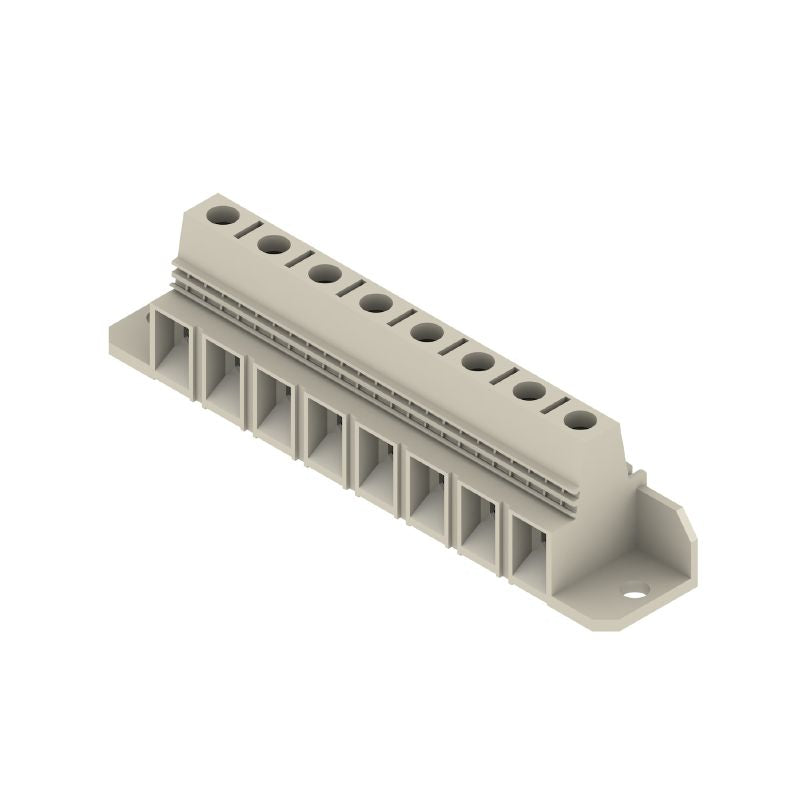

1783750000 - 15mm Spacing PCB Terminal, 8 Poles, 90° Configuration (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This innovative printed circuit board terminal features a well-organized layout with a 1500 mm spacing and consists of 8 poles arranged in a 90° configuration Each terminal is equipped with a tinned solder pin measuring 45 mm in length Presented in a versatile pebble grey color, it utilizes a clamping yoke connection system, supporting a clamping range of up to 25 mm² The product is easily identifiable with the item number 1783750000 and adheres to important regulatory standards, including RoHS compliance without exemptions.

It is rated for voltages as high as 1000 V and can handle a maximum current of 101 A in accordance with IEC specifications.

Features and Benefits:

•THT solder connection.

•Easy integration with standard PCBs.

•Suitable for applications requiring PCB connections in power distribution systems.

Specifications:
