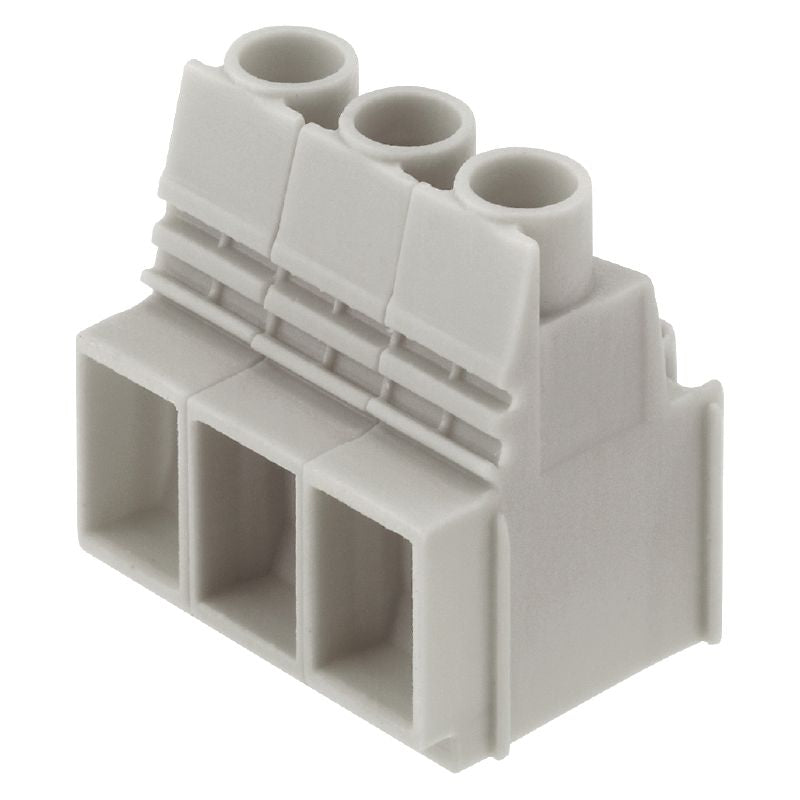

2463310000 - 36.5mm PCB Terminal with Clamping Yoke, RoHS Compliant (Pack of 20)

2463310000 - 36.5mm PCB Terminal with Clamping Yoke, RoHS Compliant (Pack of 20)

SKU: SKU: 2463310000   Download PDF

Select a Variant:
  • 2463310000 - 36.5mm PCB Terminal with Clamping Yoke, RoHS Compliant (Pack of 20)
Qty:
Regular price Now $290.60   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $290.60 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience reliable connectivity with this printed circuit board terminal, engineered for secure connections through a clamping yoke method Measuring 365 mm in height, this terminal accommodates conductor sizes with a maximum clamping range of 16 mm² Packaged in a convenient box, it meets RoHS compliance standards, making it a versatile choice for a variety of applications Its sturdy construction guarantees dependable performance across diverse environments and conditions.

Features and Benefits:

    •Suitable for a wide range of conductor section sizes, from 0.5 mm² to 16 mm².

    •THT solder connection method for easy PCB mounting.

    •High durability tested against various international standards.

    •Clamping yoke connection allows for secure contacts.

    •Touch-safe protection following relevant DIN standards.

Specifications:

 Number of poles 5
 Clamping range 0.5 - 16 mm²
 Rated voltage (IEC) 1000 V
 Rated current (IEC) 76 A
 Operating temperature, min. -50 °C
 Operating temperature, max. 120 °C
 Protection degree IP20
 Solder pin length 5 mm
 Max. adjacent poles per row 12
 Tightening torque, min. 1.2 Nm
 Tightening torque, max. 1.5 Nm
