1812230000 - 10.16mm Pitch PCB Terminals, 6 Poles, Pebble Grey (Pack of 20)

1812230000 - 10.16mm Pitch PCB Terminals, 6 Poles, Pebble Grey (Pack of 20)

SKU: SKU: 1812230000   Download PDF

Select a Variant:
  • 1812230000 - 10.16mm Pitch PCB Terminals, 6 Poles, Pebble Grey (Pack of 20)
Qty:
Regular price Now $318.16   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $318.16 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your electronic projects with these expertly designed printed circuit board terminals, featuring a 1016 mm pitch Each terminal includes 6 poles arranged at a 90-degree angle for versatile connectivity The tinned solder pins measure 45 mm in length, providing a reliable connection Finished in an elegant pebble grey color, these terminals utilize a clamping yoke connection and accommodate a maximum clamping range of 16 mm².

They are conveniently packaged in a sturdy box for easy storage and transport.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Insulating material is Wemid (PA).

    •Touch-safe protection according to DIN VDE standards.

    •Clamping yoke connection for secure wire attachment.

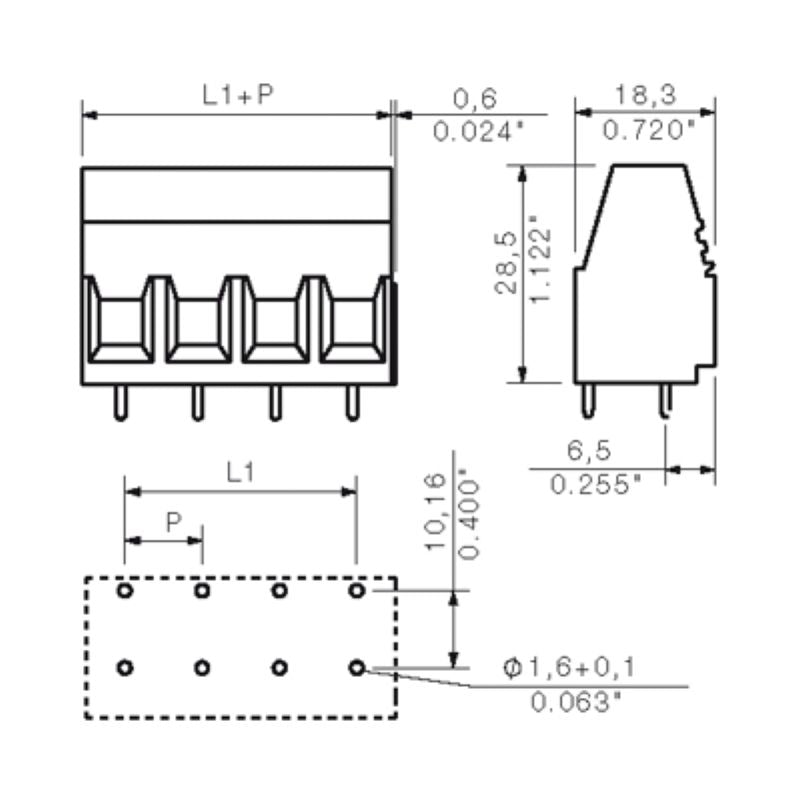

Specifications:

 Depth 18.3 mm
 Height 33 mm
 Width 60.96 mm
 Net weight 56.6 g
 Rated voltage (IEC) 1000 V

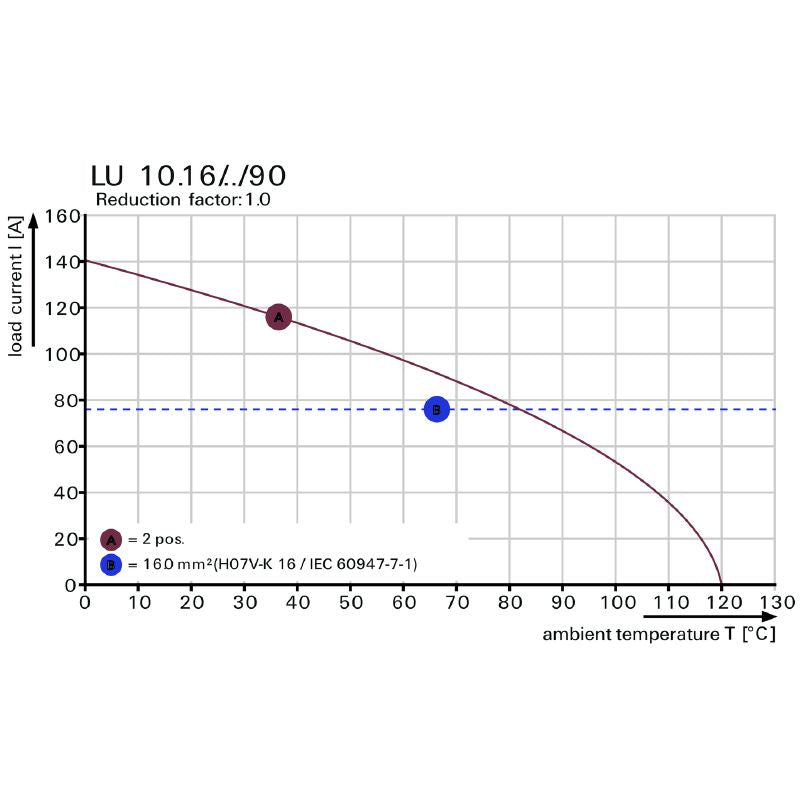

 Rated current 76 A
 Clamping range (max.) 16 mm²
 Pitch 10.16 mm
 Operating temperature (min.) -50 °C
 Operating temperature (max.) 120 °C
 Contact material Cu-alloy
 Insulating material group I
 UL 94 flammability rating V-0
