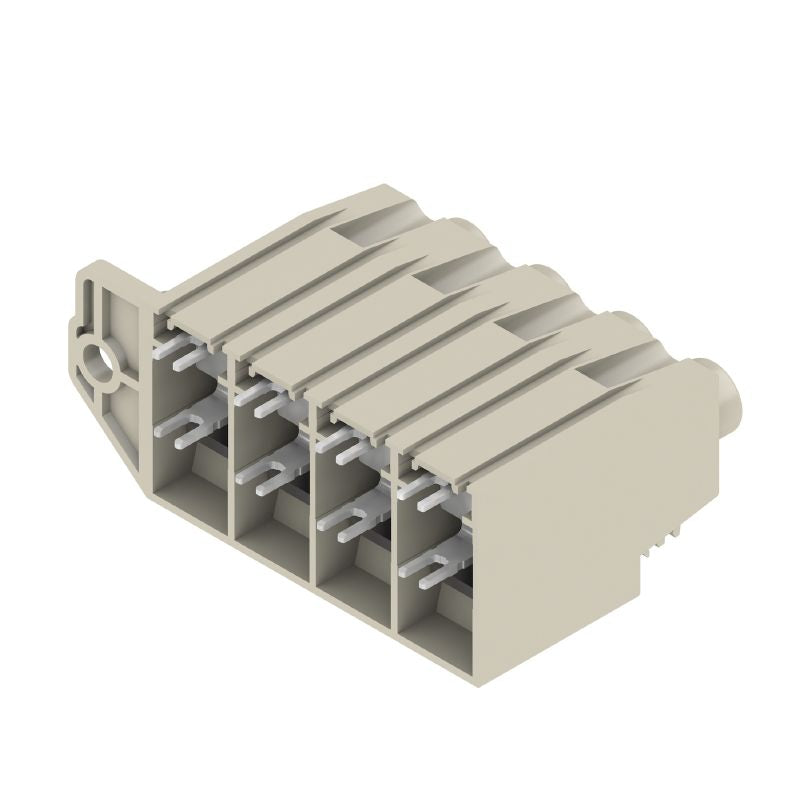

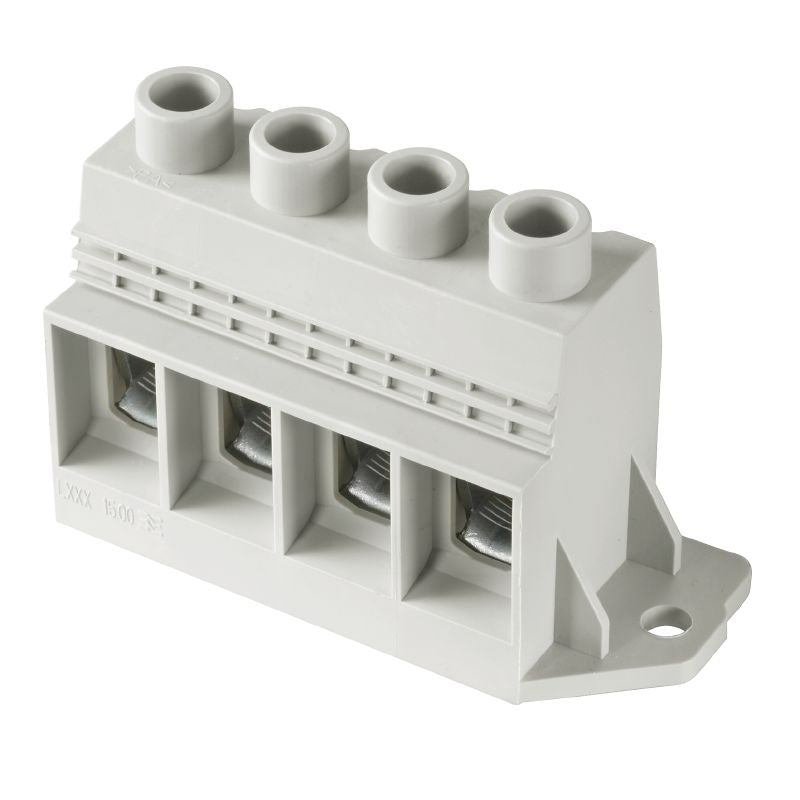

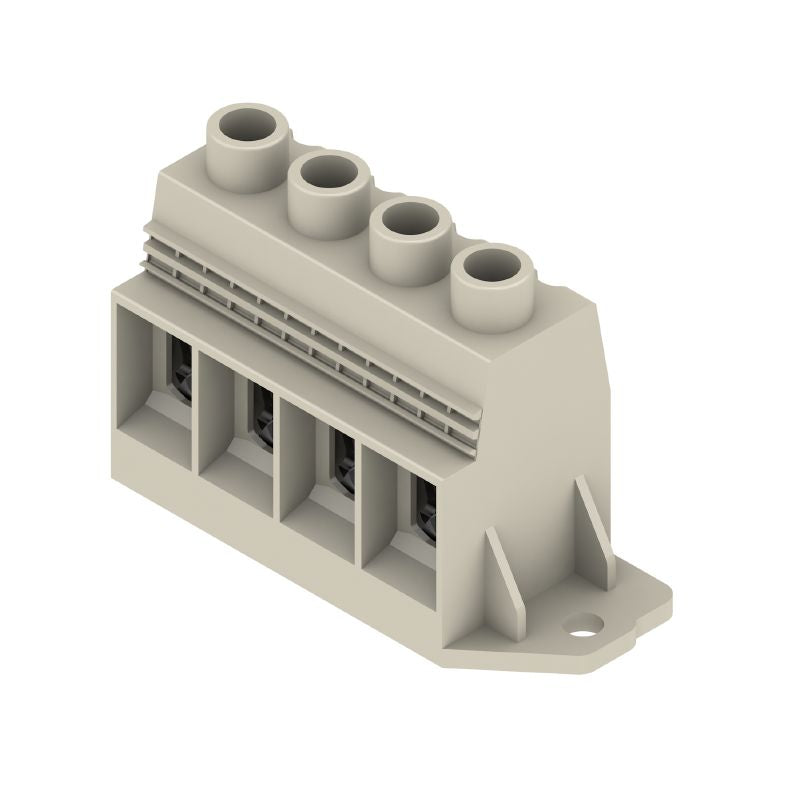

1047710000 - 56mm High PCB Terminal with 4 Poles, RoHS Compliant (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

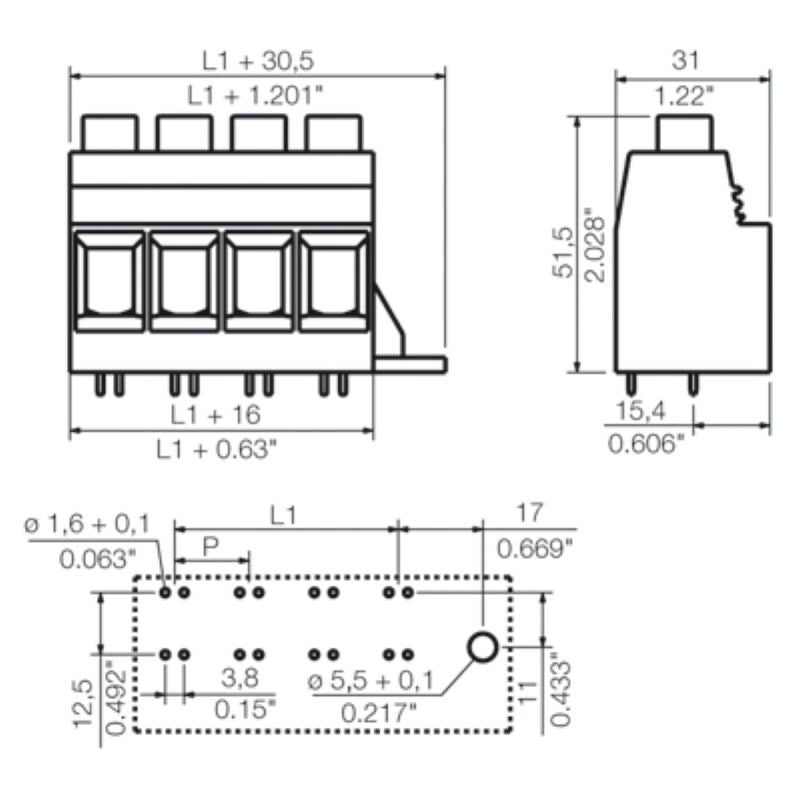

Introducing a versatile printed circuit board terminal, designed for optimal functionality With dimensions measuring 56 mm in height, 755 mm in width, and 31 mm in depth, this terminal features a robust configuration of four poles arranged at a 90° angle The tin-coated solder pins measure 45 mm in length, ensuring reliable connections Capable of accommodating a maximum clamping range of 50 mm², this terminal is specifically engineered for use with a clamping yoke method.

It complies with RoHS regulations and adheres to various industry standards for safe and effective usage.

Features and Benefits:

•Clamping range up to 50 mm².

•Solder pin length of 4.5 mm.

•Pebble grey color.

•THT solder connection.

•Temperature range from -50°C to 120°C.

Specifications:
