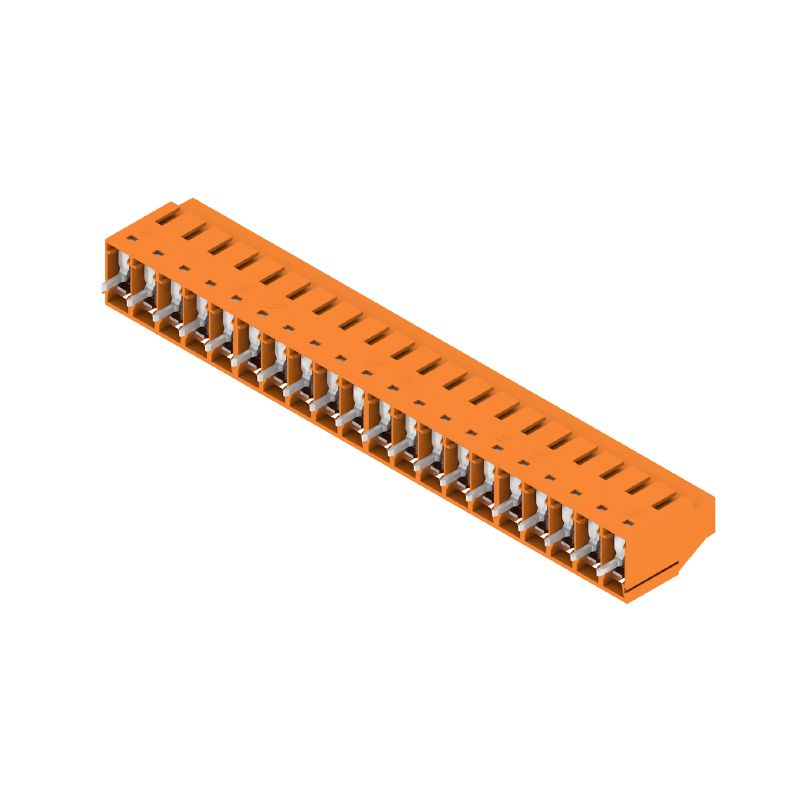

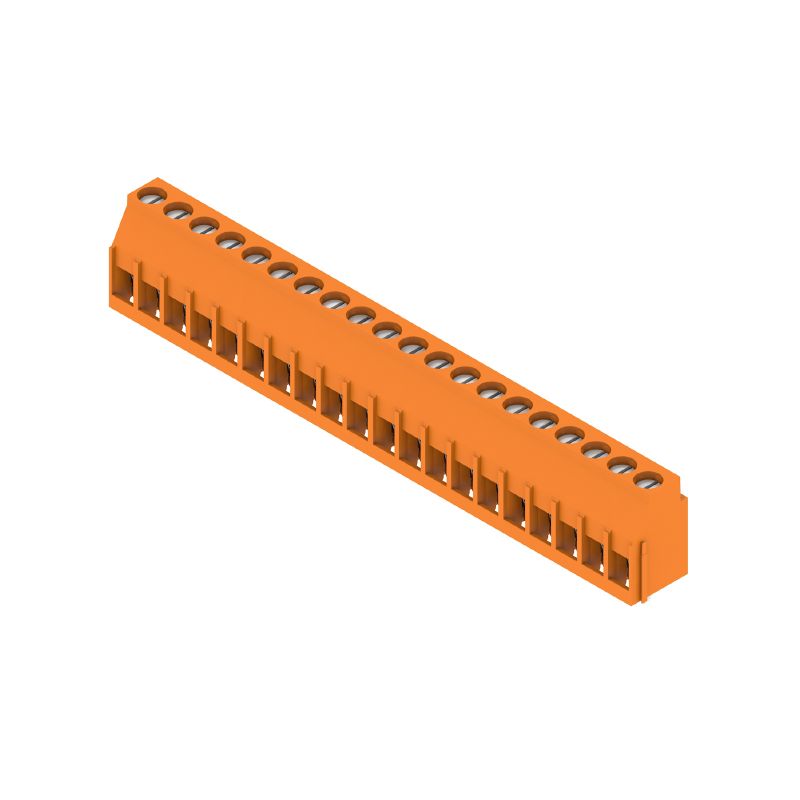

1002010000 - 5.08mm PCB Terminals, 20 Poles, 3.2mm Solder Pins (Pack of 18)

1002010000 - 5.08mm PCB Terminals, 20 Poles, 3.2mm Solder Pins (Pack of 18)

SKU: SKU: 1002010000   Download PDF

Select a Variant:
  • 1002010000 - 5.08mm PCB Terminals, 20 Poles, 3.2mm Solder Pins (Pack of 18)
Qty:
Regular price Now $164.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $164.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This set of printed circuit board terminals is expertly crafted with a 508 mm pitch and accommodates 20 poles arranged at a 90° angle Each terminal features a solder pin, measuring 32 mm in length, finished with a bright orange tin coating It includes a reliable clamping yoke connection, capable of handling a maximum clamping range of 6 mm², and is conveniently packaged in a box for easy storage and transport.

Features and Benefits:

    •Orange color.

    •Clamping yoke connection method.

    •Wire connections are designed to be installed using THT solder connection.

    •Touch-safe protection compliant with DIN VDE standards.

    •Clamping range can accommodate a variety of wire sizes.

Specifications:

 IEC Rating 500 V / 32.5 A / 0.5 - 6 mm²
 UL Rating 300 V / 20 A / AWG 26 - AWG 12

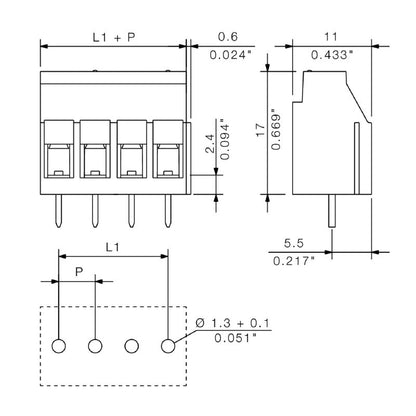

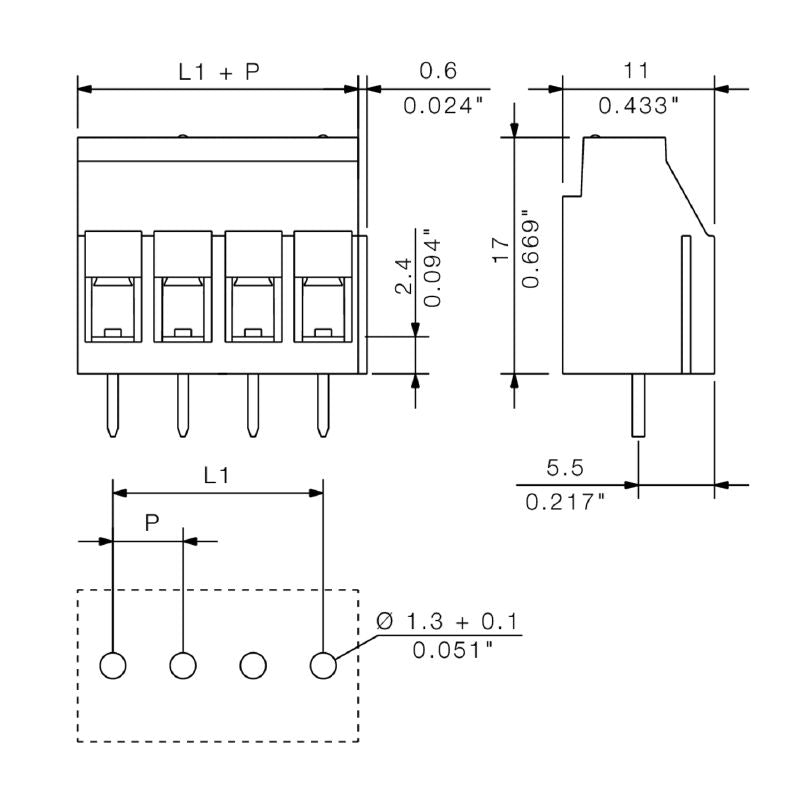

 Depth 11 mm
 Height 20.3 mm
 Width 102.25 mm
 Operating temperature -50 °C to 120 °C
 Material Wemid (PA)
 Clamping current 32.5 A
 Number of poles 20
 Pitch 5.08 mm
