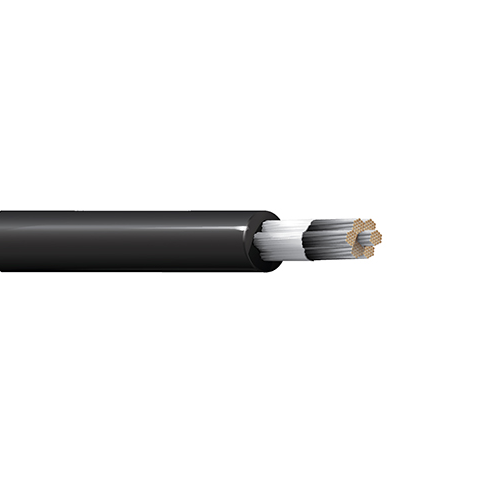

Belden 31508 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Lead Wire
Belden 31508 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Lead Wire
SKU: SKU: NES31508 Download PDF
- Belden 31508 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Lead Wire
- Belden 31508 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Lead Wire
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 31508 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Lead Wire
Description:
Low Temp Rubber Lead Wire, 8 AWG (84x27) Tinned Copper, Neoprene Insulation, AWM 3048 600V 90C.
Insulation:
• Material: Neoprene
• Nom. Thickness: 0.062 in (1.6 mm)
• Nom. Insulation Diameter: 0.285 in (7.24 mm)
• Overall Cable Diameter (Nominal): 0.285 in (7.24 mm)
Standards:
• Voltage Rating: 600 V (AWM 3048)
• Operating Temperature: -30°C to +90°C
Applications:
• internal wiring of appliances, oil resistance applications, motor lead systems
• Size (AWG): 8
• No. of Conductor: 1
• Stranding: 84x27
• Conductor Material: TC - Tinned Copper
• Part Number: 31508
