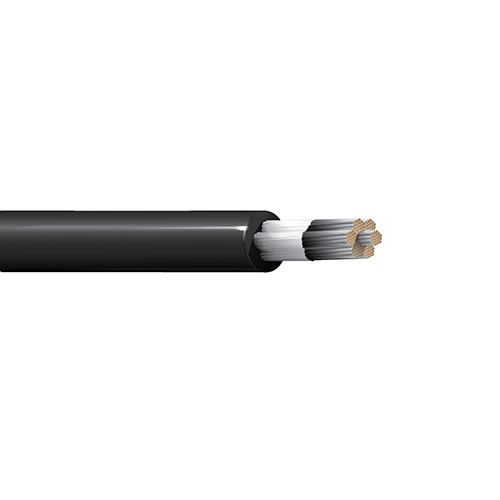

Belden 31506 6 AWG 1 Conductor 84x25 Stranding Tinned Copper 600V Lead Wire
Belden 31506 6 AWG 1 Conductor 84x25 Stranding Tinned Copper 600V Lead Wire
SKU: SKU: NES31506 Download PDF
Select a gauge:
- Belden 31506 6 AWG 1 Conductor 84x25 Stranding Tinned Copper 600V Lead Wire
- Belden 31506 6 AWG 1 Conductor 84x25 Stranding Tinned Copper 600V Lead Wire
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 31506 6 AWG 1 Conductor 84x25 Stranding Tinned Copper 600V Lead Wire
Description:
Low Temp Rubber Lead Wire, 6 AWG (84x25) Tinned Copper, Neoprene Insulation, AWM 3048 600V 90C.
Insulation:
• Material: Neoprene
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Insulation Diameter: 0.343 in (8.71 mm)
• Overall Cable Diameter (Nominal): 0.343 in (8.71 mm)
Standards:
• Voltage Rating: 600 V (AWM 3048)
• Operating Temperature: -30°C to +90°C
Applications:
• internal wiring of appliances, oil resistance applications, motor lead systems
Specifications:
• Size (AWG): 6
• No. of Conductor: 1
• Stranding: 84x25
• Conductor Material: TC - Tinned Copper
• Part Number: 31506
• Size (AWG): 6
• No. of Conductor: 1
• Stranding: 84x25
• Conductor Material: TC - Tinned Copper
• Part Number: 31506
