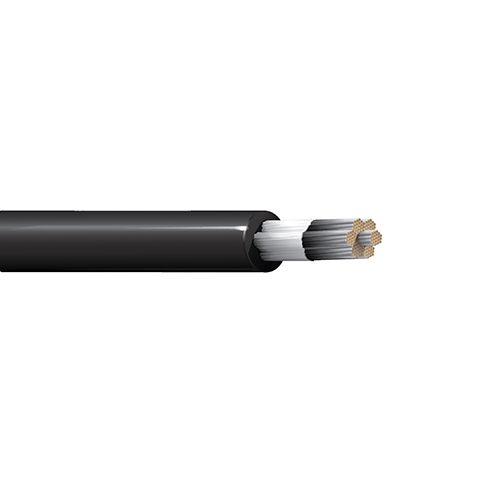

Belden 31510 10 AWG 1 Conductor 65x28 Stranding Tinned Copper 600V Lead Wire

Belden 31510 10 AWG 1 Conductor 65x28 Stranding Tinned Copper 600V Lead Wire

SKU: NES31510 Download PDF

gauge:
  • Belden 31510 10 AWG 1 Conductor 65x28 Stranding Tinned Copper 600V Lead Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $3.60 /FT
BEFORE   Now $3.60 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 31510 10 AWG 1 Conductor 65x28 Stranding Tinned Copper 600V Lead Wire

Description:

Low Temp Rubber Lead Wire, 10 AWG (65x28) Tinned Copper, Neoprene Insulation, AWM 3046 600V 90C.

Insulation:

• Material: Neoprene
• Nom. Thickness: 0.049 in (1.2 mm)
• Nom. Insulation Diameter: 0.209 in (5.31 mm)
• Overall Cable Diameter (Nominal): 0.209 in (5.31 mm)

Standards:

• Voltage Rating: 600 V (AWM 3046)
• Operating Temperature: -30°C to +90°C

Applications:

• internal wiring of appliances, oil resistance applications, motor lead systems

Specifications:

• Size (AWG): 10
• No. of Conductor: 1
• Stranding: 65x28
• Conductor Material: TC - Tinned Copper
• Part Number: 31510
