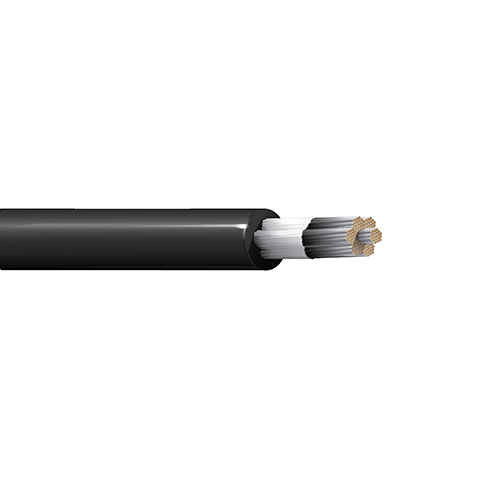

Belden 31504 4 AWG 1 Conductor 105x24 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Belden 31504 4 AWG 1 Conductor 105x24 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
SKU: SKU: NES31504 Download PDF
gauge:
- Belden 31504 4 AWG 1 Conductor 105x24 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
- Belden 31504 4 AWG 1 Conductor 105x24 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $12.99 /FT
Regular price
BEFORE
Sale price
Now $12.99 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 31504 4 AWG 1 Conductor 105x24 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Description:-
Low Temp Rubber Lead Wire, 4 AWG (105x24) Tinned Copper, Neoprene Insulation, AWM 3048 600V 90C.
Insulation:-
• Material: Neoprene
• Nominal Diameter: 0.399 in
• Nominal Wall Thickness: 0.063 in
Standards:-
• UL Voltage Rating: 600 V RMS
• Operating Temperature Range: -30°C to +90°C
Applications:-
• Internal wiring of appliances, oil-resistant applications, motor lead systems
Specifications:-
• Size (AWG): 4
• No. of Conductors: 1
• Stranding: 105x24
• Conductor Material: TC - Tinned Copper
• Part Number: 31504
Description:-
Low Temp Rubber Lead Wire, 4 AWG (105x24) Tinned Copper, Neoprene Insulation, AWM 3048 600V 90C.
Insulation:-
• Material: Neoprene
• Nominal Diameter: 0.399 in
• Nominal Wall Thickness: 0.063 in
Standards:-
• UL Voltage Rating: 600 V RMS
• Operating Temperature Range: -30°C to +90°C
Applications:-
• Internal wiring of appliances, oil-resistant applications, motor lead systems
Specifications:-
• Size (AWG): 4
• No. of Conductors: 1
• Stranding: 105x24
• Conductor Material: TC - Tinned Copper
• Part Number: 31504
