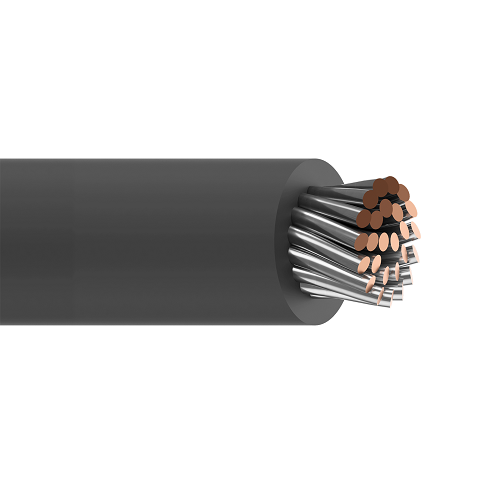

Belden 32516 16 AWG 1 Conductor 26x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Belden 32516 16 AWG 1 Conductor 26x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
SKU: SKU: NES32516 Download PDF
gauge:
- Belden 32516 16 AWG 1 Conductor 26x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
- Belden 32516 16 AWG 1 Conductor 26x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $1.32 /FT
Regular price
BEFORE
Sale price
Now $1.32 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 32516 16 AWG 1 Conductor 26x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Description:-
Low Temp Rubber Lead Wire, 16 AWG (26x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90C.
Insulation:-
• Material: Neoprene
• Nom. Thickness: 0.048 in (1.2 mm)
• Overall Cable Diameter (Nominal): 0.155 in (3.94 mm)
Standards:-
• UL Voltage Rating: 600 V RMS
Applications:-
• internal wiring of appliances, oil-resistant applications, motor lead systems
Specifications:-
• Size (AWG): 16
• No. of Conductors: 1
• Stranding: 26x30
• Conductor Material: TC - Tinned Copper
• Part Number: 32516
Description:-
Low Temp Rubber Lead Wire, 16 AWG (26x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90C.
Insulation:-
• Material: Neoprene
• Nom. Thickness: 0.048 in (1.2 mm)
• Overall Cable Diameter (Nominal): 0.155 in (3.94 mm)
Standards:-
• UL Voltage Rating: 600 V RMS
Applications:-
• internal wiring of appliances, oil-resistant applications, motor lead systems
Specifications:-
• Size (AWG): 16
• No. of Conductors: 1
• Stranding: 26x30
• Conductor Material: TC - Tinned Copper
• Part Number: 32516
