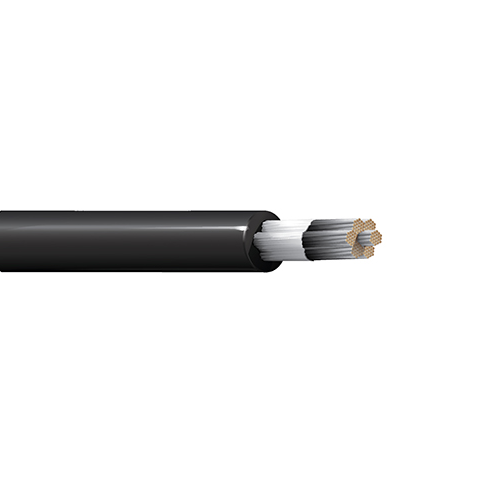

Belden 31512 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Lead Wire
Belden 31512 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Lead Wire
SKU: SKU: NES31512 Download PDF
Select a gauge:
- Belden 31512 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Lead Wire
- Belden 31512 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Lead Wire
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 31512 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Lead Wire
Description:
Low Temp Rubber Lead Wire, 12 AWG (65x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90C.
Insulation:
• Material: Neoprene
• Nominal Diameter: 0.190 in
• Nominal Wall Thickness: 0.049 in
Standards:
• Voltage Rating: 600 V RMS
• Operating Temperature: -30°C to +90°C
Applications:
• internal wiring of appliances, oil resistance applications, motor lead systems
Specifications:
• Size (AWG): 12
• No. of Conductor: 1
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 31512
• Size (AWG): 12
• No. of Conductor: 1
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 31512
