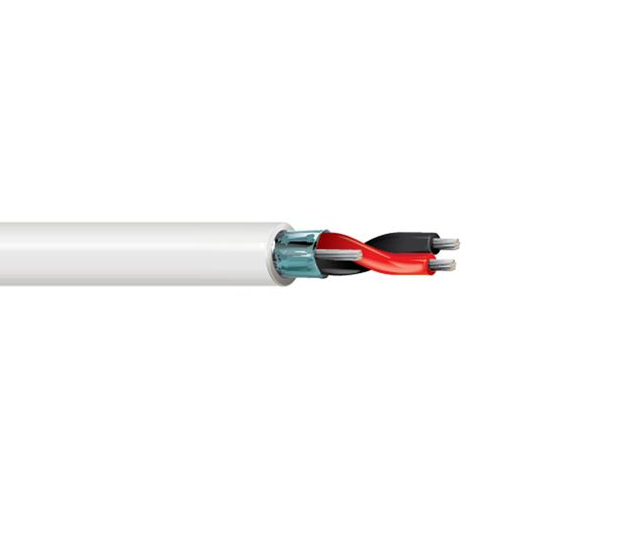

Belden 1801B 24 AWG 1 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable

Description:-

Digital Audio Cable, 1 Pair, 24 AWG (7 x 32) Tinned Copper, FEP Insulation, Overall Beldfoil Shield, Flamarrest Jacket, CMP

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.165 in (4.19 mm)
• Overall Cable Diameter (Nominal): 0.165 in (4.19 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nominal Characteristic Impedance: 110 Ohm
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles

Specifications:-

• Size (AWG): 24
• No. of Pair: 1
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1801B
