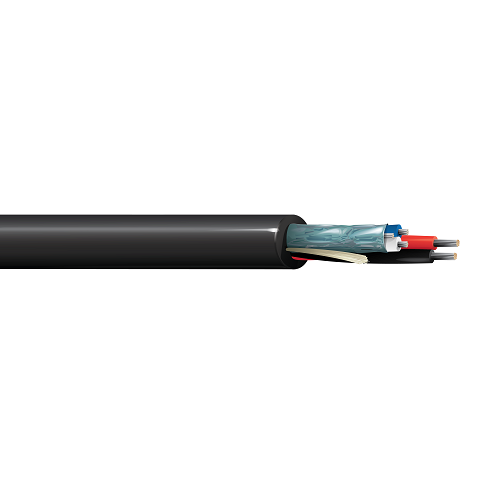

Belden 1502SB 22 AWG 1 Pair 18 AWG 2 Conductor Tinned Copper 300V Media Control Cable

Description:-

Multimedia Control Cable, 1 Pair 22 AWG stranded (7x30) tinned copper (data) with foamed PE insulation, Beldfoil shield w/ drain, 2 Conductor 18 AWG stranded (16x30) tinned copper conductor (power) with polypropylene insulation, CMG-LS, LSZH jacket.

Insulation:-

Element: 22 AWG
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Insulation Diameter: 0.0685 in (1.74 mm)

Element: 18 AWG
• Material: PP - Polypropylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.061 in (1.5 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.255 in (6.48 mm)

Standards:-

• UL Voltage Rating: 300 V (TC)
• Nom. Characteristic Impedence: 100 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Multi-Media and Lighting Control, ABS approved for marine shipboard and offshore use

Specifications:-

Element: 22 AWG
• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper

Element: 18 AWG
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1502SB
