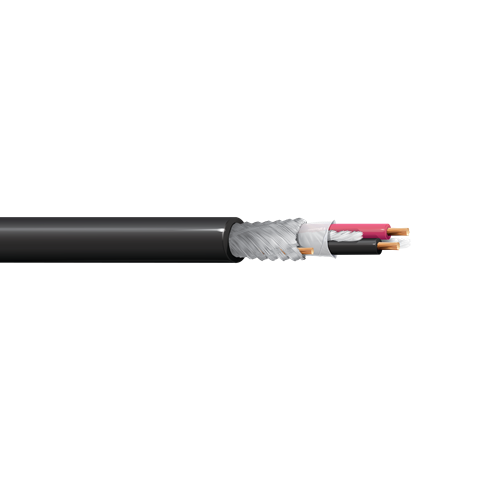

Belden 1800F 24 AWG 1 Pair 42x40 Stranding Bare Copper 110 Ohm Digital Microphone Cable

Description:

Digital Microphone Cable, 1 Pair 24 AWG (42x40) Bare Copper, PE insulation, 95% Tinned Copper French Braid Shield, Matte PVC jacket, CL2R-rated, Flexible.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.058 in (1.5 mm)

Outer Shield:

• Shield Type: French Braid
• Material: Tinned Copper (TC)
• Coverage: 95%
• Drainwire Type: 26 AWG (30x40) BC - Bare Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.211 in (5.36 mm)
• Overall Cable Diameter (Nominal): 0.211 in (5.36 mm)

Standards:

• Voltage Rating: 100 V
• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance: 110 Ohm

Applications:

• Digital microphone; Flexible interconnect cable for digital audio

Specifications:

• Size (AWG): 24
• No. of Pair: 1
• Stranding: 42x40
• Conductor Material: BC - Bare Copper
• Part Number: 1800F
