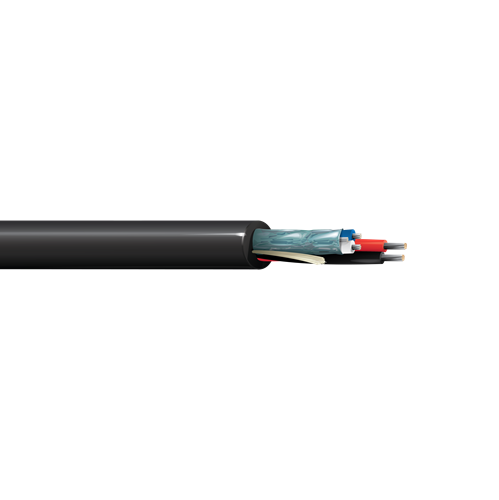

Belden 1502P 22 AWG 1 Pair 7x30 Stranding 18 AWG 2 Conductor 19x30 Stranding Multimedia Control Cable

Description:

Multimedia Control Cable, 1 Pair 22 AWG stranded (7x30) tinned copper (data) with foam FEP insulation, Beldfoil shield w/ drain, 2 Conductor 18 AWG stranded (16x30) tinned copper conductor (power) with Flamarrest insulation, Plenum, Flamarrest jacket.

Insulation:

Element: Pair(s):-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.074 in (1.9 mm)

Element: Conductor(s):-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.068 in (1.7 mm)

Inner Shield:

• Outer Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.205 in (5.21 mm)
• Overall Cable Diameter (Nominal): 0.205 in (5.21 mm)

Applications:

• Multi-Media and Lighting Automation / Control, AMX and Crestron Control Systems
