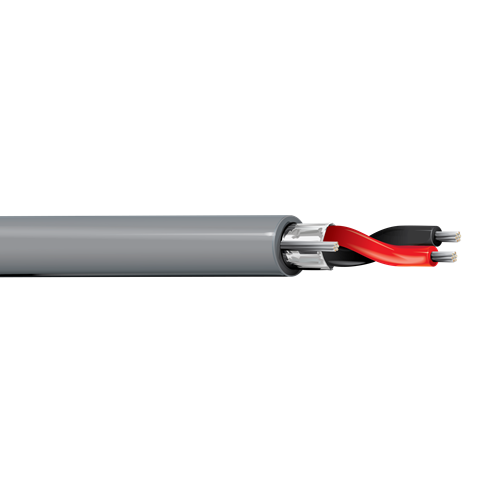

Belden 1800B 24 AWG 1 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable

Description:

Digital Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, Datalene Insulation, Overall Beldfoil Shield, PVC Jacket, CMR.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.068 in (1.7 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Diameter: 0.185 in (4.70 mm)
• Overall Cable Diameter (Nominal): 0.185 in (4.70 mm)

Standards:

• Voltage Rating: 300 V (CMR)
• Operating Temperature: -30°C to +60°C
• Nom. Characteristic Impedance: 110 Ohm

Applications:

• Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles

Specifications:

• Size (AWG): 24
• No. of Pair: 1
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1800B
