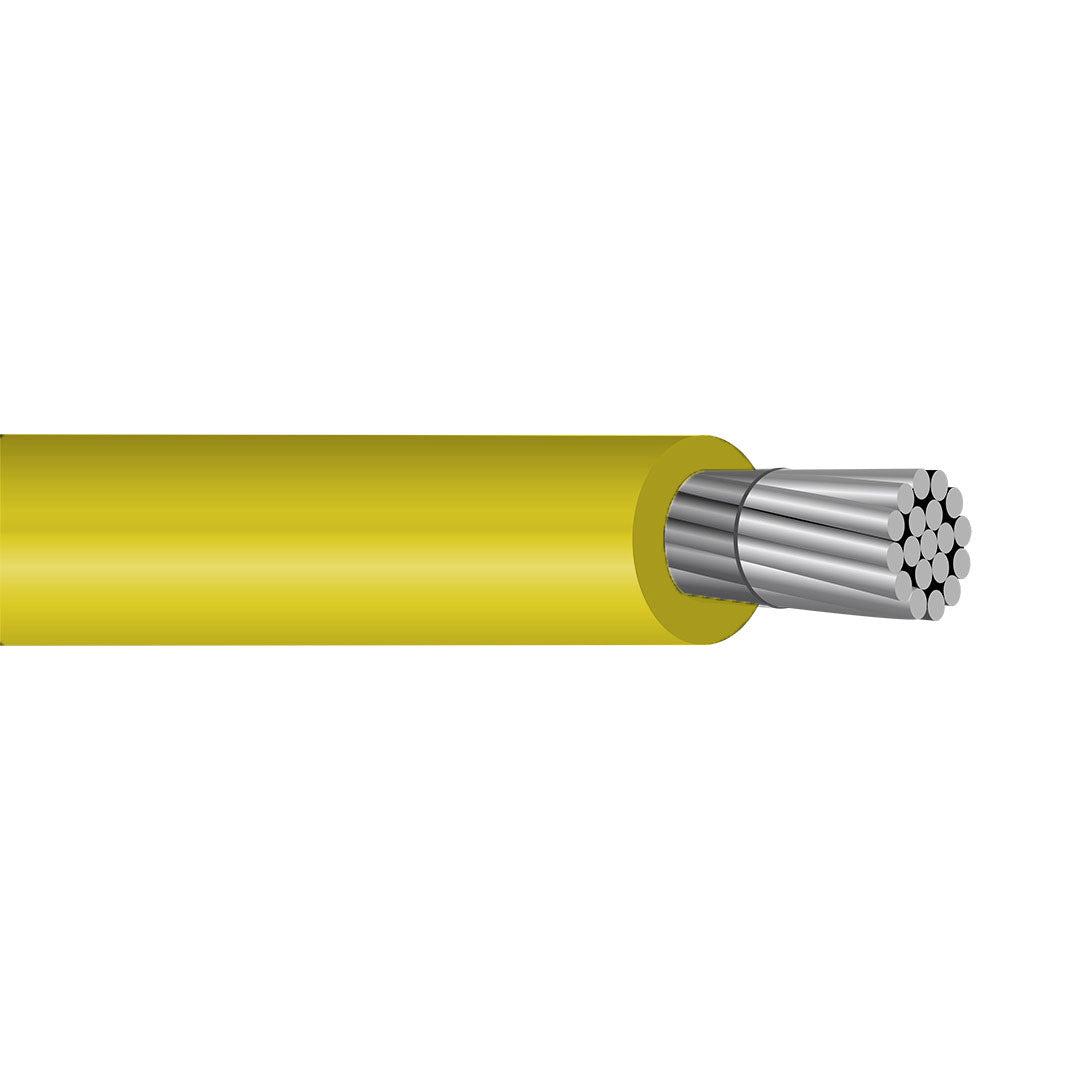

8 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

Allowable Ampacity for 8 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 45 Amps

Applications:

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Also Known As:

8 thhn cable, 8 thwn cable, 8 awg thhn cable, 8 awg thwn cable, 8 thhn aluminum, 8 pvc insulated, 8 pvc insulated wire, 8 pvc insulated aluminium wire, 8 pvc sheathed cable, 8 pvc flexible cable.

Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Construction

Conductors:

THHN / THWN-2 / T90 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Specifications:

• Size AWG: 8

• Stranding: 7

• Conductor Diameter Inches: 0.134

• Insulation Thickness Inches: 0.045

• Jacket Thickness Inches: 0.005

• O.D. Inches:  0.204

• New Weight lb/1000FT: 30 lbs

• Ampacity at 90°C: 45 Amps
