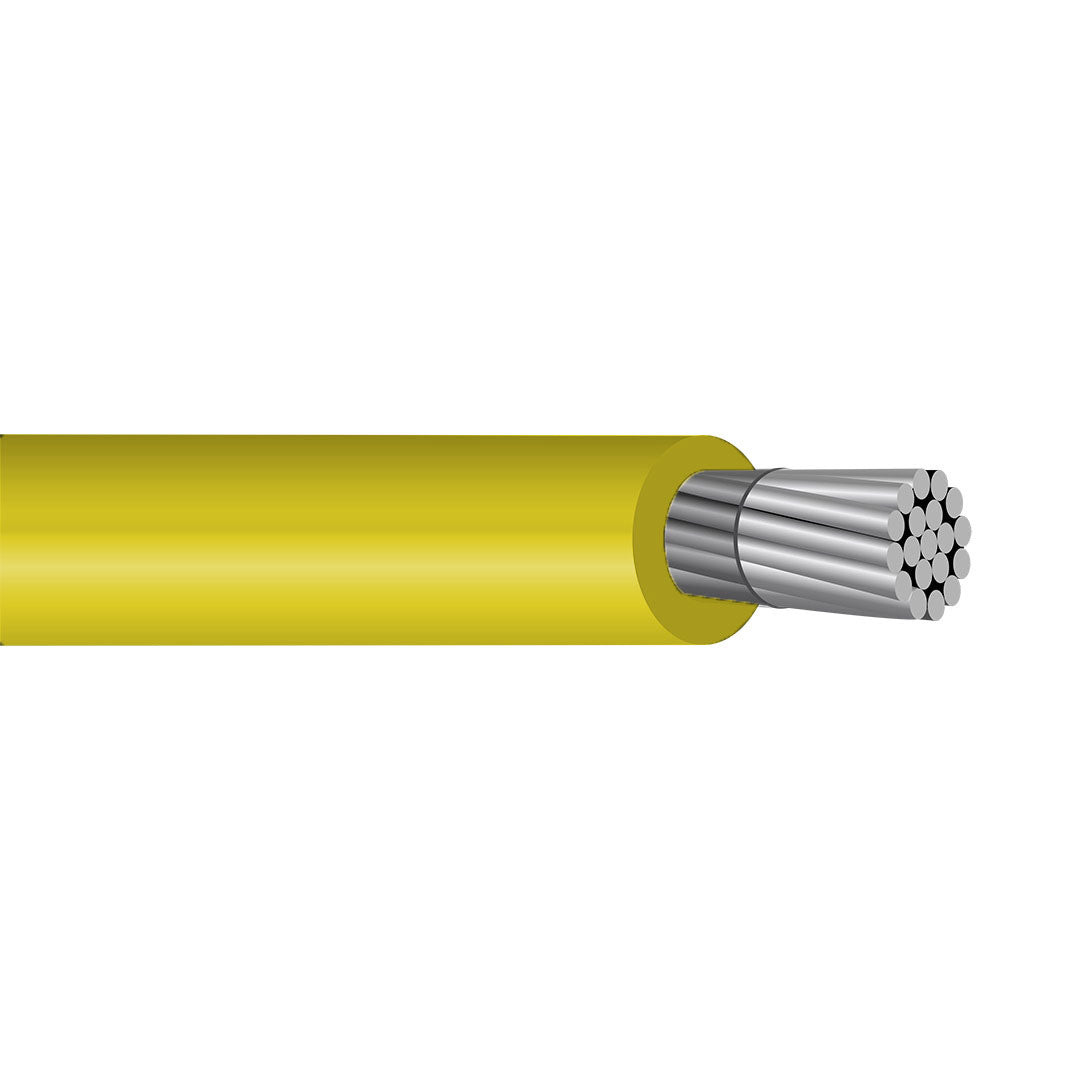

250' 700 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

250' 700 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

SKU: SKU: NES28828X-9 Download PDF

Color:
Variant:
  • 250' 700 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V
Regular price Now $1,252.50
Regular price BEFORE   Sale price Now $1,252.50
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

700 thhn cable, 700 thwn cable, 700 mcm thhn cable, 700 mcm thwn cable, 700 thhn aluminum, 700 pvc insulated, 700 pvc insulated wire, 700 pvc insulated aluminium wire, 700 pvc sheathed cable, 700 pvc flexible cable.

Conductors:

Compact bare AA-8000 series aluminum, with Class B stranded per ASTM

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Compatible with Manufacturer

Priority Wire & Cable : 700-01AL-THHN
Classic Wire & Cable : A700-01THHN
Southwire : Black : 56184399
Blue : 56269199
Brown : 56184399
Gray : 56269399
Orange : 56184499
Red : 56269099
White : 56269299
Yellow : 56184699

Resources


Applications
The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.
Features
Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Allowable Ampacity for 700 MCM THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 420 Amps
Specifications
• Size AWG: 700

• Stranding: 58

Conductor Diameter Inches: 0.877

• Insulation Thickness Inches: 0.8

• Jacket Thickness Inches: 0.009

• O.D. Inches: 1.035

• New Weight lb/1000FT: 782 lbs

• Ampacity at 90°C: 420 Amps
