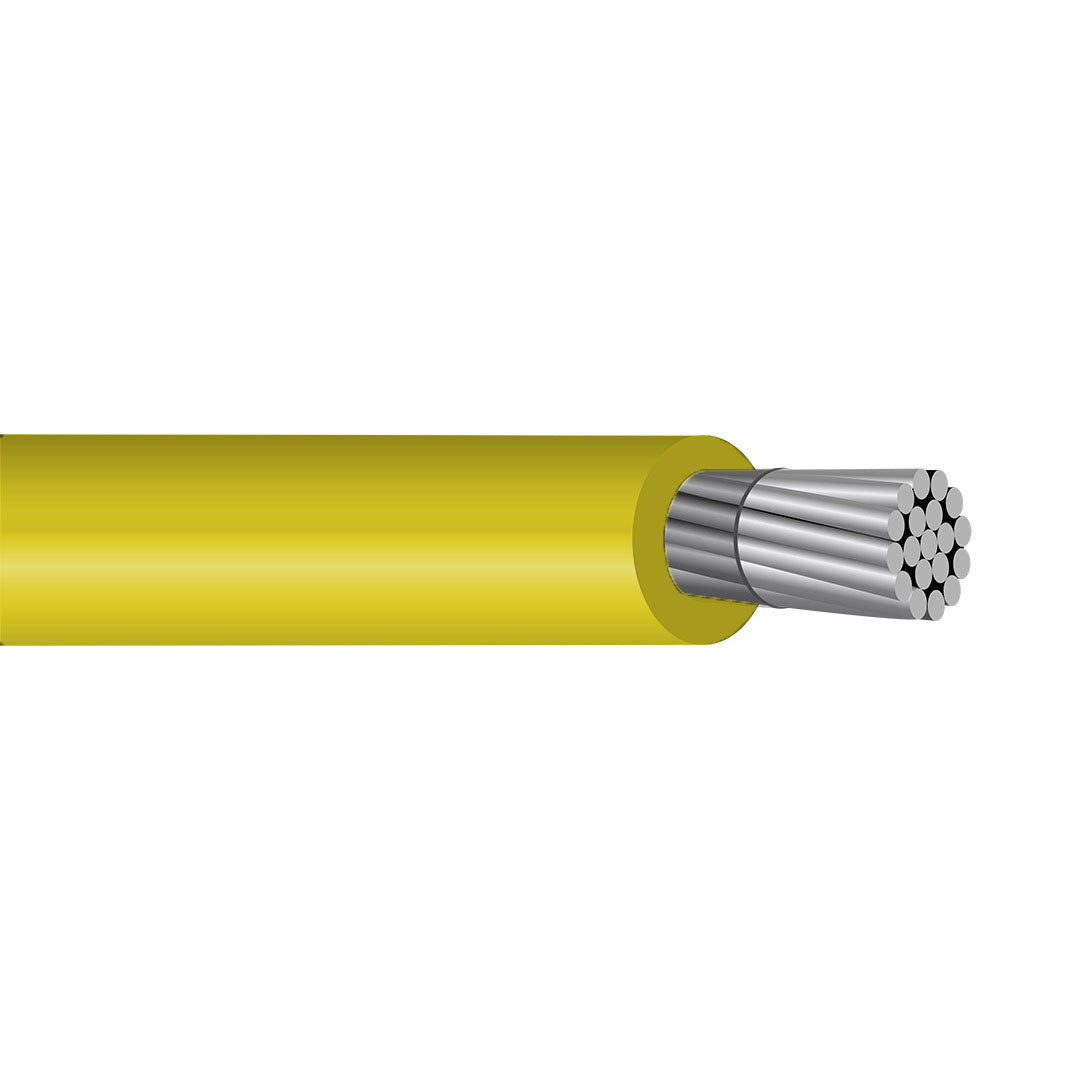

350 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

SKU: SKU: NES28792X Download PDF

Color:

Black Blue Green Orange Red White Yellow Brown Gray

gauge:

350 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Now $2.67 /FT

~~BEFORE~~ Now $2.67 /FT

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

350 thhn cable, 350 thwn cable, 350 mcm thhn cable, 350 mcm thwn cable, 350 thhn aluminum, 350 pvc insulated, 350 pvc insulated wire, 350 pvc insulated aluminium wire, 350 pvc sheathed cable, 350 pvc flexible cable.

Conductors:

Compact bare AA-8000 series aluminum, with Class B stranded per ASTM

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Compatible with Manufacturer
Priority Wire & Cable :	350-01AL-THHN
Classic Wire & Cable :	A350-01THHN
Southwire :	Black : 56044301 Blue : 56262403 Brown : 56185803 Gray : 56186201 Green : 56277599 Orange : 56185903 Purple : 57337599 Red : 56262303 White : 56262203 Yellow : 56186103 Pink : 64112599 Tan : 64112799

Resources

Applications

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Features

Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Allowable Ampacity for 350 MCM THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 280 Amps

Specifications

• Size AWG: 350

• Stranding: 35

• Conductor Diameter Inches: 0.614

• Insulation Thickness Inches: 0.65

• Jacket Thickness Inches: 0.008

• O.D. Inches: 0.752

• New Weight lb/1000FT: 401 lbs

• Ampacity at 90°C: 280 Amps

Reviews
