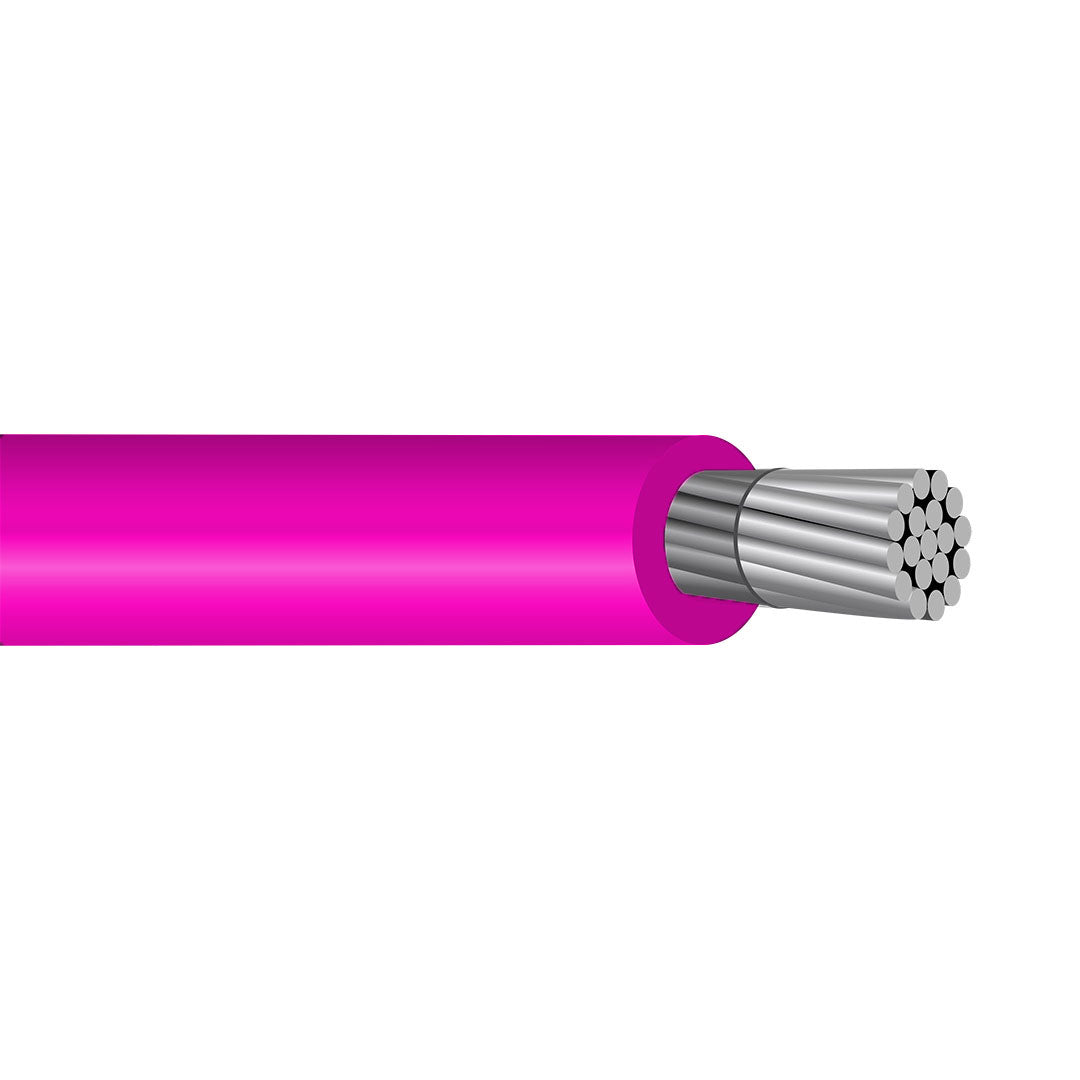

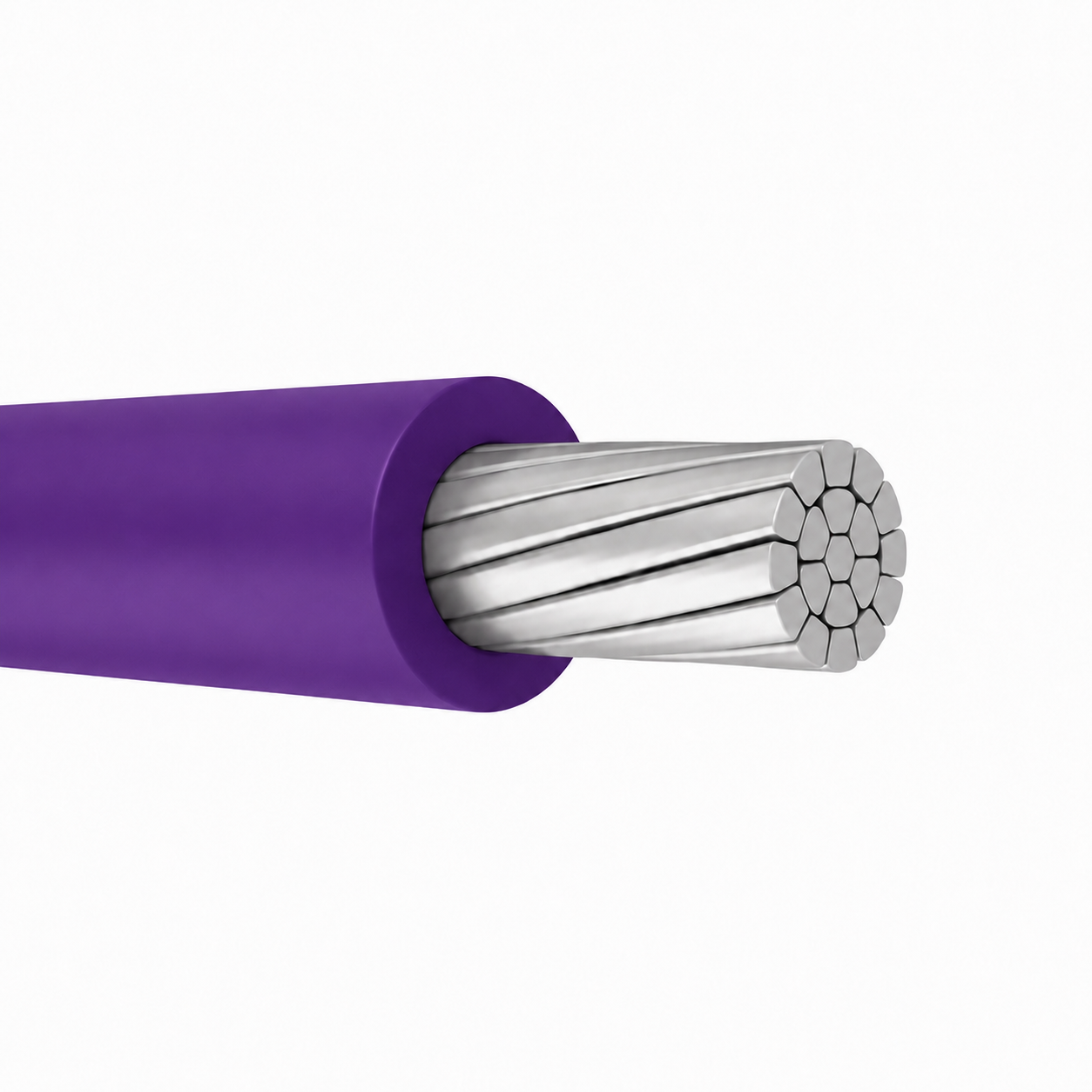

1000 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

1000 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

SKU: NES28863X Download PDF

Color:
gauge:
  • 1000 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $7.51 /FT
BEFORE   Now $7.51 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details

Get Extra Discount On Standard reels

250' 1000 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V
$1,817.50
500' 1000 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V
$3,405.00
1000' 1000 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V
$6,530.00
Product Information Resources Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

1000 thhn cable, 1000 thwn cable,  1000 mcm thhn cable, 1000 mcm thwn cable, 1000 thhn aluminum, 1000 pvc insulated, 1000 pvc insulated wire, 1000 pvc insulated aluminium wire, 1000 pvc sheathed cable, 1000 pvc flexible cable.

Conductors:

Compact bare AA-8000 series aluminum, with Class B stranded per ASTM

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Compatible with Manufacturer
Priority Wire & Cable : 1000-01AL-THHN
Classic Wire & Cable : A1000-01THHN
Southwire : Black : 56268099
Brown : 56428099
Orange : 56428199
Yellow : 56428299
Resources
Applications
The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.
Features
Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Allowable Ampacity for 1000 MCM THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 500 Amps
Specifications
• Size AWG: 1000

• Stranding: 58

• Conductor Diameter Inches: 1.059

• Insulation Thickness Inches: 0.8

• Jacket Thickness Inches: 0.009

• O.D. Inches: 1.218

• New Weight lb/1000FT: 1090 lbs

• Ampacity at 90°C: 500 Amps
