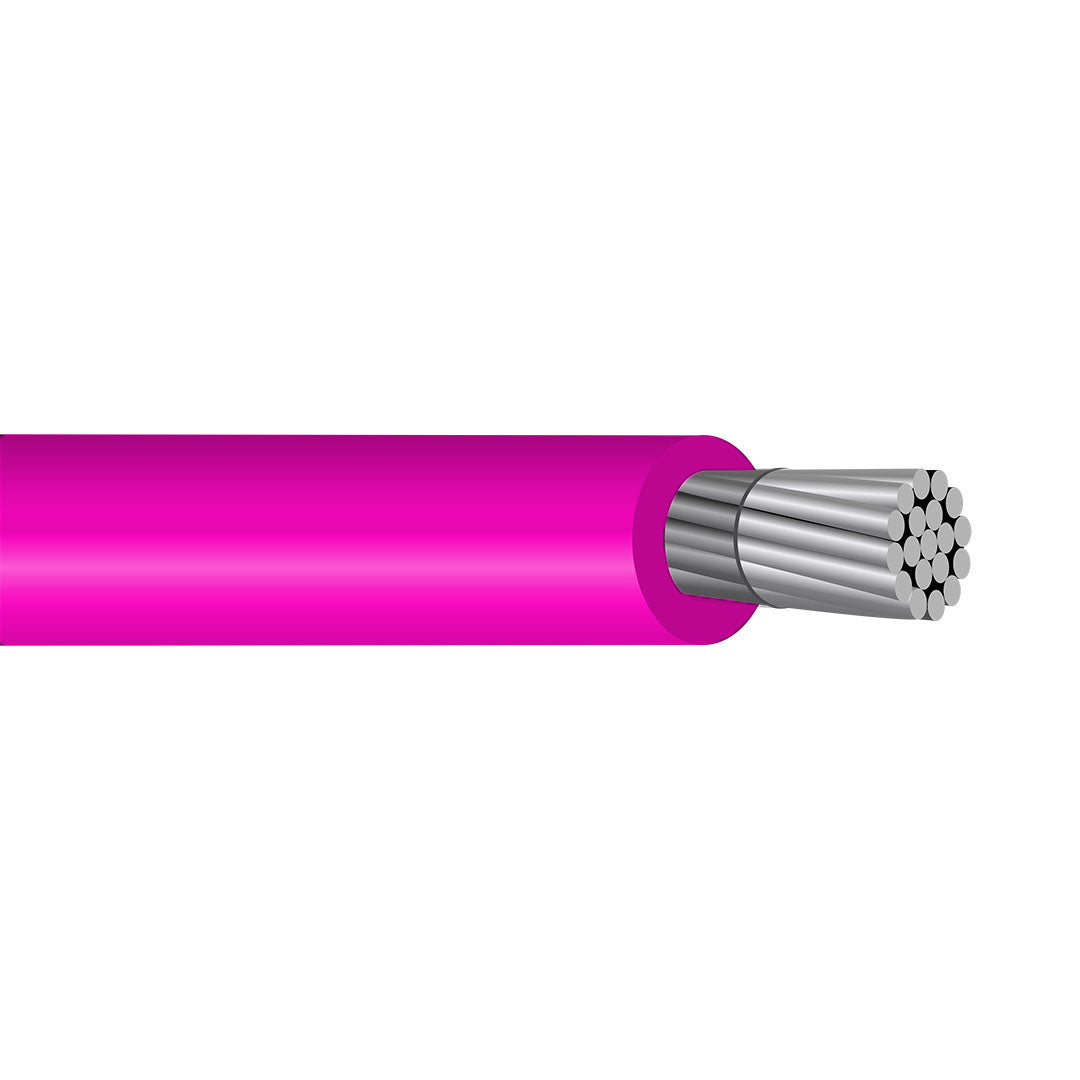

750 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

SKU: SKU: NES28837X Download PDF

Color:

Black Blue Green Orange Red White Yellow Brown Gray

gauge:

750 MCM THHN/THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Now $5.09 /FT

~~BEFORE~~ Now $5.09 /FT

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

750 thhn cable, 750 thwn cable, 750 mcm thhn cable, 750 mcm thwn cable, 750 thhn aluminum, 750 pvc insulated, 750 pvc insulated wire, 750 pvc insulated aluminium wire, 750 pvc sheathed cable, 750 pvc flexible cable.

Conductors:

Compact bare AA-8000 series aluminum, with Class B stranded per ASTM

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Compatible with Manufacturer
Priority Wire & Cable :	750-01AL-THHN
Classic Wire & Cable :	A750-01THHN
Southwire :	Black : 56263201 Blue : 56263505 Brown : 56183805 Gray : 56184105 Green : 56184299 Orange : 56183905 Purple : 57348199 Red : 56263405 White : 56263305 Yellow : 56184005 Pink : 59018799

Resources

Applications

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Features

Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Allowable Ampacity for 750 MCM THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 435 Amps

Specifications

• Size AWG: 750

• Stranding: 58

• Conductor Diameter Inches: 0.909

• Insulation Thickness Inches: 0.8

• Jacket Thickness Inches: 0.009

• O.D. Inches: 1.066

• New Weight lb/1000FT: 833 lbs

• Ampacity at 90°C: 435 Amps
