2589840000 - PVC Cable Duct 80x60mm, V-0 Rated, 2m Length (Pack of 24)

SKU: SKU: 2589840000 Download PDF

Select a Variant:

2589840000 - PVC Cable Duct 80x60mm, V-0 Rated, 2m Length (Pack of 24)

SET THE QTY:

Now $321.94 Web pricing policy

~~BEFORE $0.00~~ Now $321.94 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Optimize your cable management with the CD-BO 80X60 8/12 GY cable duct, expertly made from lead-free PVC This durable duct measures 80 mm in height, 60 mm in width, and stretches to a length of 2000 mm Fully compliant with RoHS regulations and free from any SVHC at levels exceeding 01 wt%, it ensures safety and reliability With a V-0 flammability rating under UL 94, this product is non-tracking for added peace of mind.

It offers versatile installation options, including screwing, adhesive application, or riveting, making it an ideal choice for any project.

Features and Benefits:

•Compliant with RoHS and REACH regulations.

•Non-tracking material.

•Flexible installation options with mounting options.

•Includes cable duct and lid.

•Halogen-free construction.

Specifications:

Operating temperature range	-5...60 °C
Height	80 mm (3.15 inch)
Width	60 mm (2.362 inch)
Length	2000 mm (78.74 inch)
Usable cross-section	4,175 mm²

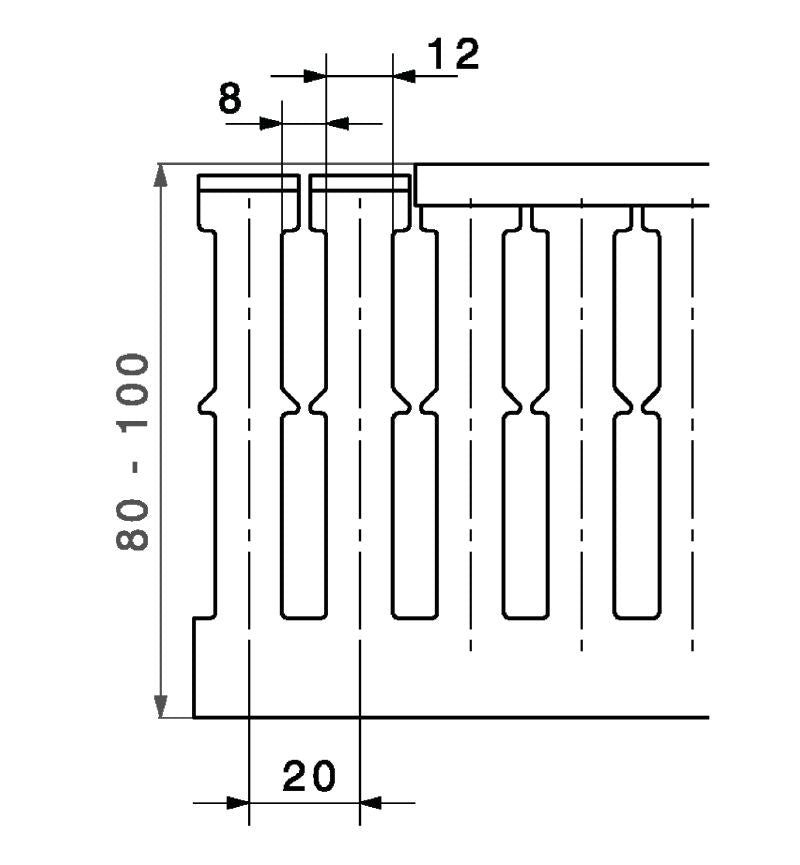

Slit gap	12 mm
Slit width	8 mm
UL File Number	E500004
Standards	In accordance with DIN EN 50085
Classifications	{'ETIM 6.0': 'EC000012', 'ETIM 7.0': 'EC000012', 'ETIM 8.0': 'EC000012', 'ETIM 9.0': 'EC000012', 'ETIM 10.0': 'EC000012', 'ECLASS 9.1': '27-40-07-03', 'ECLASS 10.0': '27-40-07-03', 'ECLASS 11.0': '27-40-07-03', 'ECLASS 12.0': '27-40-07-03', 'ECLASS 13.0': '27-40-07-03', 'ECLASS 14.0': '27-40-07-03', 'ECLASS 15.0': '27-40-07-03'}
