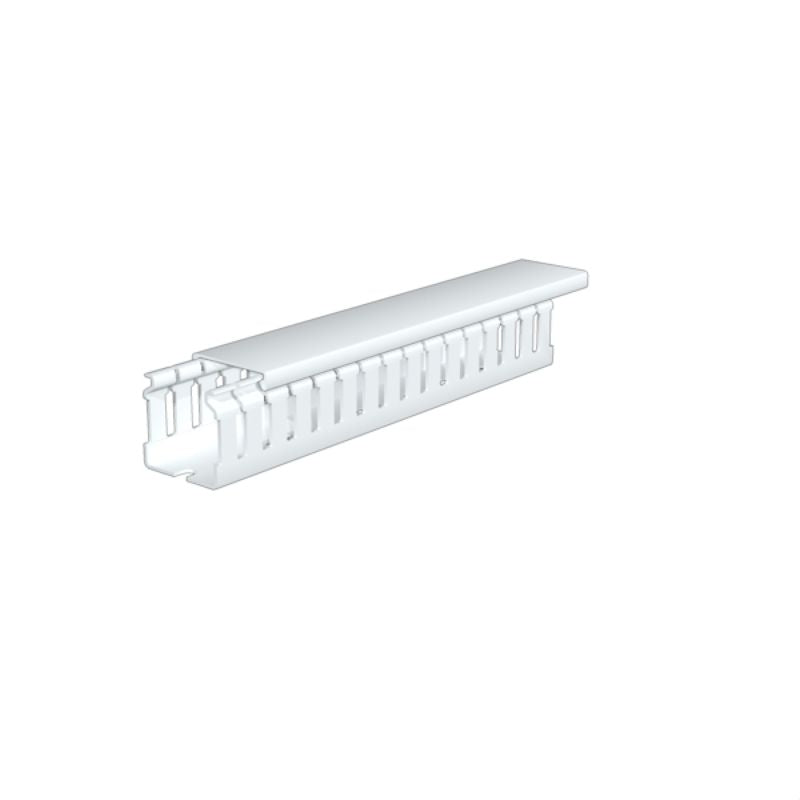

2589660000 - Light Grey Halogen-Free Cable Duct 37.5x25mm, 2000mm Long (Pack of 64)

2589660000 - Light Grey Halogen-Free Cable Duct 37.5x25mm, 2000mm Long (Pack of 64)

SKU: SKU: 2589660000 Download PDF

Variant:
  • 2589660000 - Light Grey Halogen-Free Cable Duct 37.5x25mm, 2000mm Long (Pack of 64)
Regular price Now $1,033.31
Regular price BEFORE   $0.00 Sale price Now $1,033.31
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your cable management solutions with this halogen-free cable duct Constructed to measure 375 mm in height, 25 mm in width, and 2000 mm in length, it showcases a modern light grey hue and adheres to RoHS regulations Though the product will no longer be available after the end of 2025, it's currently ready for your needs Crafted from PC-ABS material, this duct is lightweight and user-friendly.

It also incorporates a slit gap of 75 mm and a slit width of 5 mm, providing versatile installation options to suit various applications.

Features and Benefits:

    •RoHS compliant without exemption.

    •Includes cable duct and lid.

    •Non-tracking.

    •Temperature range from -25 to 105 °C.

    •UL 94 flammability rating of V-0.

Specifications:

 Height 37.5 mm
 Height (inches) 1.476 inch
 Width 25 mm
 Width (inches) 0.984 inch
 Length 2000 mm
 Length (inches) 78.74 inch
 Operating temperature range -25...105 °C
 Basic material PC-ABS
 Slit gap 7.5 mm
 Slit width 5 mm
 Usable cross-section 720 mm²
 Standards In accordance with DIN EN 50085
 Type of mounting when screwed in / With adhesive / Riveted
 ETIM 6.0 EC000012
 ETIM 7.0 EC000012
 ETIM 8.0 EC000012
 ETIM 9.0 EC000012
 ETIM 10.0 EC000012
 ECLASS 9.1 27-40-07-03
