2589390000 - RoHS Compliant Halogen-Free Cable Duct, 75mm x 50mm, 2000mm Long (Pack of 24)

SKU: SKU: 2589390000 Download PDF

Select a Variant:

2589390000 - RoHS Compliant Halogen-Free Cable Duct, 75mm x 50mm, 2000mm Long (Pack of 24)

SET THE QTY:

Now $1,906.58 Web pricing policy

~~BEFORE $0.00~~ Now $1,906.58 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

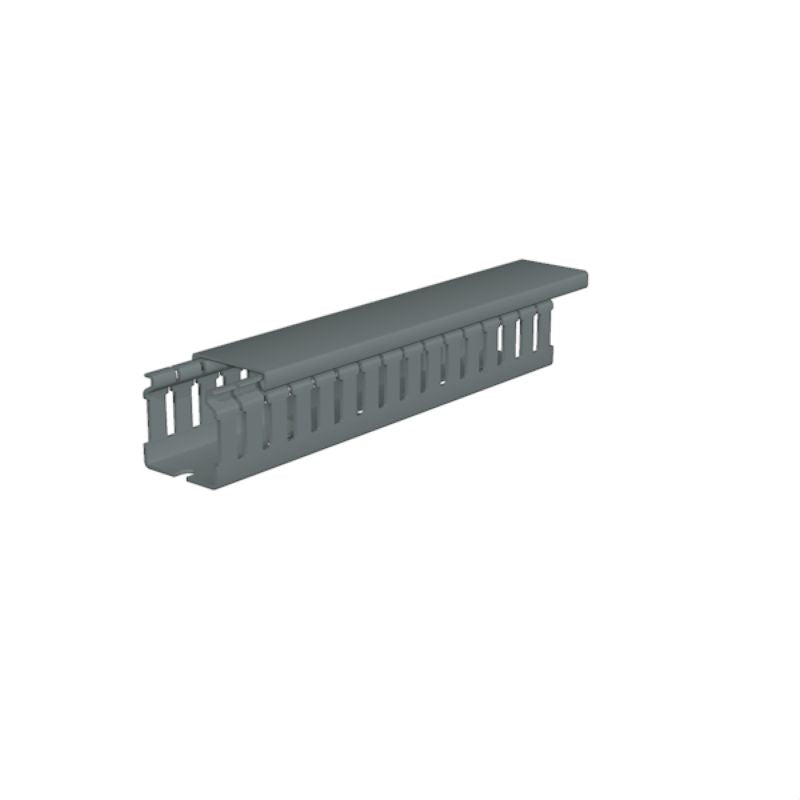

Ensure your electrical installations are safe and efficient with this halogen-free cable duct Measuring 75 mm in width and 50 mm in height, it features a cross-section of 500 mm by 750 mm, while extending to a generous length of 2000 mm Made from high-quality PPE material, this duct complies with RoHS regulations, ensuring environmental safety Note that this product will be discontinued, with its final availability extending until December 30, 2025.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•Operating temperature range is between -25 and 120 degrees Celsius.

•Included components are cable duct and lid.

•Non-tracking design.

•Advised for installation methods including screwed, adhered, or riveted.

•Meets UL 94 flammability standard with a V-0 rating.

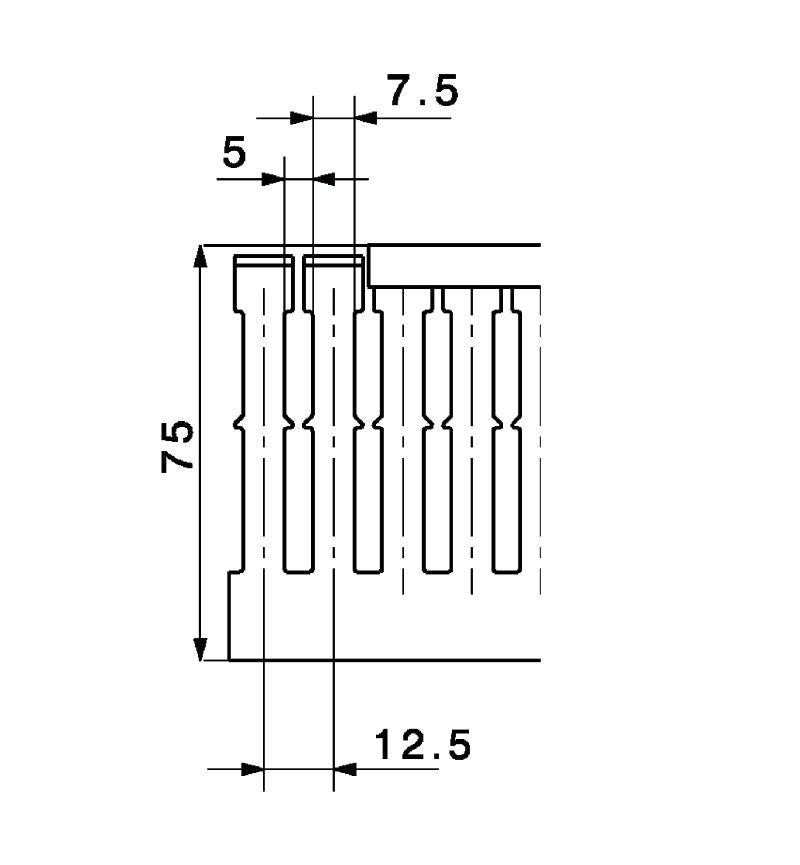

•Slit gap of 7.5 mm and slit width of 5 mm.

Specifications:

Height	75 mm
Height (inches)	2.953 inch
Width	50 mm
Width (inches)	1.968 inch
Length	2000 mm
Length (inches)	78.74 inch
Operating temperature range	-25...120 °C
Usable cross-section	3200 mm²
Standards	In accordance with DIN EN 50085
Classifications	{'ETIM 6.0': 'EC000012', 'ETIM 7.0': 'EC000012', 'ETIM 8.0': 'EC000012', 'ETIM 9.0': 'EC000012', 'ETIM 10.0': 'EC000012', 'ECLASS 9.1': '27-40-07-03', 'ECLASS 10.0': '27-40-07-03', 'ECLASS 11.0': '27-40-07-03', 'ECLASS 12.0': '27-40-07-03', 'ECLASS 13.0': '27-40-07-03', 'ECLASS 14.0': '27-40-07-03', 'ECLASS 15.0': '27-40-07-03'}
