2589960000 - 37.5mm Halogen-Free Cable Duct, 2000mm Long, RoHS Compliant (Pack of 64)

2589960000 - 37.5mm Halogen-Free Cable Duct, 2000mm Long, RoHS Compliant (Pack of 64)

SKU: SKU: 2589960000 Download PDF

Variant:
  • 2589960000 - 37.5mm Halogen-Free Cable Duct, 2000mm Long, RoHS Compliant (Pack of 64)
Regular price Now $2,294.13
Regular price BEFORE   $0.00 Sale price Now $2,294.13
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

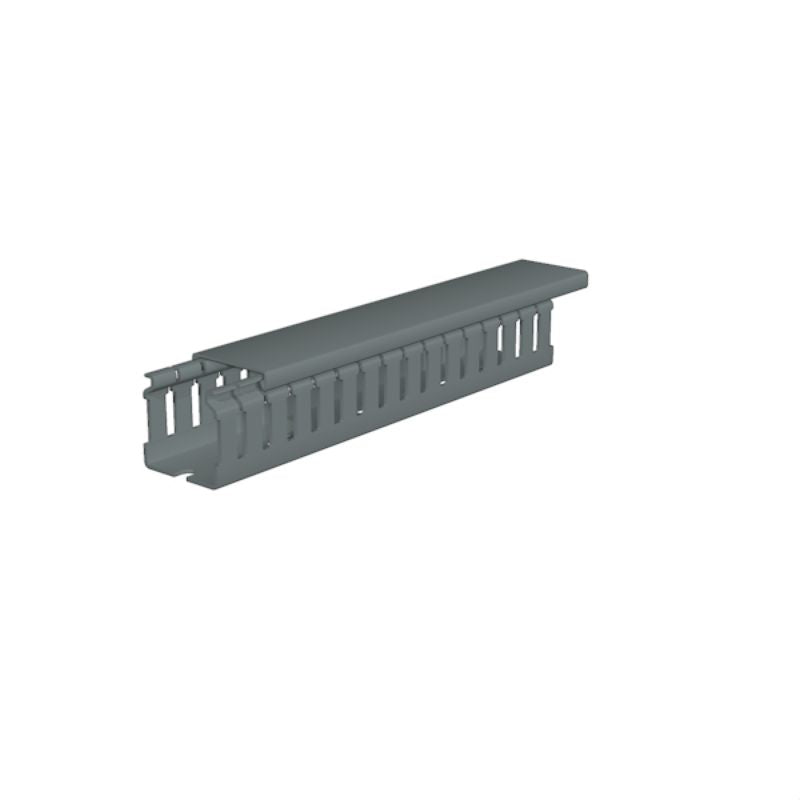

Ensure your cables stay protected with this halogen-free cable duct, measuring 375 mm in width, 25 mm in height, and 2000 mm in length Crafted from PPE material, it meets RoHS standards for safe use The duct features a lid and possesses non-tracking properties It operates effectively within a temperature range of -25 to 120 °C and includes a 5 mm slit width and a 75 mm slit gap for easy access Installation is straightforward, allowing for mounting through screws, adhesive, or rivets.

Features and Benefits:

    •Halogen-free material.

    •Includes lid.

    •Non-tracking properties.

    •Compliant with RoHS without exemption.

    •Used for wiring in various installations where halogen-free materials are required.

Specifications:

 Height 37.5 mm
 Height (inches) 1.476 inch
 Width 25 mm
 Width (inches) 0.984 inch
 Length 2000 mm
 Length (inches) 78.74 inch
 Operating temperature range -25...120 °C
 Basic material PPE
 Slit gap 7.5 mm
 Slit width 5 mm
 UL 94 flammability rating V-0
 Usable cross-section 720 mm²
 Standards In accordance with DIN EN 50085
 Type of mounting when screwed in, with adhesive, riveted
