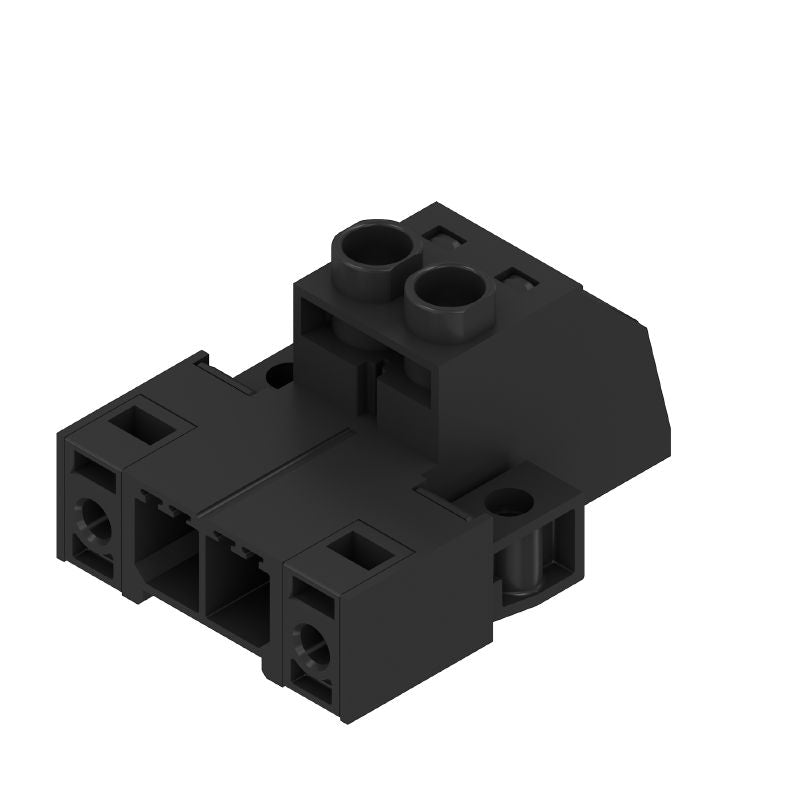

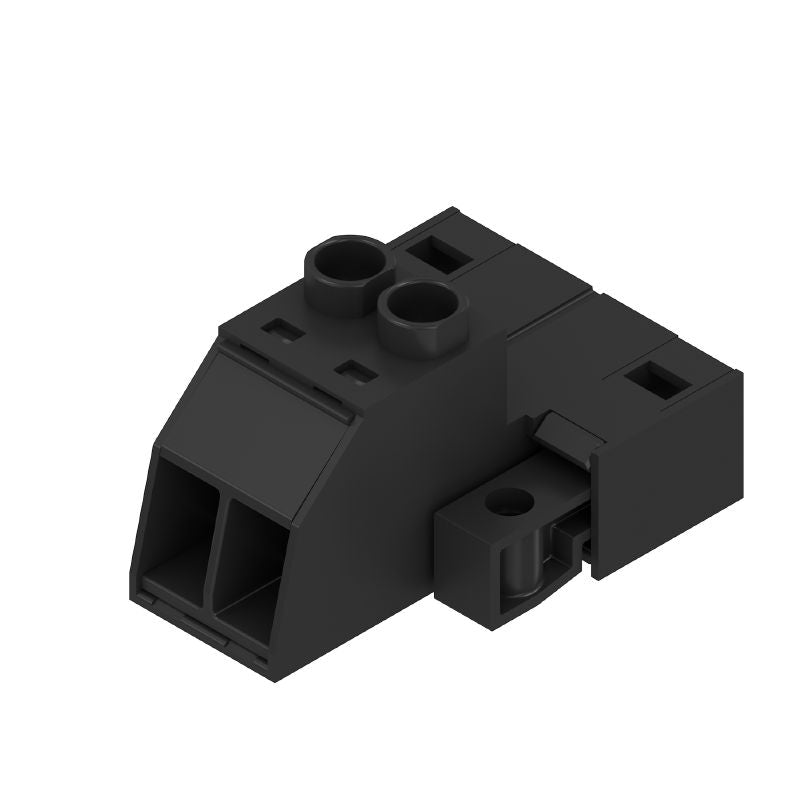

2566470000 - 7.62mm Male PCB Connector, 2-Pole, 180° Orientation (Pack of 100)

2566470000 - 7.62mm Male PCB Connector, 2-Pole, 180° Orientation (Pack of 100)

SKU: SKU: 2566470000   Download PDF

Select a Variant:
  • 2566470000 - 7.62mm Male PCB Connector, 2-Pole, 180° Orientation (Pack of 100)
Qty:
Regular price Now $399.54   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $399.54 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SVZ 762HP/02/180F SN BK BX SO, a reliable PCB plug-in connector specifically crafted for male plug applications With a 762 mm pitch, this connector features a two-pole setup oriented at 180°, ensuring optimal functionality It employs a clamping yoke connection for a secure fit and comes neatly packaged in a box Adhering to RoHS standards, this connector also meets UL requirements, identified by file number E60693, ensuring safety and compliance for your electronic projects.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Meets IEC standards with a rated voltage of 1000 V and rated current of 57 A.

    •Packaging includes 100 items per box.

    •Product family categorized under OMNIMATE Power - series BV/SV 7.62HP.

    •Has a protection degree of IP20.

    •Utilizes a clamping yoke connection for secure wire attachment.

Specifications:

 Rated Voltage (IEC) 1000 V
 Rated Current (IEC) 57 A
 Clamping Connection Yes
 Number of Poles 2
 Pitch 7.62 mm
 Operating Temperature Max 125 °C
 Storage Temperature Min -40 °C
 Net Weight 12.639 g
 Insulating Material PA GF
 CTI ≥ 500
 UL Rating 600 V / 42 A
