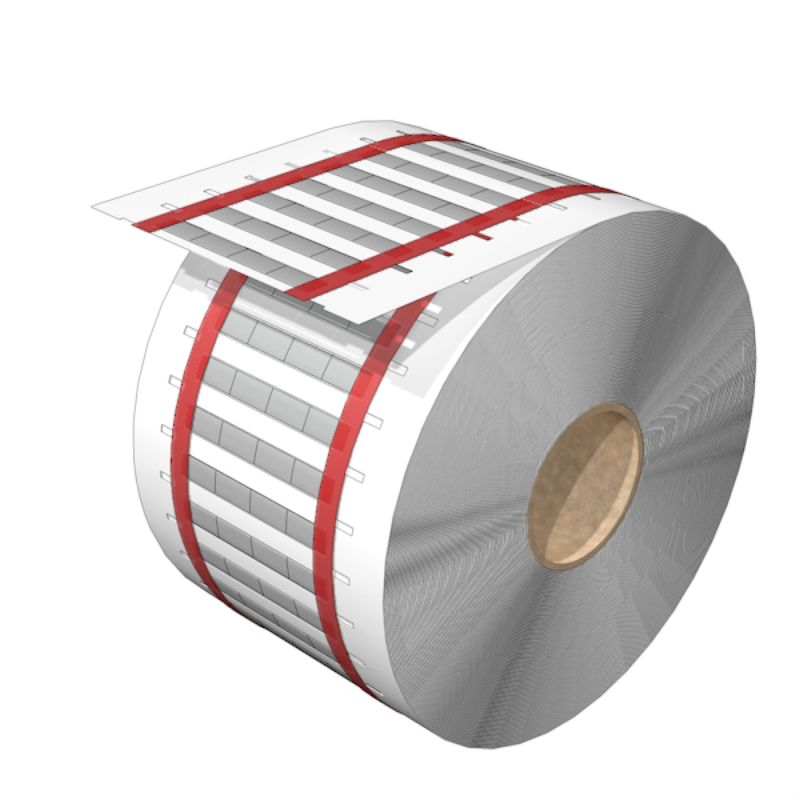

2526070000 - 12.7x6.2mm White Cable Markers for 1-3.2mm Conductors (Pack of 4000)

2526070000 - 12.7x6.2mm White Cable Markers for 1-3.2mm Conductors (Pack of 4000)

SKU: SKU: 2526070000 Download PDF

Variant:
  • 2526070000 - 12.7x6.2mm White Cable Markers for 1-3.2mm Conductors (Pack of 4000)
Regular price Now $688.24
Regular price BEFORE   $0.00 Sale price Now $688.24
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This set of conductor and cable markers, order number 2526070000, is specifically designed for conductor diameters measuring between 1 and 32 mm Each marker features dimensions of 127 x 62 mm and comes in a classic white color Meeting ROHS standards, these markers are made from durable polyolefine material, with no exemptions Additionally, they are free from any SVHC content exceeding 01 wt% Suitable for a wide temperature range, these markers function efficiently between -55 to 135 °C.

Features and Benefits:

    •Compliant with ROHS without exemption.

    •Operating temperature range between -55 °C and 135 °C.

    •Made from polyolefine.

    •Available in white color.

    •Capable of marking conductors with a maximum cross-section of 1.5 mm².

    •Compatible with printers THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK.

    •Halogen-free.

    •Plant manufacture.

    •Machinery.

Specifications:

 Conductor O.D. 1 - 3.2 mm
 Rate of shrinkage 3:1
 Recommended shrinking temperature 90 °C
 Number per roll 4000
 Conductor cross-section, max. 1.5 mm²
 Conductor cross-section, min. 0.5 mm²
 Operating temperature range, max. 135 °C
 Operating temperature range, min. -55 °C
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
