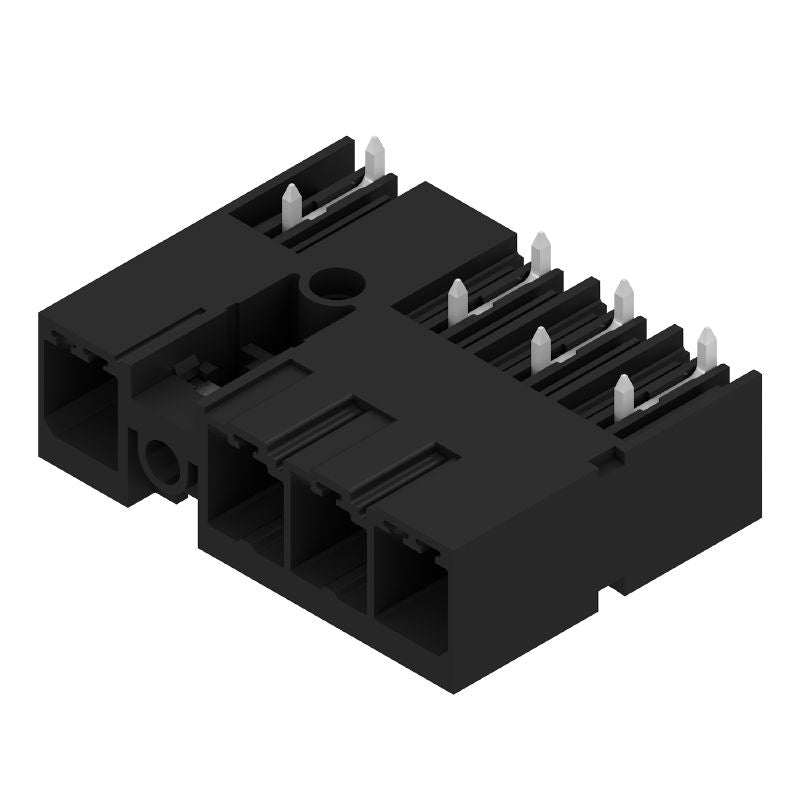

2500340000 - 7.62mm 4-Pole PCB Connector with Screw Flange, Tinned Pins (Pack of 48)

2500340000 - 7.62mm 4-Pole PCB Connector with Screw Flange, Tinned Pins (Pack of 48)

SKU: SKU: 2500340000   Download PDF

Select a Variant:
  • 2500340000 - 7.62mm 4-Pole PCB Connector with Screw Flange, Tinned Pins (Pack of 48)
Qty:
Regular price Now $210.99   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $210.99 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SV-SMT 762IT/04/270MSF2 male header PCB plug-in connector, featuring a reliable middle screw flange and designed for THT/THR solder connections With a pitch of 762 mm and accommodating 4 poles, this connector ensures efficient performance The tinned solder pins are 26 mm in length and come in a black finish Each unit is conveniently packaged in a protective box for easy storage and transport.

Features and Benefits:

    •Conforms to RoHS standards without exemptions.

    •Safe to the back of the hand above the PCB according to DIN VDE 57 106.

    •Touch-safe according to DIN VDE 0470 with an IP degree of protection of IP20.

    •Offers high sustainability with a moisture sensitivity level (MSL) of 1.

    •Compliant with recognised standards and norms.

    •Board connection.

Specifications:

 Number of poles 4
 Solder pin length (l) 2.6 mm
 Pitch in mm (P) 7.62 mm
 Rated voltage for surge voltage class / pollution degree II/2 1,000 V
 Rated current, max. number of poles (Tu=20°C) 41 A
 Storage temperature, min. -40 °C
 Operating temperature, max. 130 °C
 Volume resistance 2.00 mΩ
 Insulation resistance ≥ 10⁸ Ω
 UL 94 flammability rating V-0
 Protection degree IP20
