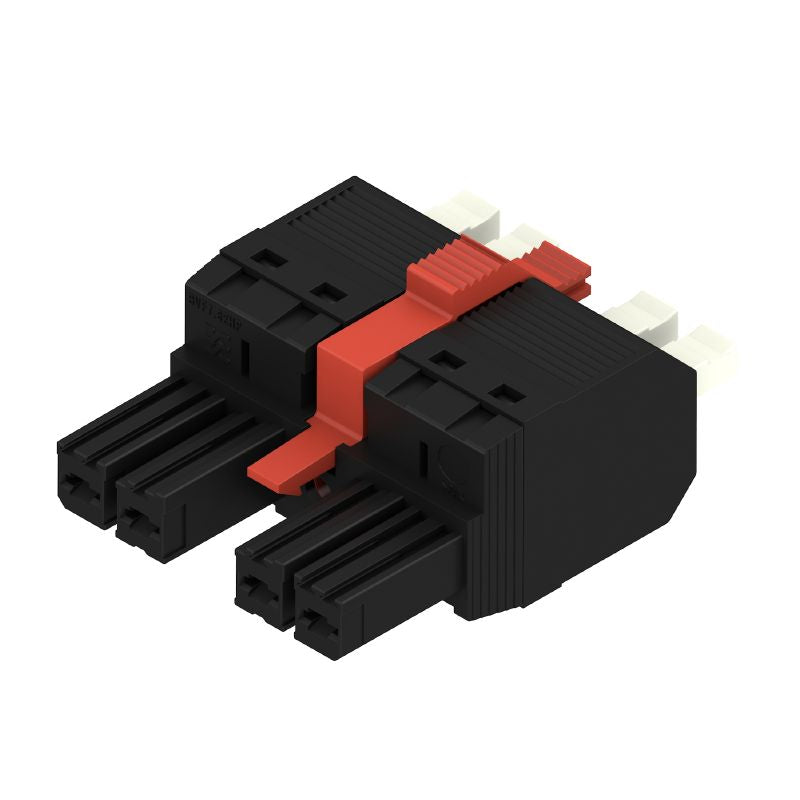

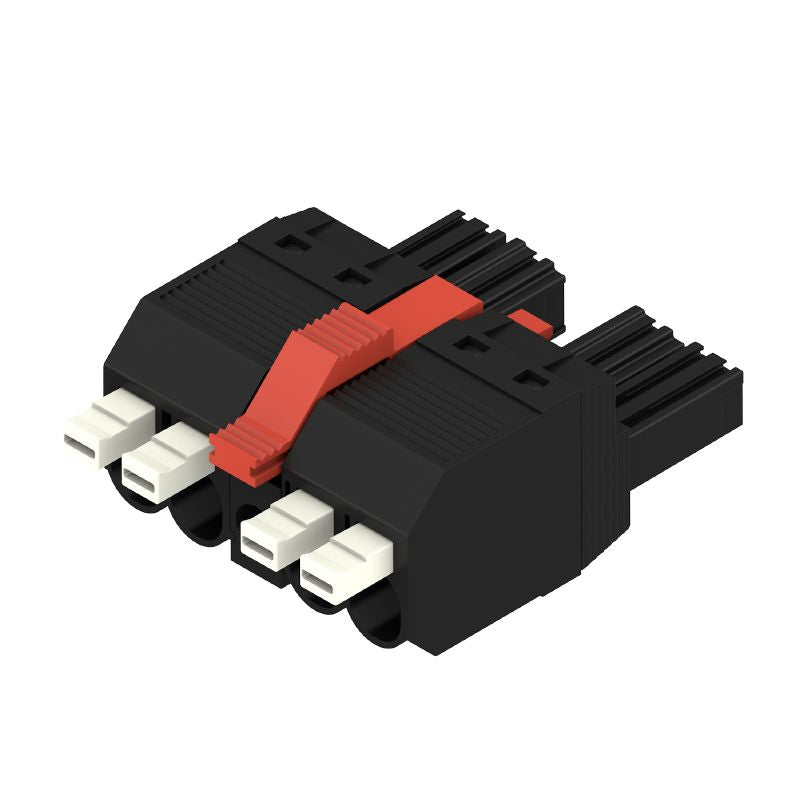

2452210000 - 7.62mm PCB Female Plug Connector, 4 Poles, 180° Angle (Pack of 48)

2452210000 - 7.62mm PCB Female Plug Connector, 4 Poles, 180° Angle (Pack of 48)

SKU: SKU: 2452210000   Download PDF

Select a Variant:
  • 2452210000 - 7.62mm PCB Female Plug Connector, 4 Poles, 180° Angle (Pack of 48)
Qty:
Regular price Now $385.39   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $385.39 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

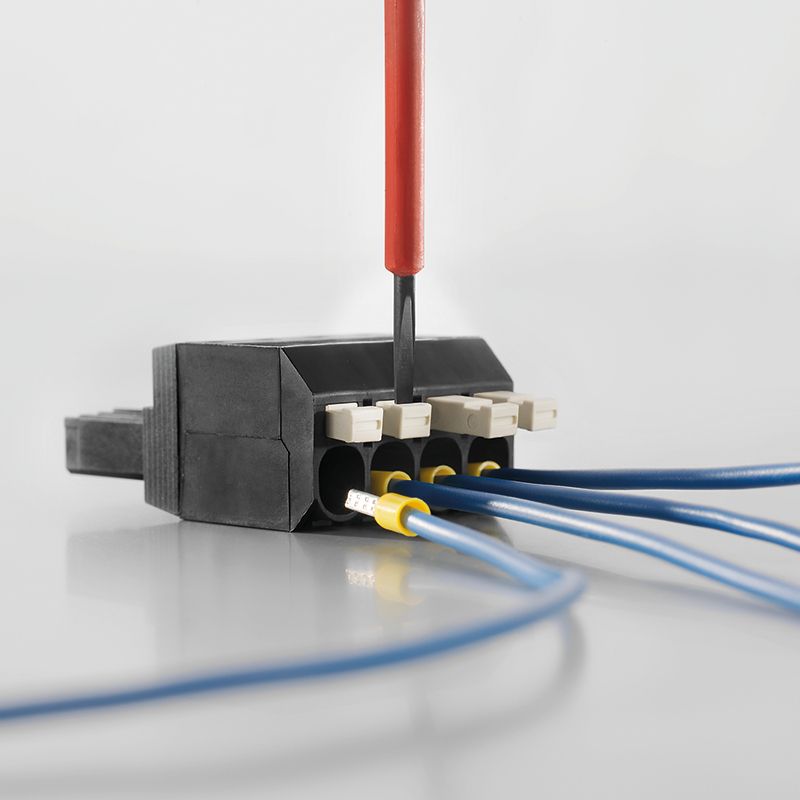

Introducing a precision-engineered female plug PCB connector, perfect for easy plug-in applications This connector boasts a pitch measurement of 762 mm and supports 4 poles arranged at a 180° angle Featuring a PUSH IN wire connection method with an actuator, it allows for a maximum conductor cross-section of 6 mm² Ideal for integration into a box package, this component ensures reliable performance in various installations.

Features and Benefits:

    •RoHS Compliant without exemption.

    •UL and CSA certifications.

    •Safe from finger touch according to DIN VDE standards.

    •Can be coded for connector configuration.

    •Utilizes a robust contact material of copper alloy.

    •Insulating material made of PA GF.

    •Temperature range installations from -25°C to 125°C.

    •Flexible and solid wire connection options from 0.5 to 6 mm².

Specifications:

 Type of connection Field connection
 Number of poles 4
 Rated voltage 1,000 V / 600 V

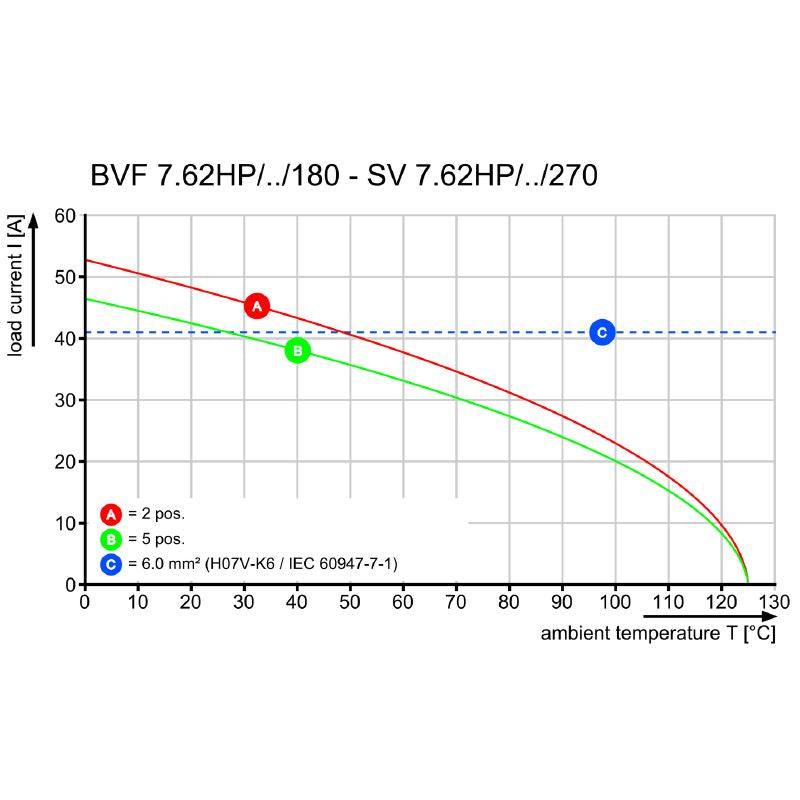

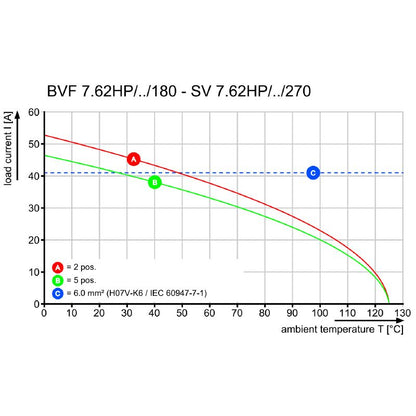

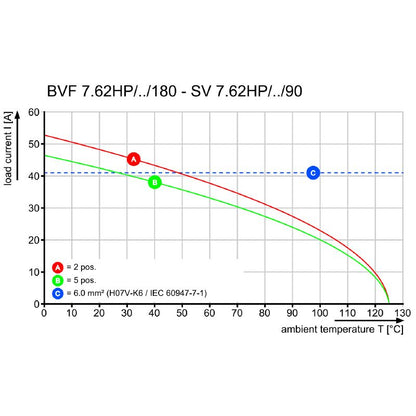

 Rated current 41 A / 39 A
 Clamping range 0.5 - 6 mm²
 Pitch in mm 7.62
 Protection degree IP20
 Storage temperature -40°C to 70°C
 Operating temperature -50°C to 125°C
 Volume resistance 4.50 mΩ
 Insulating material group II
 UL 94 flammability rating V-0
