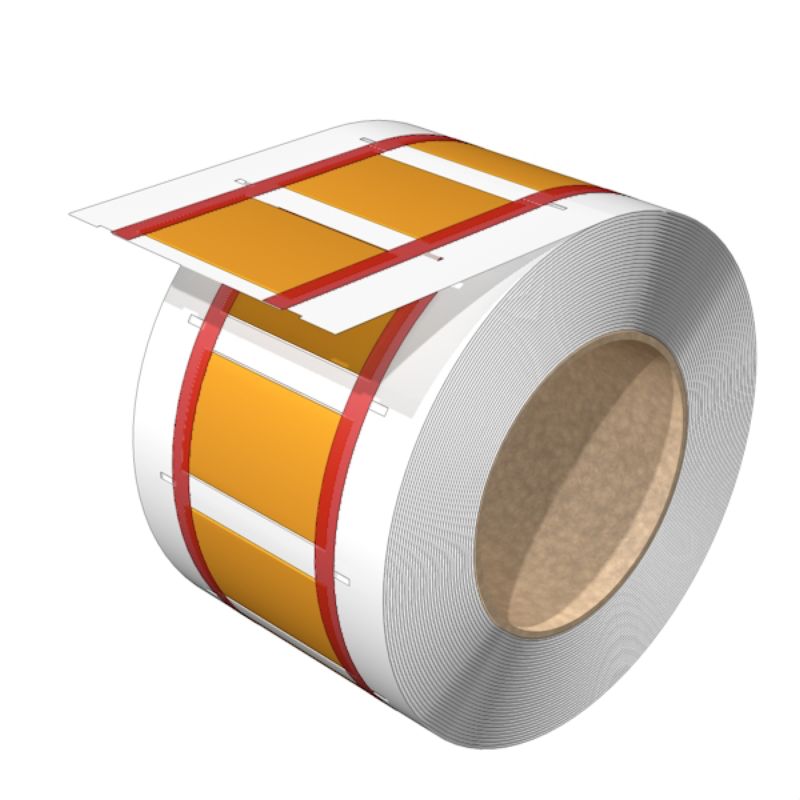

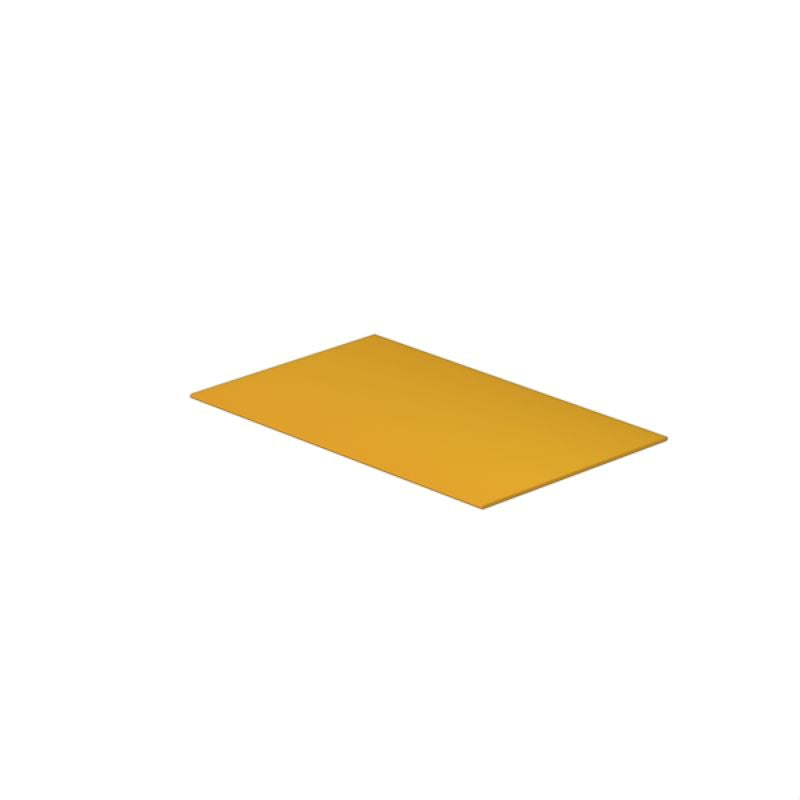

1961950000 - 50.8x31.8mm Polyolefine Cable Markers for 11-17mm Conductors (Pack of 1250)

1961950000 - 50.8x31.8mm Polyolefine Cable Markers for 11-17mm Conductors (Pack of 1250)

SKU: SKU: 1961950000 Download PDF

Variant:
  • 1961950000 - 50.8x31.8mm Polyolefine Cable Markers for 11-17mm Conductors (Pack of 1250)
Regular price Now $2,736.88
Regular price BEFORE   $0.00 Sale price Now $2,736.88
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

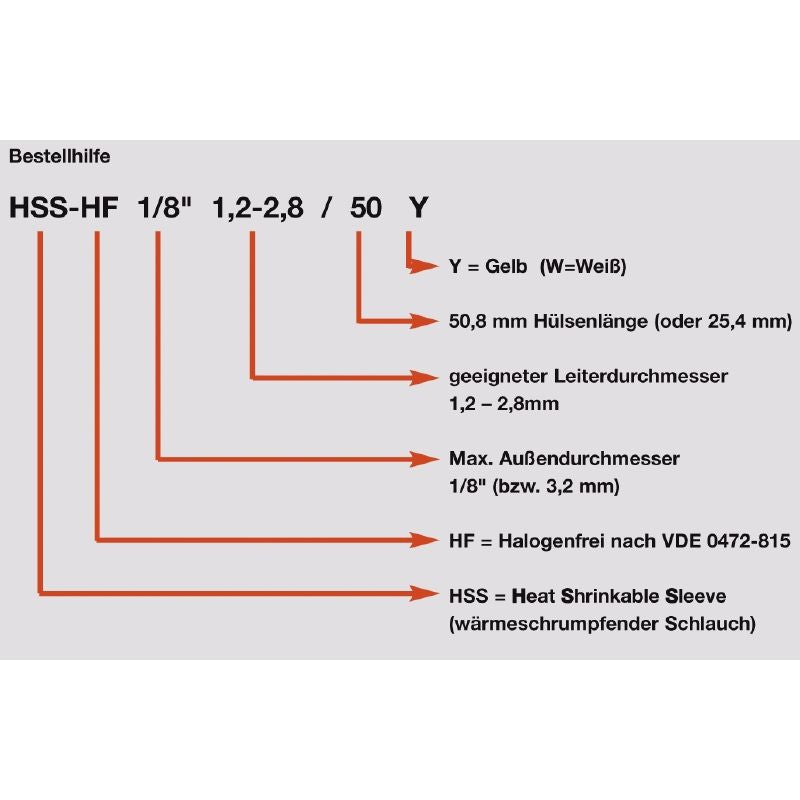

Introducing the HSS-HF 3/4 110-170/50Y, a reliable solution for conductor and cable marking This marker is specifically designed to fit conductor diameters between 11 mm and 17 mm, with overall dimensions of 508 x 318 mm Crafted from polyolefine material, it meets ROHS compliance standards, making it an excellent choice for applications in the transportation sector.

Features and Benefits:

    •Compliant with ROHS regulations.

    •Printed characters are neutral.

    •Rate of shrinkage is 2:1.

    •Recommended shrinking temperature is 90 °C.

    •Compatible with THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK printers.

    •Used as conductor and cable markers in the transportation industry.

Specifications:

 Depth 0.77 mm
 Height 50.8 mm
 Width 31.8 mm
 Operating temperature range -55...105 °C
 Conductor cross-section, max 70 mm²
 Conductor cross-section, min 35 mm²
 Conductor O.D. 11 - 17 mm
 Cross-section for connected wire 35 - 70 mm²
 Text field height 30.54 mm
 Text field width 50.8 mm
 Halogen No
