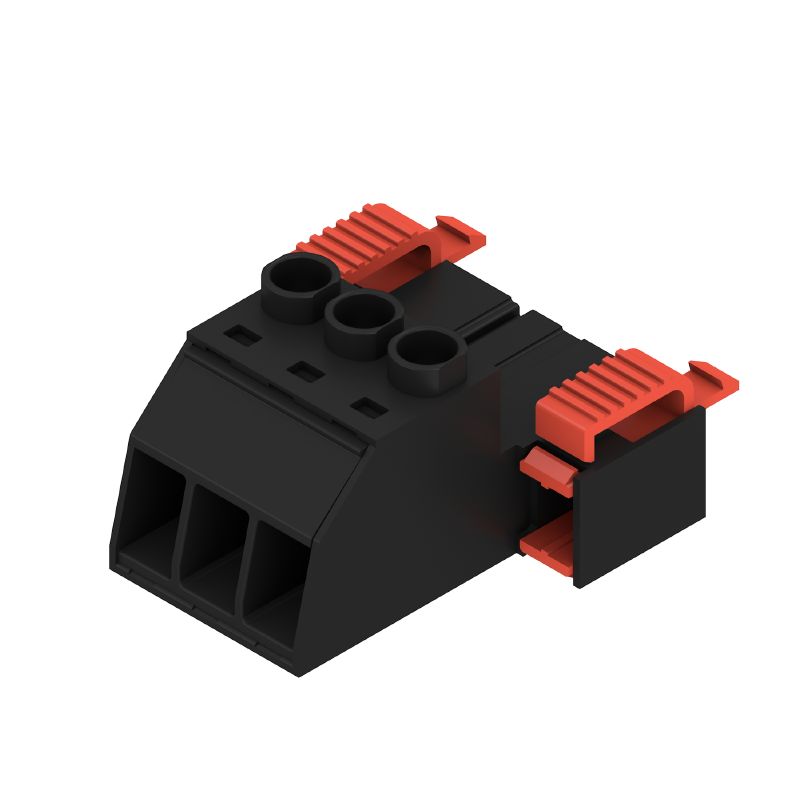

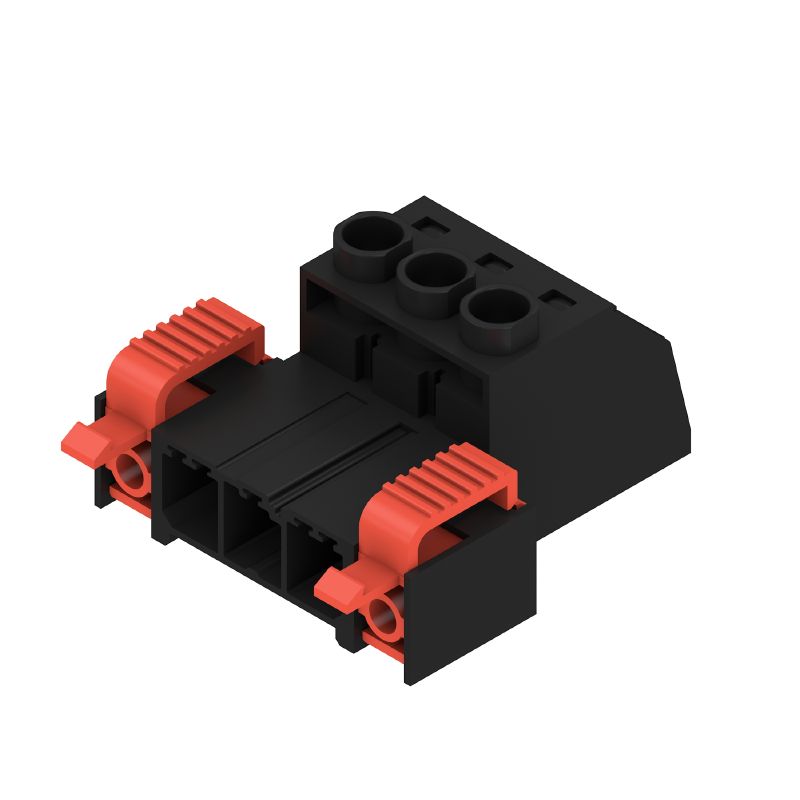

1950890000 - 7.62mm Male PCB Connector, 3 Pole, RoHS Certified (Pack of 100)

1950890000 - 7.62mm Male PCB Connector, 3 Pole, RoHS Certified (Pack of 100)

SKU: SKU: 1950890000   Download PDF

Select a Variant:
  • 1950890000 - 7.62mm Male PCB Connector, 3 Pole, RoHS Certified (Pack of 100)
Qty:
Regular price Now $575.88   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $575.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SVZ 762HP connector, a robust male plug ideal for PCB plug-in applications It features a spacing of 762 mm and is designed with a 180° orientation, accommodating three poles This connector employs a clamping yoke for secure connections and supports a maximum conductor size of 6 mm² With RoHS certification, it meets environmental standards and is packaged in a standard box for your convenience.

Features and Benefits:

    •Clamping yoke connection method.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded.

Specifications:

 Rated Voltage (IEC) 1000 V
 Rated Current (IEC) 57 A
 Clamping Range 0.2 - 6 mm²
 Protection Degree IP20
 Dimensions {'Depth': '47.28 mm', 'Height': '23.1 mm', 'Width': '38.1 mm'}
 Storage Temperature, min -40 °C
 Operating Temperature, max 125 °C
 Pitch 7.62 mm
 Number of Poles 3
 Plugging Cycles 25
