1933360000 - 7.62mm Female PCB Plug Connector for 5 Poles (Pack of 25)

1933360000 - 7.62mm Female PCB Plug Connector for 5 Poles (Pack of 25)

SKU: SKU: 1933360000   Download PDF

Select a Variant:
  • 1933360000 - 7.62mm Female PCB Plug Connector for 5 Poles (Pack of 25)
Qty:
Regular price Now $263.40   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $263.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

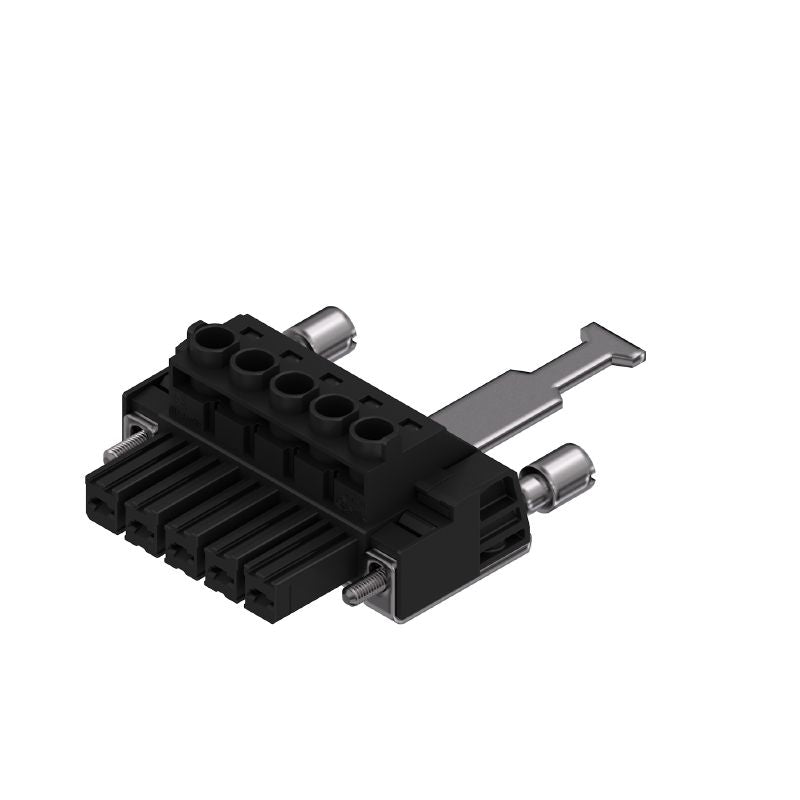

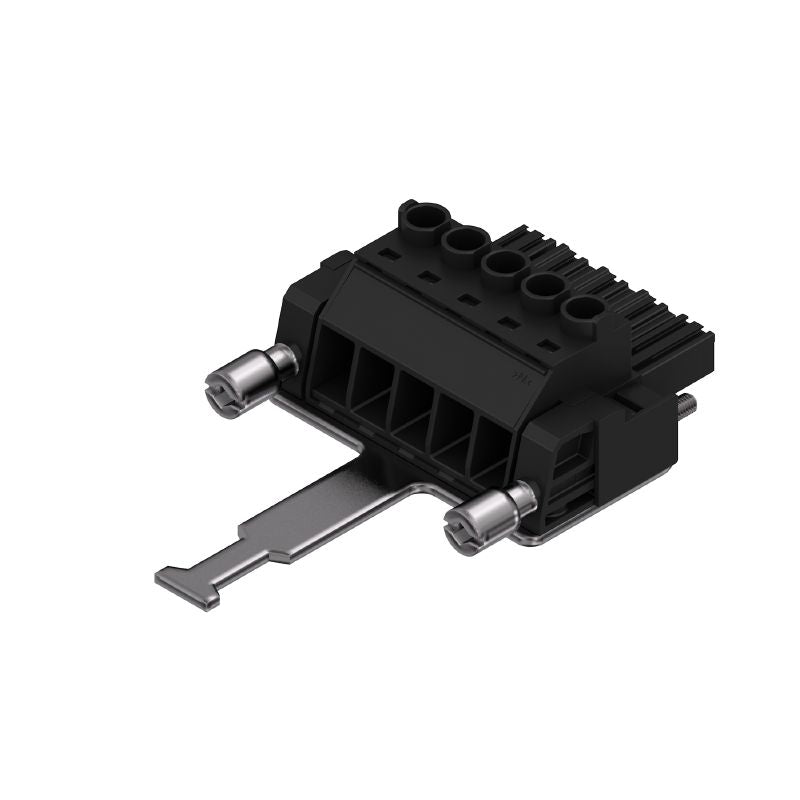

Presenting a female PCB plug-in connector engineered for a 762 mm pitch, this component accommodates up to 5 poles with a 180-degree angle connection Equipped with a clamping yoke for secure wire attachment, it can handle a maximum clamping range of 10 mm², making it a reliable choice for your electronic projects.

Features and Benefits:

    •Compliant with RoHS.

    •Temperature range during installation: -25 to 100 °C.

    •Approved to IEC standards.

    •Touch-safe protection according to DIN standards.

    •Can be coded for secure connections.

Specifications:

 Number of poles 5
 Clamping range, max 10 mm²
 Rated voltage (IEC) 1000 V
 Rated current (IEC) 57 A
 Rated voltage (UL) 600 V
 Rated current (UL) 40.5 A

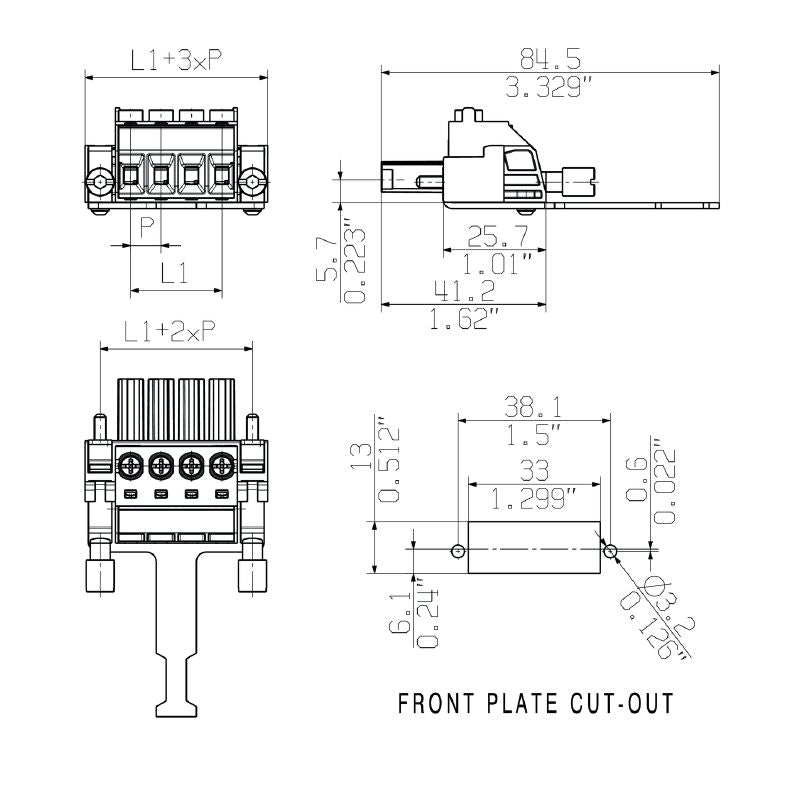

 Depth 84.6 mm
 Height 25 mm
 Width 53.34 mm
 Operating temperature, max 125 °C
 Storage temperature, max 70 °C
