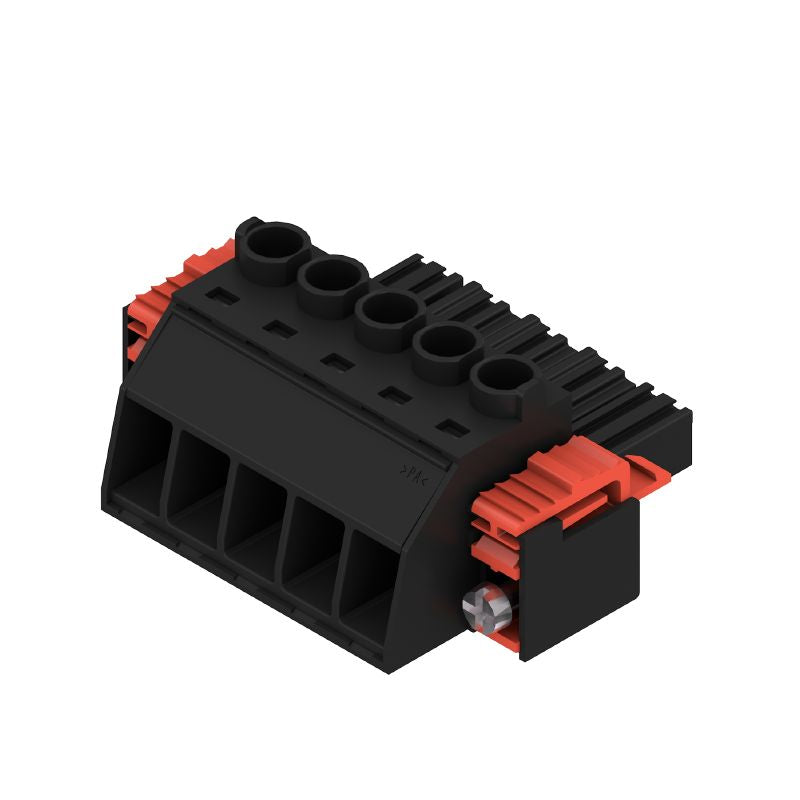

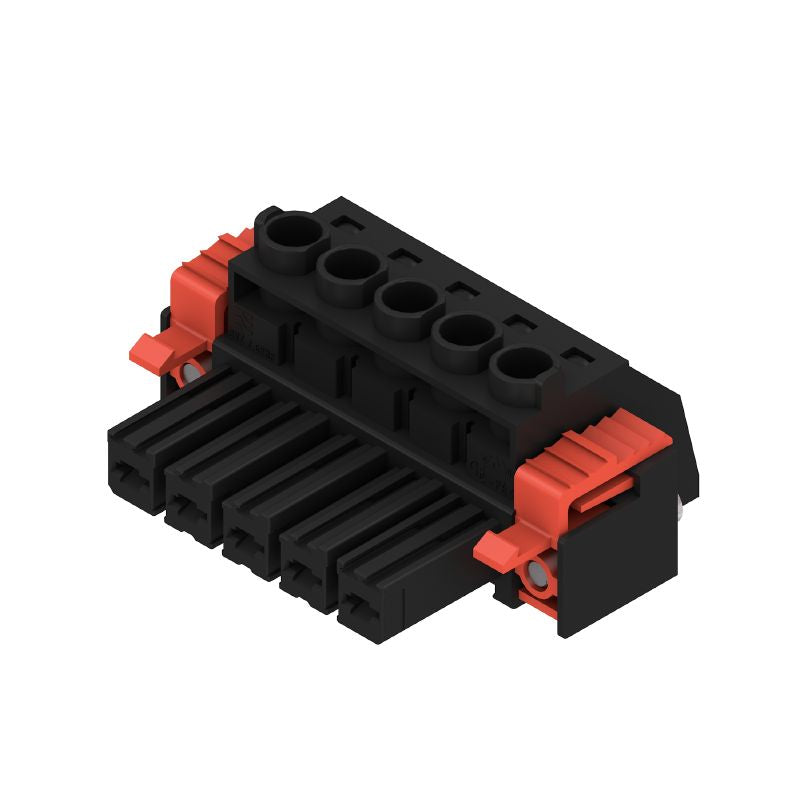

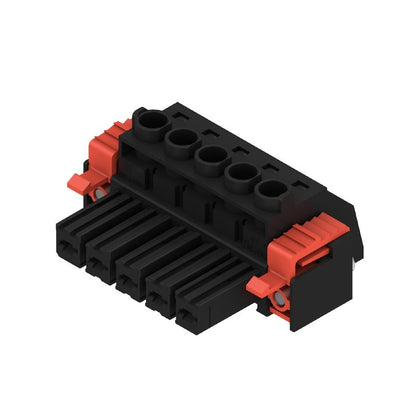

1930190000 - 7.62mm Plug-in Connector, 5 Poles, 180° Angle (Pack of 50)

1930190000 - 7.62mm Plug-in Connector, 5 Poles, 180° Angle (Pack of 50)

SKU: SKU: 1930190000   Download PDF

Select a Variant:
  • 1930190000 - 7.62mm Plug-in Connector, 5 Poles, 180° Angle (Pack of 50)
Qty:
Regular price Now $370.93   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $370.93 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the BVZ 762HP/05/180SF SN BK BX, a precision-engineered printed circuit board plug-in connector specifically crafted for female connections Measuring 762 mm in width, this connector features five poles arranged at a 180° angle It utilizes a robust clamping yoke connection suitable for both solid and stranded conductors, accommodating a maximum clamping capacity of 10 mm² Additionally, this connector meets RoHS standards and is certified by UL with certificate number E60693, ensuring compliance with safety and environmental regulations.

Features and Benefits:

    •Multiple conductor connection options, including both solid and flexible wires.

    •Designed for a variety of environmental conditions with a wide temperature range.

    •Compliant with international standards such as IEC 60664-1 for safety and performance.

    •Compact design allows for space-saving in electrical installations.

    •Used in various applications for connecting wires in circuit boards.

Specifications:

 Number of poles 5
 Rated voltage (IEC) 1000 V
 Rated current (IEC) 57 A
 Clamping range, max. 10 mm²
 Dimensions 42.1 mm depth, 23.1 mm height, 53.34 mm width
 Protection degree IP20
 Material PA GF
 Operating temperature, min. -50 °C
 Operating temperature, max. 125 °C
 Creepage distance, min. 13.8 mm
 Clearance, min. 10.2 mm
