1771380000 - Dark Beige 6mm² Terminal, 49.5mm Depth, Tension-Clamp Connection (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

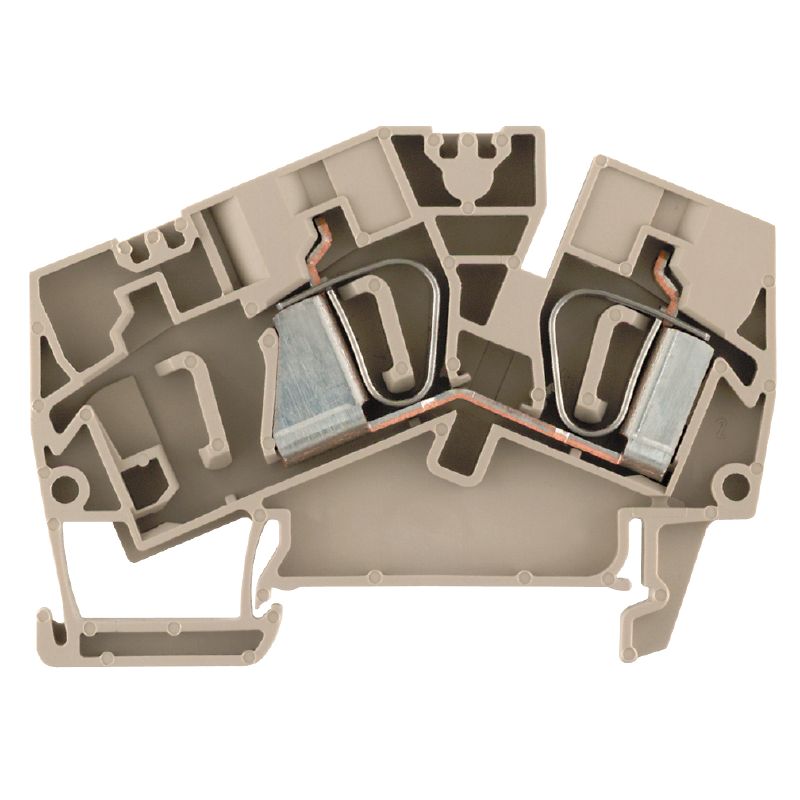

Introducing the ZDU 6-2/2AN feed-through terminal, expertly designed for a secure tension-clamp connection with a capacity of 6 mm² This terminal is rated for 800 V and can handle up to 41 A, all while showcasing an elegant dark beige hue Not only does it deliver dependable performance, but it's also compliant with ROHS regulations and carries a UL file number E60693 Measuring 495 mm in depth, 68 mm in height, and 8.

1 mm in width, this terminal is lightweight at just 1636 g It is capable of enduring a storage temperature range from -25 °C to 55 °C For operational conditions, it can sustain ambient temperatures between -5 °C and 40 °C, with continuous operating temperatures spanning from -50 °C to 120 °C Crafted from Wemid material, it boasts a V-0 flammability rating, ensuring safety and reliability Additionally, it’s suitable for ATEX and IECEX applications with a maximum rated voltage of 550 V and an impressive maximum current rating of 38 A.

Features and Benefits:

•RoHS compliant without exemption.

•Explosion-tested version.

•Simple snap-on mounting type.

•Tension-clamp connection design.

•One end without a connector.

•End cover plate required.

Specifications:
