7907410000 - Dark Beige Feed-Through Terminal, 800V, 41A, 6mm² (Pack of 50)

SKU: SKU: 7907410000 Download PDF

Select a Variant:

7907410000 - Dark Beige Feed-Through Terminal, 800V, 41A, 6mm² (Pack of 50)

SET THE QTY:

Now $110.98 Web pricing policy

~~BEFORE $0.00~~ Now $110.98 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

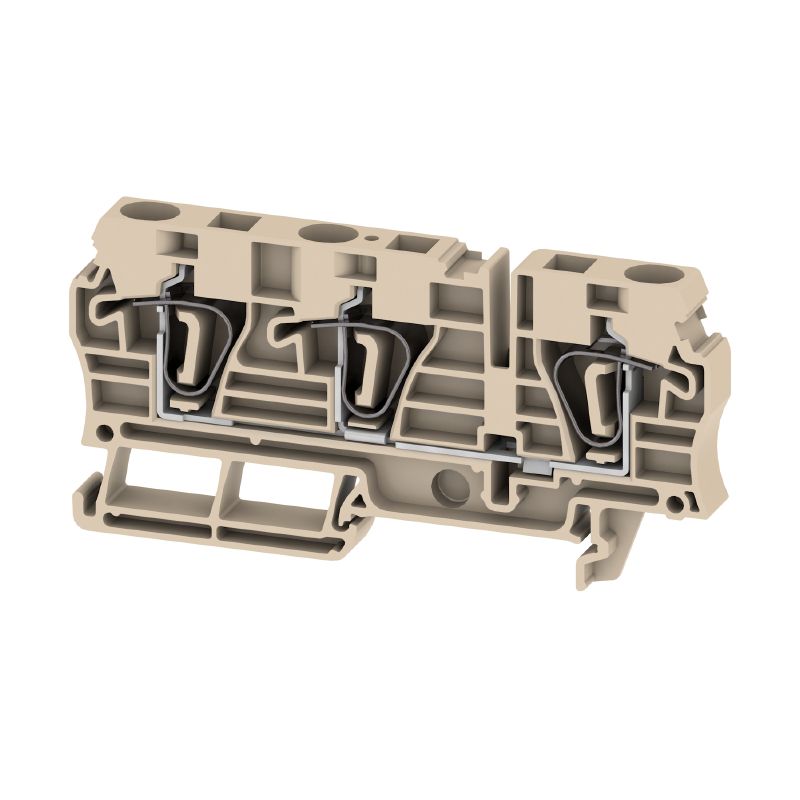

Introducing the ZDU 6/3AN feed-through terminal, a reliable component engineered with a tension-clamp connection suitable for wires with a cross-section of 6 mm² This terminal accommodates a maximum voltage of 800 V and supports a continuous current of 41 A, making it an excellent choice for various electrical applications It comes in an attractive dark beige hue and offers versatile mounting options.

With dimensions of 90 mm in height, 81 mm in width, and a depth of 45 mm, it fits seamlessly into your project Additionally, this product meets RoHS and REACH regulations, ensuring it aligns with eco-friendly standards.

Features and Benefits:

•Dark beige color.

•Tension-clamp connection for reliable electrical connections.

•Explosion-tested version available.

•Compliant with RoHS without exemptions.

•Flexible clamping range from 0.22 mm² to 10 mm².

Specifications:

Depth	45 mm
Height	90 mm
Width	8.1 mm
Net weight	26.89 g
Rated cross-section	6 mm²
Rated voltage	800 V
Rated current	41 A
Temperature range (storage)	-25 °C to 55 °C
Continuous operating temperature (min)	-60 °C
Continuous operating temperature (max)	130 °C
Number of potentials	1
Number of levels	1
Clamping range (max)	10 mm²
Clamping range (min)	0.22 mm²
Wire connection cross section (AWG, max)	AWG 8
Wire connection cross section (AWG, min)	AWG 22
