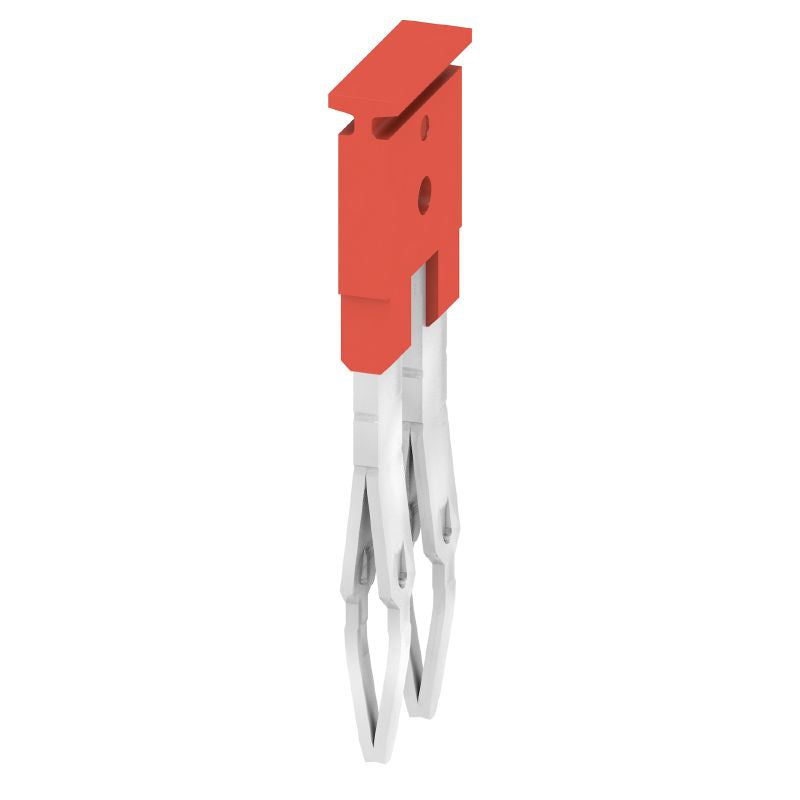

2714780000 - Compact 2-Pole Cross-Connector, 27.6mm Depth, RoHS Compliant (Pack of 60)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ZQV 25/2 RT cross-connector, specifically designed for 2-pole terminal configurations This versatile connector measures 276 mm in depth (1087 inches), 85 mm in height (0335 inches), and 28 mm in width (011 inches), making it compact and easy to integrate into various applications With a lightweight of just 12 g, it is perfect for minimizing overall weight in your setups Engineered to function optimally across a wide temperature range from -60 °C to 130 °C, it can be stored safely between -25 °C and 55 °C, and operates effectively in ambient conditions of -5 °C to 40 °C.

This connector adheres to RoHS standards and is free from any SVHC at levels above 01 wt% Made from durable Wemid material, it boasts a V-0 flammability rating for added safety Supporting a rated current of 24 A for both 2-pole and multi-pole arrangements, it offers reliability in electrical performance and safety for all your connection needs.

Features and Benefits:

•Cross-connector with 2 poles.

•Exploration-tested version not applicable.

•Plugged type of fixing.

•Reduced rated voltage to 400V when using cross connectors.

•Rated current of 24 A.

Specifications:
