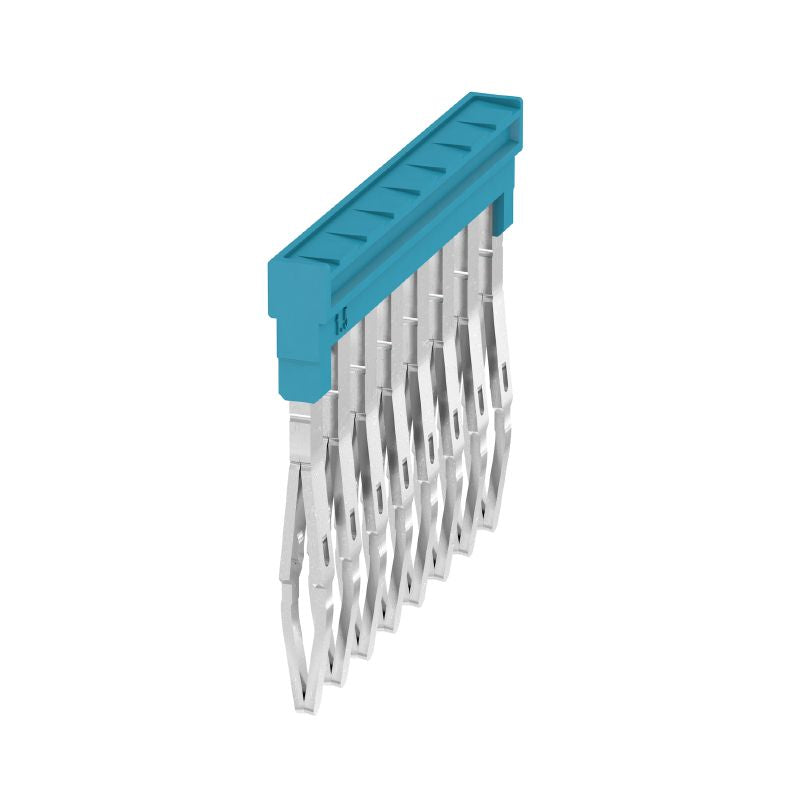

1985640000 - 8-Pole Blue Cross-Connector, 3.50mm Pitch, 17.5A Rated (Pack of 20)

Description:

Introducing a blue cross-connector engineered for reliable plugged connections, this component supports a current capacity of 175 A and features 8 poles with a 350 mm pitch With an insulation thickness providing durability, its dimensions measure 265 mm in width, ensuring a compact fit Environmentally friendly, it meets RoHS standards, affirming its commitment to sustainable manufacturing practices.

This versatile connector is designed to withstand storage temperatures between -25 °C and 55 °C and operates efficiently in ambient conditions ranging from -5 °C to 40 °C Its robust design allows for a minimum continuous operating temperature of -60 °C while it can handle peaks up to 130 °C Additionally, it boasts a UL 94 flammability rating of V-0, showcasing excellent flame resistance For optimal performance, it is essential to note that only 60% of the contact elements should be utilized to maintain stability and manage temperature effectively.

Be aware that removing connections may decrease the rated voltage of the device.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Explosion-tested version.

•Insulated for safety.

•Compact design with a width of 26.5 mm.
