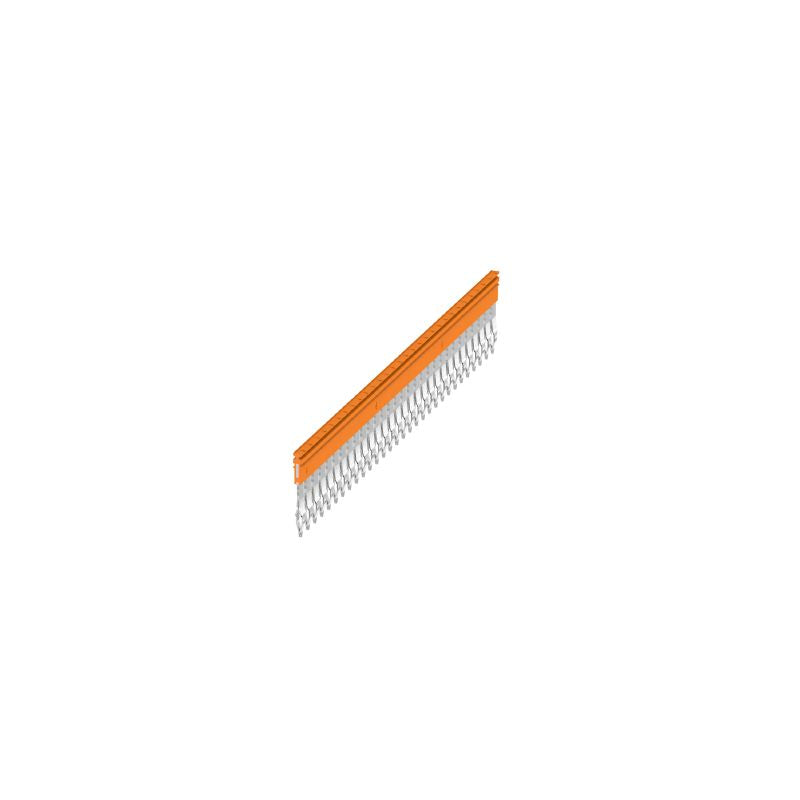

2561580000 - ZQV 4N/30 Cross-Connector, 181.7mm Wide, 32A Capacity (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ZQV 4N/30 cross-connector, a versatile electrical component designed for superior connectivity With a robust capacity of 32 A and featuring 30 poles spaced at a 610 mm pitch, this fully insulated connector ensures safety and efficiency Measuring at a width of 1817 mm, a depth of 2795 mm, and a height of just 28 mm, it's compact yet powerful This product adheres to RoHS standards and is free from any Substances of Very High Concern (SVHC) exceeding the specified weight thresholds.

Operating effectively within a wide range of temperatures, it can endure storage conditions from -25 °C to 55 °C, and functions at ambient temperatures between -5 °C and 40 °C, with a broader operating temperature of -60 °C to 130 °C Note that for stability and temperature reasons, only 60% of the contact elements are usable For cross connector applications, the rated voltage is capped at 400V, with voltage reductions to 25V available when employing blank edge cuts.

Upgrade your electrical connections with the reliable performance of the ZQV 4N/30.

Features and Benefits:

•Fully insulated.

•RoHS compliant without exemptions.

•Explosion-tested version.

•Rated for a significant current of 32 A.

Specifications:
