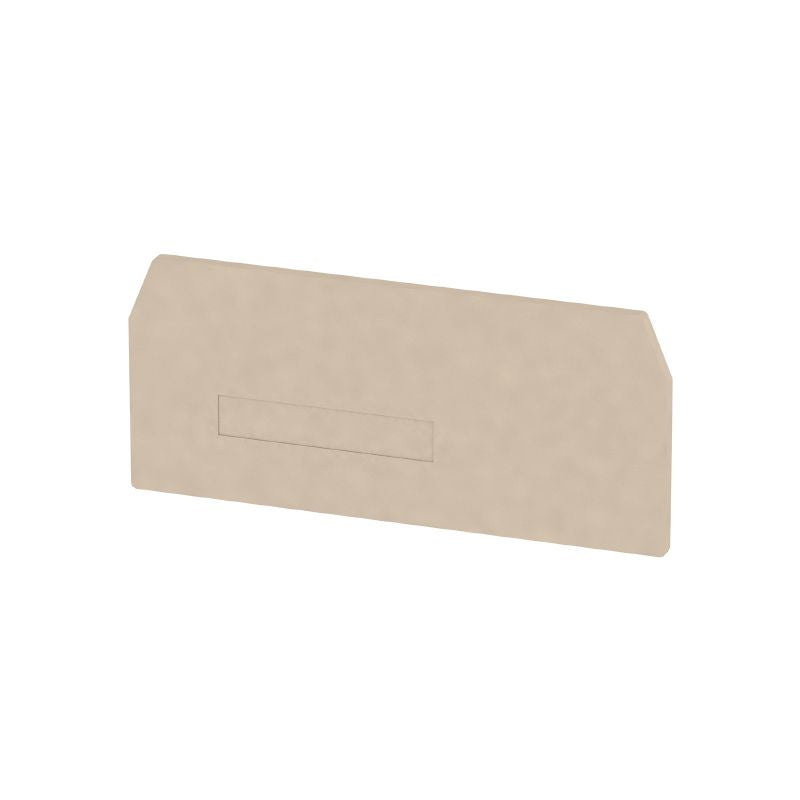

1749580000 - Direct Mount End Plate 43.45mm Depth, RoHS Compliant (Pack of 20)

SKU: SKU: 1749580000 Download PDF

Select a Variant:

1749580000 - Direct Mount End Plate 43.45mm Depth, RoHS Compliant (Pack of 20)

SET THE QTY:

Now $15.61 Web pricing policy

~~BEFORE $0.00~~ Now $15.61 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the ZAP/TW 10/16, an expertly crafted end and partition plate built for direct mounting applications With dimensions of 4345 mm in depth, 9908 mm in height, and a width of 27 mm, this component is both lightweight at 777 grams and efficient in operation across a range of temperatures It adheres to RoHS regulations and is free from any SVHC substances above 01 wt% Additionally, it features a minimal environmental impact, with a carbon footprint of just 0.

083 kg CO2 equivalent from cradle to gate.

Features and Benefits:

•Compliant with RoHS without exemption.

•Direct mounting installation.

•Snap-on design.

Specifications:

Depth	43.45 mm
Height	99.08 mm
Width	2.7 mm
Storage temperature	-25 °C to 55 °C
Ambient temperature	-5 °C to 40 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C
Basic material	Wemid
UL 94 flammability rating	V-0
TS 15 offset	17 mm
Classifications	{'ETIM 6.0': 'EC000886', 'ETIM 7.0': 'EC000886', 'ETIM 8.0': 'EC000886', 'ETIM 9.0': 'EC000886', 'ETIM 10.0': 'EC000886', 'ECLASS 9.0': '27-14-11-92', 'ECLASS 9.1': '27-14-11-33', 'ECLASS 10.0': '27-14-11-92', 'ECLASS 11.0': '27-14-11-92', 'ECLASS 12.0': '27-14-11-92', 'ECLASS 13.0': '27-25-03-01', 'ECLASS 14.0': '27-25-03-01', 'ECLASS 15.0': '27-25-03-01'}
