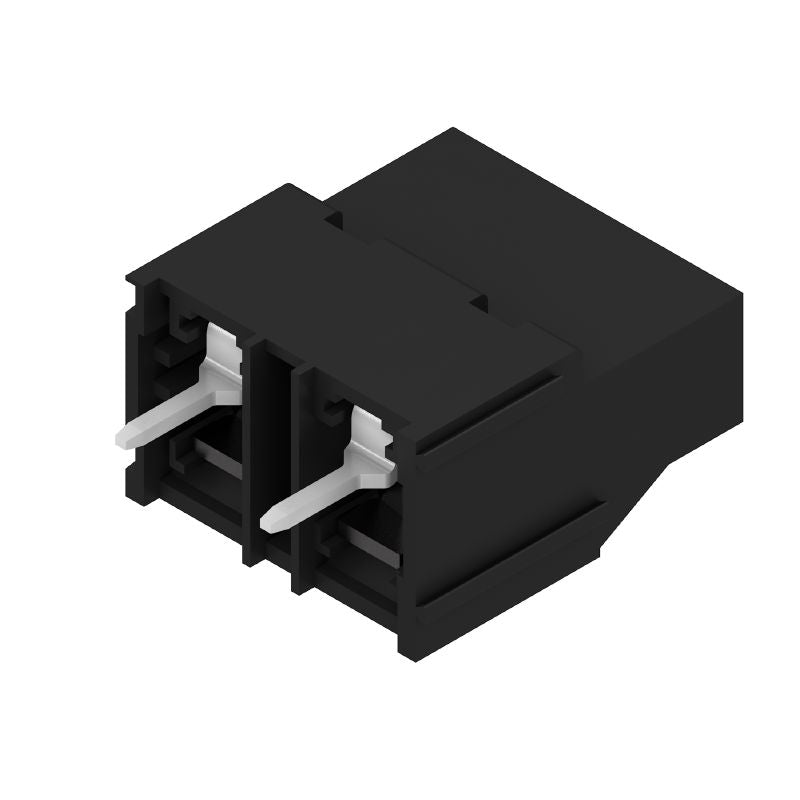

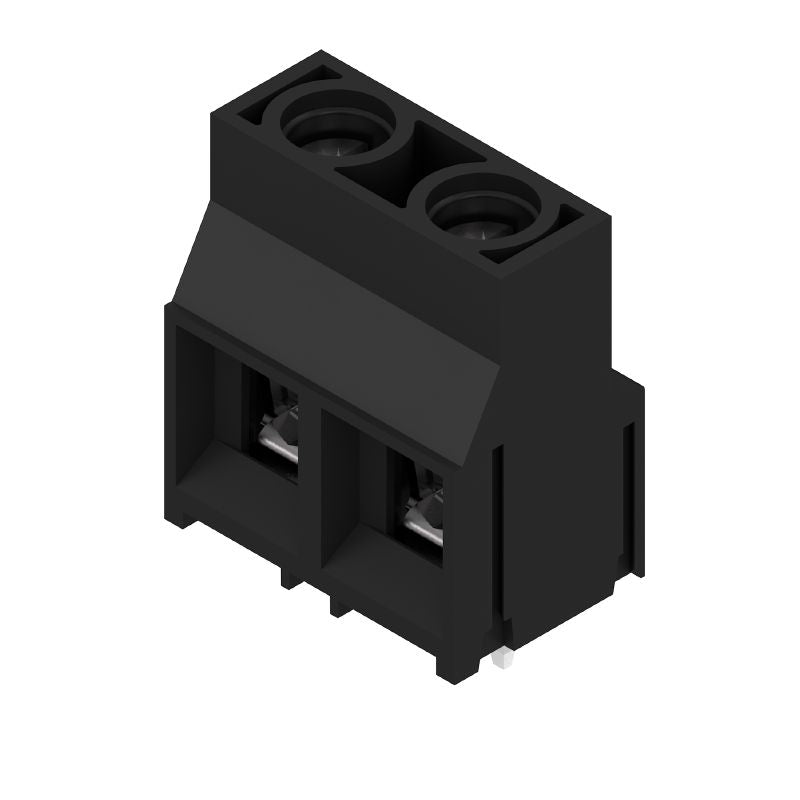

1724700000 - 9.52mm Circuit Board Terminal, 2 Poles, 90° Connection (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliability with this printed circuit board terminal, designed with a 952 mm pitch and accommodating 2 poles It features a 90° connection, equipped with a solder pin measuring 5 mm in length This terminal has a clamping range suitable for wires up to 6 mm² and utilizes a clamping yoke for secure connections With IEC certification, it supports a rated voltage of 1000 V and handles currents up to 32 A.

Under UL standards, it is rated for 300 V and 30 A Each terminal is conveniently packaged in a sturdy box for easy storage and transportation.

Features and Benefits:

•Designed for PCB usage with THT solder connection.

•WireReady property for easy wire connection.

•Touch-safe protection according to DIN VDE 0470.

•Conforms to RoHS requirements.

•Flexible in application with the ability to connect various conductor cross-sections.

Specifications:
