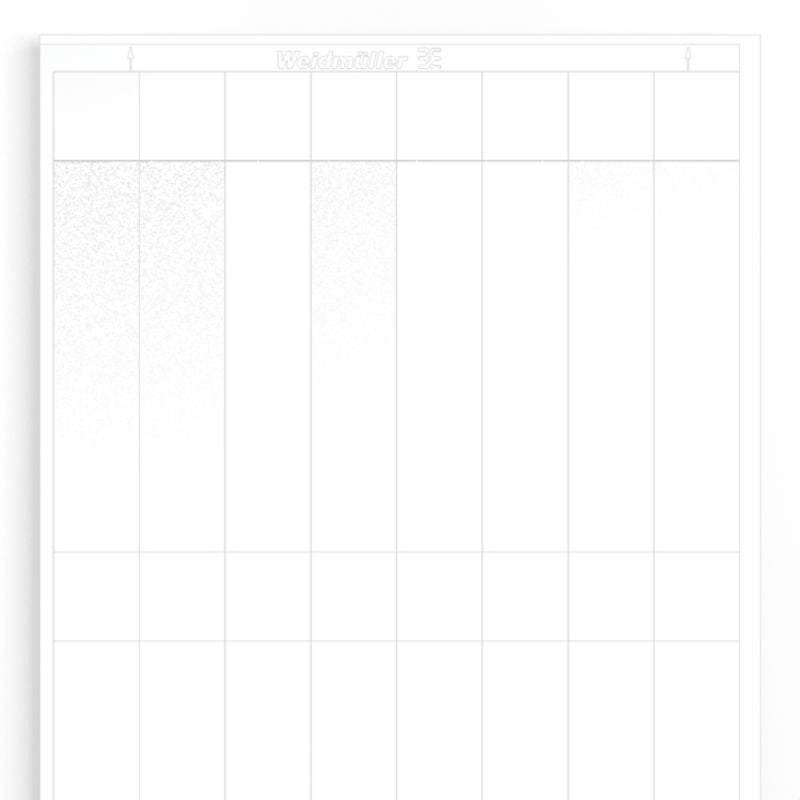

1712491044 - Self-Adhesive Cable Markers, 25x140mm, for 70-150 mm² Conductors (Pack of 10)

1712491044 - Self-Adhesive Cable Markers, 25x140mm, for 70-150 mm² Conductors (Pack of 10)

SKU: SKU: 1712491044 Download PDF

Variant:
  • 1712491044 - Self-Adhesive Cable Markers, 25x140mm, for 70-150 mm² Conductors (Pack of 10)
Regular price Now $123.71
Regular price BEFORE   $0.00 Sale price Now $123.71
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your organization with the LM WO 25/140 WS conductor and cable marker set, featuring dimensions of 25 x 140 mm in a clean white hue These markers are specifically crafted for conductor cross-sections ranging from 70 mm² to 150 mm², accommodating conductor diameters of 162 mm to 364 mm Constructed from durable polyester film and equipped with reliable acrylate adhesive, this self-adhesive solution ensures secure application.

Environmentally friendly and compliant with RoHS regulations, this product functions efficiently at temperatures spanning from -40°C to 150°C, making it suitable for various environments.

Features and Benefits:

    •Self-adhesive markers.

    •Made from durable polyester film.

    •Can be used with various conductor sizes.

    •Offers clear marking with a size of 25 x 26 mm.

Specifications:

 Depth 0.025 mm
 Height 25 mm
 Width 140 mm
 Net weight 10.2 g
 Operating temperature range -40...150 °C
 Adhesive Acrylate
 Halogen No
 Conductor cross-section, max 150 mm²
 Conductor cross-section, min 70 mm²
 Conductor O.D. 16.2 - 36.4 mm
 Size of labelling field 25 x 26 mm
 UL 94 flammability rating V-0
 Number of markers per packaging unit 160
 Number per sheet 16
