1695741687 - 150 Self-Adhesive Cable Markers, 9.5-22.3mm, 36x93mm, Yellow (Pack of 10)

1695741687 - 150 Self-Adhesive Cable Markers, 9.5-22.3mm, 36x93mm, Yellow (Pack of 10)

SKU: SKU: 1695741687 Download PDF

Variant:
  • 1695741687 - 150 Self-Adhesive Cable Markers, 9.5-22.3mm, 36x93mm, Yellow (Pack of 10)
Regular price Now $123.71
Regular price BEFORE   $0.00 Sale price Now $123.71
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Organize your workspace efficiently with this set of self-adhesive conductor and cable markers, sized at 36 x 93 mm These markers accommodate conductor diameters ranging from 95 to 223 mm Crafted from durable polyester film and featuring an acrylate adhesive, they meet RoHS standards for safety and environmental compliance Each sheet contains 15 individual markers, with a total of 150 included in the set.

Capable of operating in temperatures between -40 and 150 °C, these markers are designed for effective identification of cables and conductors, ensuring clarity without printed text.

Features and Benefits:

    •Self-adhesive labels for easy application.

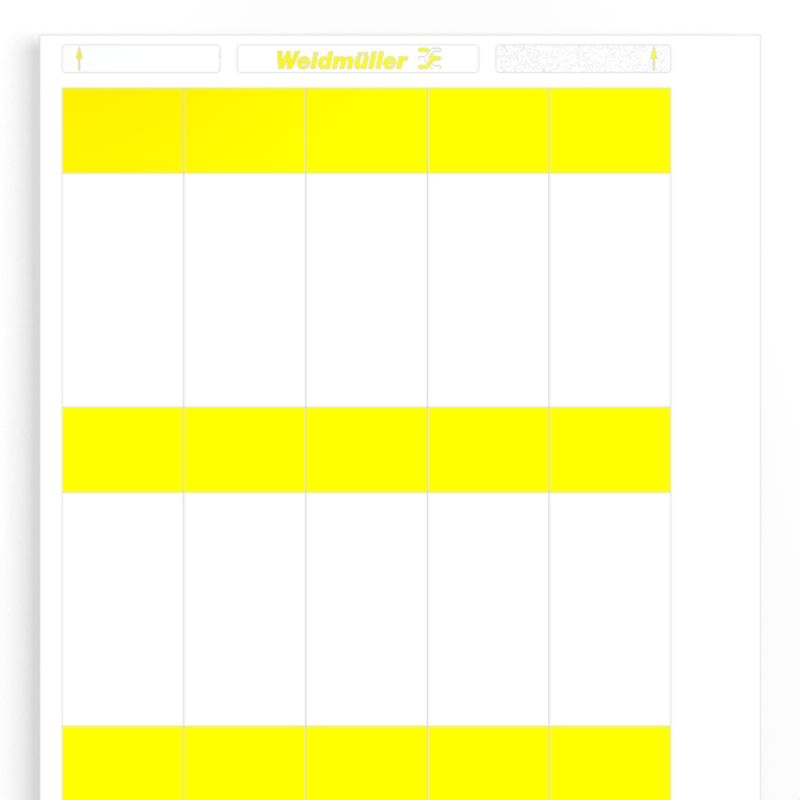

    •Each label sheet includes 15 markers.

    •Total of 150 markers per packaging unit.

    •RoHS compliant without exemption.

    •No halogen content.

Specifications:

 Depth: 0.025 mm
 Height: 36 mm
 Width: 93 mm
 Operating temperature range: -40...150 °C
 Conductor cross-section, min.: 25 mm²
 Conductor cross-section, max.: 120 mm²
 Conductor O.D., min.: 9.5 mm
 Conductor O.D., max.: 22.3 mm
 Size of labelling field: 36 x 25 mm
 Text field height: 25 mm
 Text field width: 35.5 mm
 UL 94 flammability rating: V-0
