1683470000 - Grey 2.5mm² Feed-Through Terminal, 800V, 24A Tension-Clamp (Pack of 100)

SKU: SKU: 1683470000 Download PDF

Select a Variant:

1683470000 - Grey 2.5mm² Feed-Through Terminal, 800V, 24A Tension-Clamp (Pack of 100)

SET THE QTY:

Now $178.64 Web pricing policy

~~BEFORE $0.00~~ Now $178.64 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

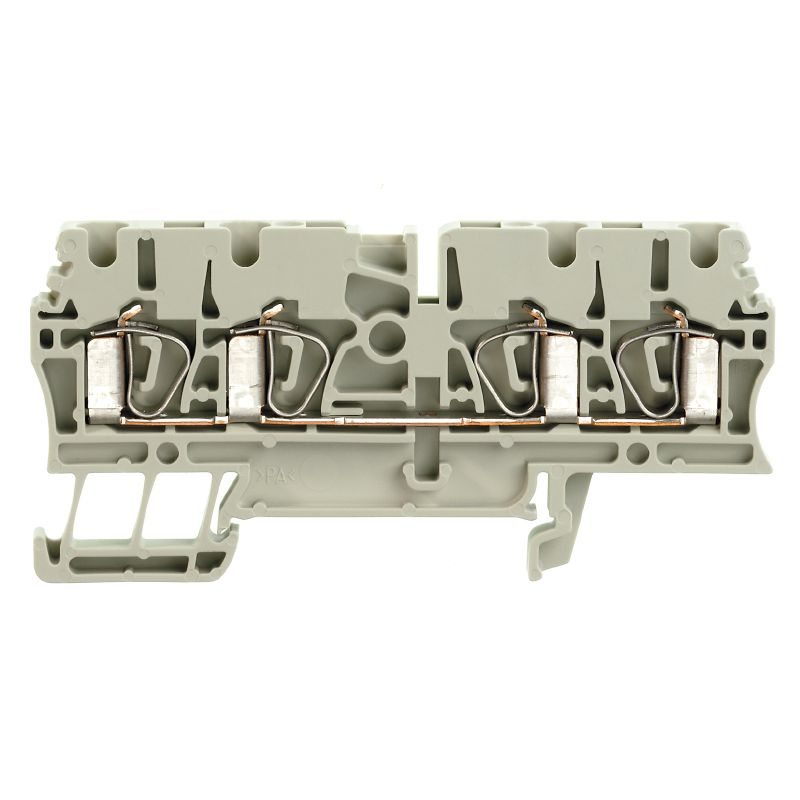

Introducing the ZDU 25/4AN GR feed-through terminal, expertly designed to ensure secure connections with its reliable tension-clamp design Rated for 25 mm² conductors, it supports voltages up to 800 V and currents up to 24 A, making it a robust choice for various applications Finished in an understated grey, this terminal also meets RoHS compliance standards, reflecting its commitment to environmental safety.

Features and Benefits:

•RoHS compliant without exemption.

•Explosion-tested version.

•Mounting rail TS 35.

•Snap-on type of mounting.

Specifications:

Depth	38.5 mm
Height	79.5 mm
Width	5.1 mm
Storage temperature	-25 °C...55 °C
Ambient temperature	-5 °C…40 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C
Basic material	Wemid
Color	grey
Rated cross-section	2.5 mm²
Rated voltage	800 V
Nominal current	24 A
Max. voltage (ATEX)	550 V
Max. voltage (IECEX)	550 V
UL File Number	E60693
CSA rating data	{'Current size B': '27 A', 'Current size C': '27 A', 'Voltage size B': '600 V', 'Wire cross section max. (CSA)': '12 AWG', 'Wire cross section min. (CSA)': '26 AWG'}
