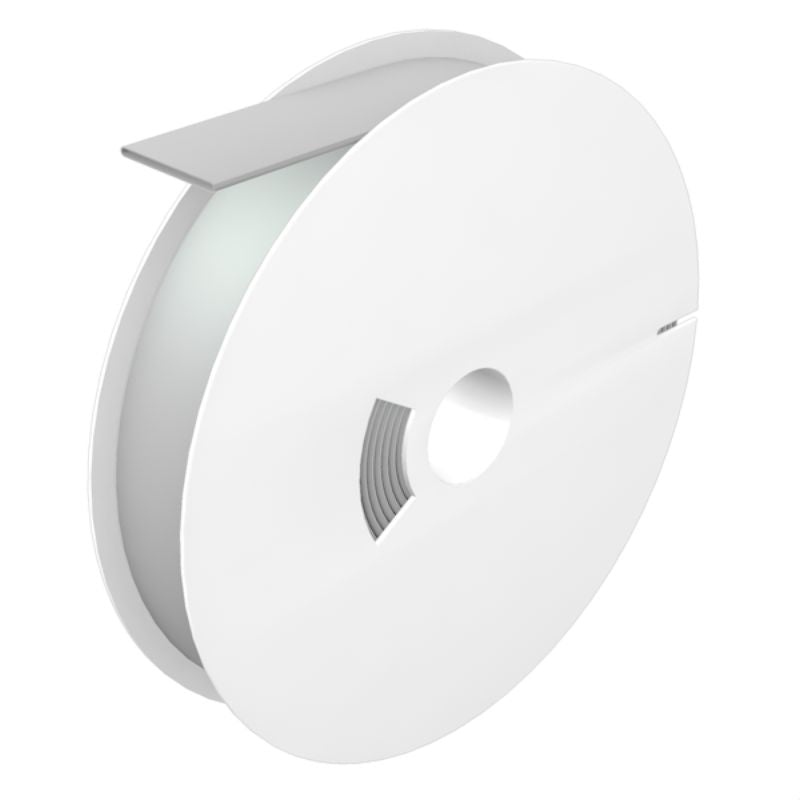

1513330000 - 30,000mm White Cable Marker for 12.7-25.4mm Conductors

1513330000 - 30,000mm White Cable Marker for 12.7-25.4mm Conductors

SKU: SKU: 1513330000 Download PDF

Variant:
  • 1513330000 - 30,000mm White Cable Marker for 12.7-25.4mm Conductors
Regular price Now $471.68
Regular price BEFORE   $0.00 Sale price Now $471.68
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HSS-HF 127-254EL W30M conductor and cable marker, an essential tool for your labeling needs that meets RoHS compliance standards With a generous length of 30,000 mm, this marker is suitable for a range of conductor diameters from 127 mm to 254 mm It is compatible with various printers, including the THM MULTIMARK, THM MULTIMARK PLUS, and THM-TWINMARK Crafted from durable polyolefine material, this marker comes in a classic white color, making it a reliable choice for clear and professional labeling.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Made from polyolefine.

    •Compatible with THM MULTIMARK, THM MULTIMARK PLUS, THM-TWINMARK printers.

    •No halogen content.

    •Printed characters are neutral without.

    •Rate of shrinkage is 2:1.

Specifications:

 Depth 1.5 mm
 Width 40.5 mm
 Length 30,000 mm
 Operating temperature range -55...105 °C
 Conductor cross-section, max 120 mm²
 Conductor cross-section, min 35 mm²
 Conductor O.D. 12.7 - 25.4 mm
 Cross-section for connected wire 35 - 120 mm²
 Recommended shrinking temperature 90 °C
 Important note External roll holder 1302920000 necessary
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 9.1 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
