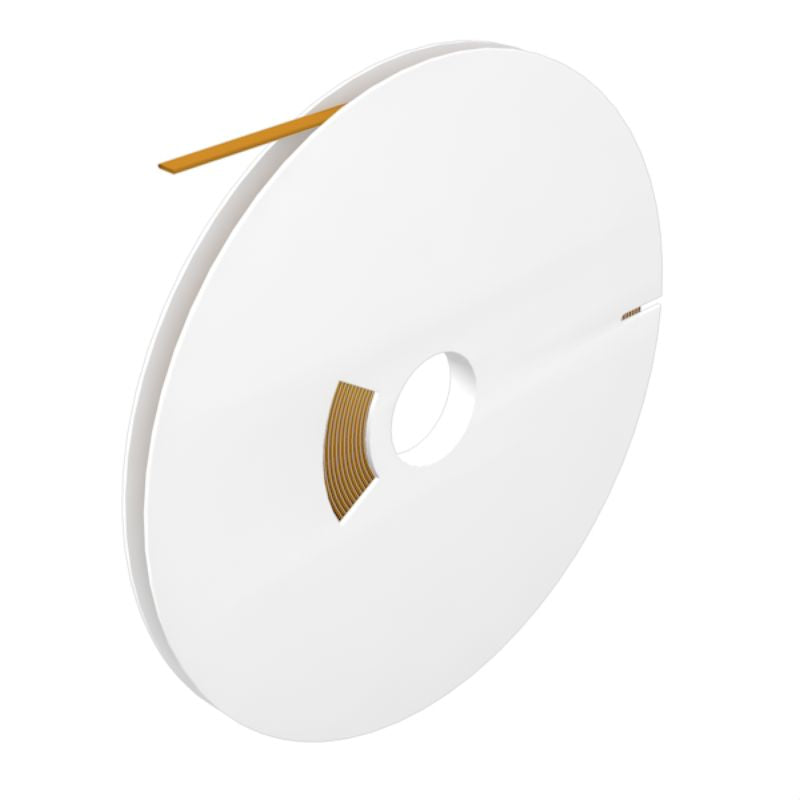

1505780000 - Yellow Cable Marker for 1.6-4.8mm Conductor, RoHS Compliant

1505780000 - Yellow Cable Marker for 1.6-4.8mm Conductor, RoHS Compliant

SKU: SKU: 1505780000 Download PDF

Variant:
  • 1505780000 - Yellow Cable Marker for 1.6-4.8mm Conductor, RoHS Compliant
Regular price Now $112.84
Regular price BEFORE   $0.00 Sale price Now $112.84
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HSS 16-48 EL Y30M cable and conductor marker, featuring a vibrant yellow hue and adheres to RoHS regulations This versatile marker can handle conductor diameters from 16 mm up to 48 mm, making it an excellent choice for diverse applications in sectors like plant manufacturing and machinery.

Features and Benefits:

    •Temperature range of -55 to 135 °C.

    •Halogen-free.

    •Rate of shrinkage is 3:1.

    •Recommended shrinking temperature of 90 °C.

    •Compatible with THM MULTIMARK printers.

    •Plant manufacture.

    •Machinery.

Specifications:

 Conductor cross-section, max. 4 mm²
 Conductor cross-section, min. 0.75 mm²
 Conductor O.D. 1.6 - 4.8 mm
 Conductor O.D., max. 4.8 mm
 Conductor O.D., min. 1.6 mm
 Cross-section for connected wire 0.75 - 4 mm²
 Depth 0.77 mm
 Width 7.6 mm
 Length 30,000 mm
 Net weight 190 g
 Basic material Polyolefine
 Important note External roll holder 1302920000 necessary
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 9.1 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
