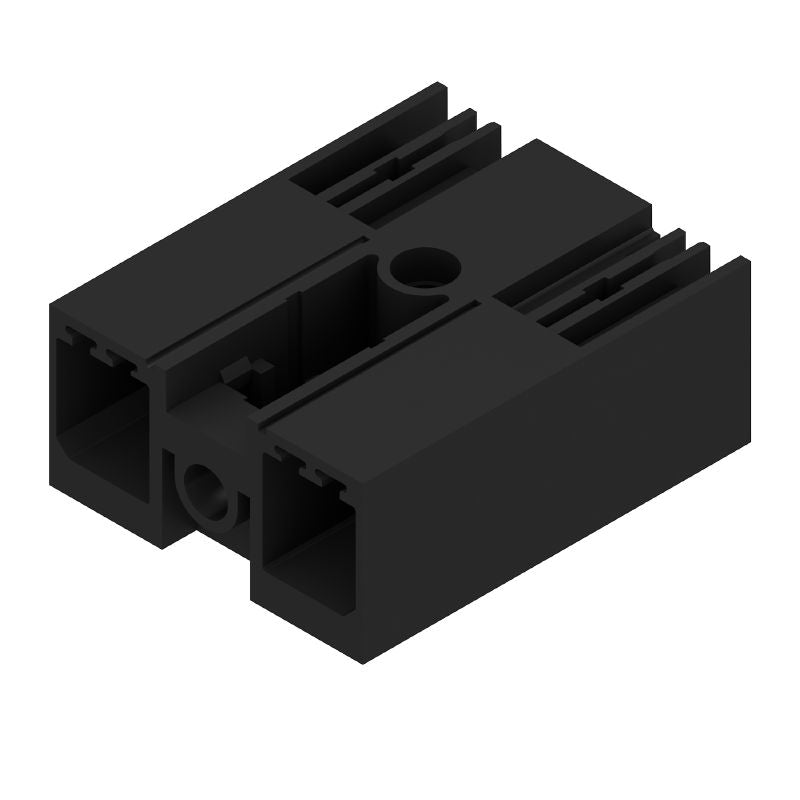

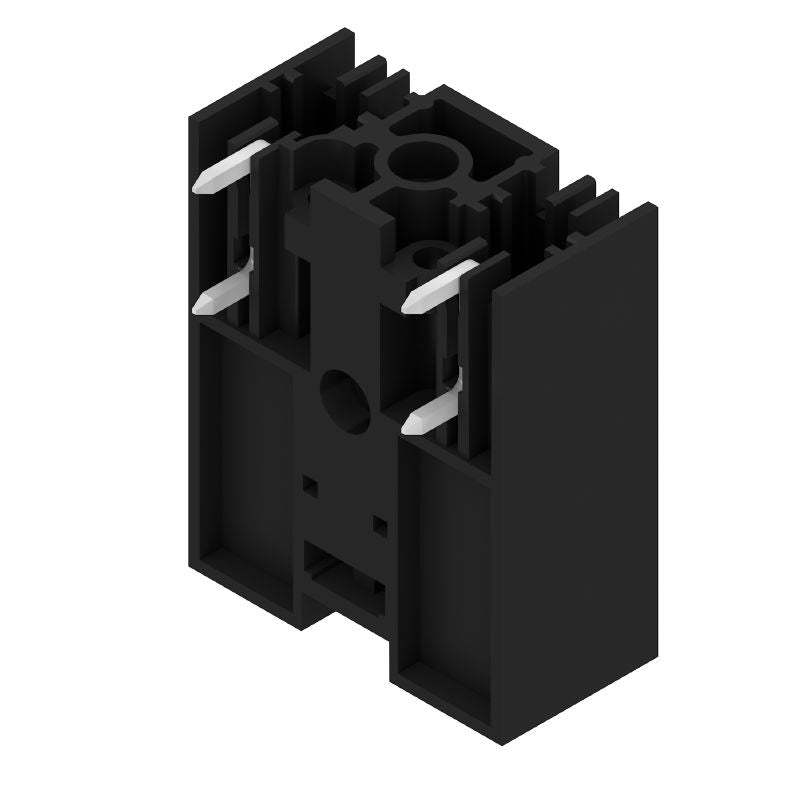

1156540000 - 7.62mm PCB Male Header Connector with Tinned Black Finish (Pack of 78)

1156540000 - 7.62mm PCB Male Header Connector with Tinned Black Finish (Pack of 78)

SKU: SKU: 1156540000   Download PDF

Select a Variant:
  • 1156540000 - 7.62mm PCB Male Header Connector with Tinned Black Finish (Pack of 78)
Qty:
Regular price Now $171.72   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $171.72 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a robust male header PCB plug-in connector, perfect for THT solder applications This connector is engineered with a closed side and a central flange, boasting a space-efficient pitch of 762 mm Featuring two poles, it offers solder pin lengths of 35 mm, all crafted from tinned black material for enhanced durability Packaged securely in a box, this connector adheres to RoHS regulations, ensuring it meets environmentally-friendly standards.

Features and Benefits:

    •Contains 2 poles with 2 solder pins per pole.

    •Touch-safe design above the printed circuit board.

    •Can be coded for flexibility in connections.

    •Used for board connections in various electronic applications.

Specifications:

 Rated voltage acc. to IEC 1000 V / 630 V
 Rated current acc. to IEC 41 A
 Pitch 7.62 mm
 Solder pin length 3.5 mm

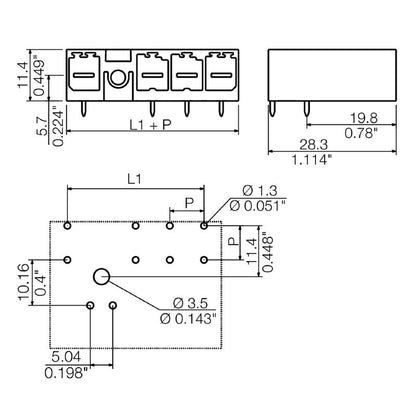

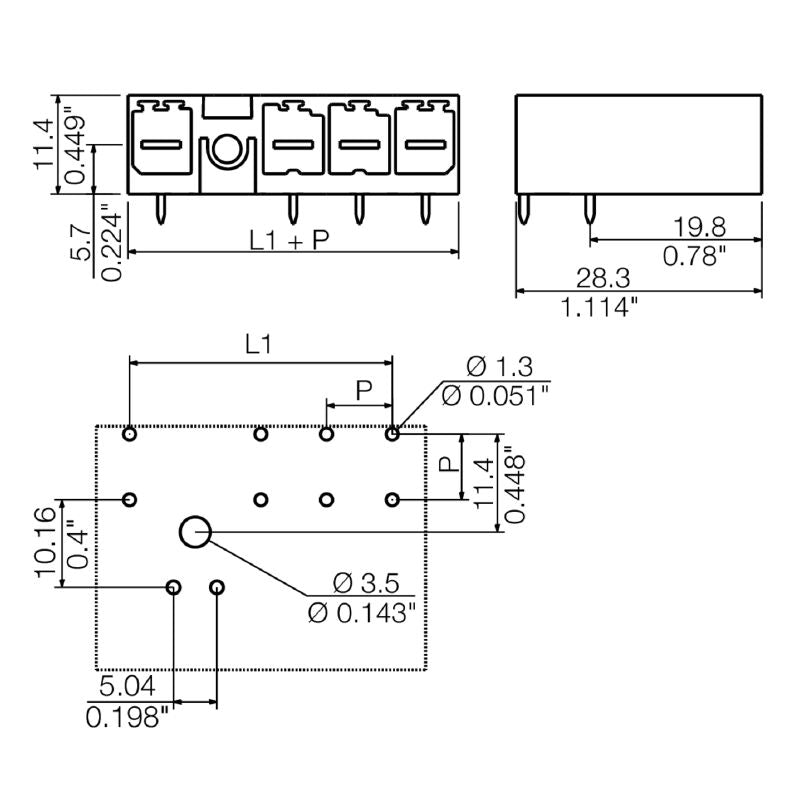

 Dimensions 28.3 mm x 22.86 mm x 14.9 mm
 Operating temperature range -50 °C to 130 °C
 Storage temperature range -40 °C to 70 °C
 Protection degree IP20
 Material PA GF
 Insulating material group II
 Comparative Tracking Index (CTI) ≥ 500
 UL flammability rating V-0
 Volume resistance 2.00 mΩ
